Denon AVR-X4500H Service Manual

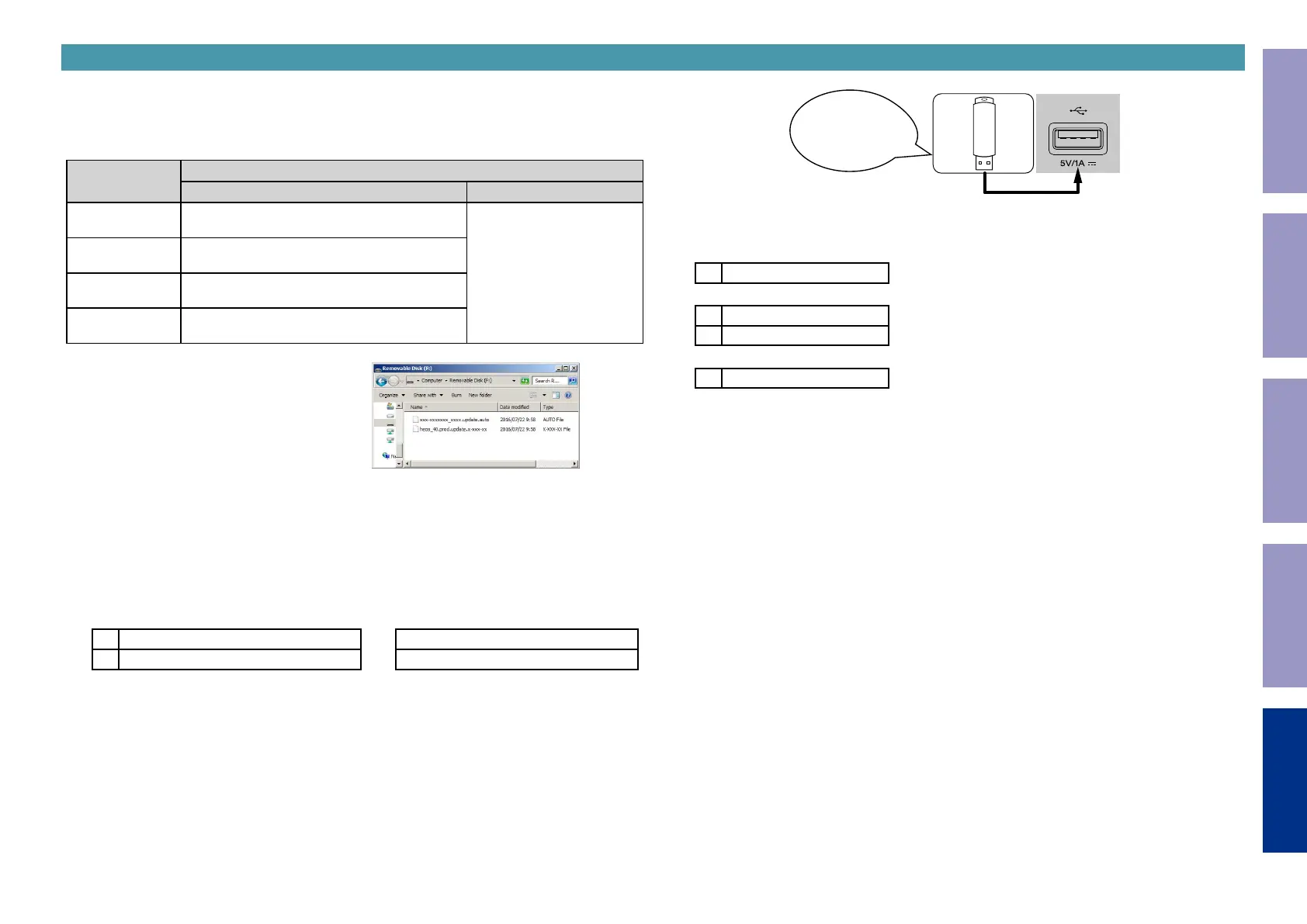

5. Normal Firmware Update Method from USB Flash Drive
5.1. File structure on USB ash drive
Copy the normal update les onto the USB ash drive in the following structure.
After unzipping the HW component USB update les for the target model and LEGO USB update les,
store them in the root of the same USB ash drive.
Model Area
Download from SDI
For HW component For LEGO component
North America (E3)
DPMS_AVR-X4500HALL_LEGO_PopupNone.zip
Product ID : 000101090100
heos_40.prod_x.xxx.xx.zip
Europe (E2)
DPMS_AVR-X4500HALL_LEGO_PopupNone.zip
Product ID : 000101090200
China (E1C)
DPMS_AVR-X4500HALL_LEGO_PopupNone.zip
Product ID : 000101090500
Japan (JP)
DPMS_AVR-X4500HALL_LEGO_PopupNone.zip
Product ID : 000101090400
USB ash drive root
+ AVR-X4500Hxx_xxxx.update.auto
+ heos_40.prod.update.x-xxx-xx
5.2. Start normal update
NOTE :
• Remove the LAN cable from this unit when updating.
(Do not connect to a wired or wireless network.)
(1) Press the power button to turn on the power.
(2) Wait for this unit to start up.
(3) Set the input source to HEOS Music.
Check that the display is as shown below.
L1
–TuneIn Internet Radio
or
No Network Connection
L2
HEOS Favorites
L1 : Content of the display is scrolled.
(4) Insert the USB ash drive into the USB port.
(5) USB Update starts automatically.
The Standby LED lights red.
Display during USB update
L1
Please wait–––––
↓
L1
Updating––– **%
L2
**min
↓
L1
Update Completed
It takes a maximum of approximately 25 minutes for update to complete.
(6) The unit restarts when update is complete.
(7) After updating the rmware, check the version.
See "1. Version Display Mode"
---Cautions on Firmware Update---
• Do not remove the USB ash drive until updating is completed.
• Do not turn off the power until updating is completed.
• It takes a maximum of approximately 25 minutes for update to complete.
Once an update is started, normal operations cannot be performed until it is completed.
The GUI menu settings and image adjustment settings of this unit may be initialized.
Note down the settings before updating, and set them again after updating.
Download firmware
in USB flash drive.
Before Servicing
This Unit
Electrical Mechanical Repair Information Updating
208

Denon AVR-X4500H Specifications

General

Display	-
Quantity	1
HDCP version	2.2
Apple docking	No
Product color	Silver
Audio decoders	DTS:X, Dolby Atmos, Dolby Surround, Dolby TrueHD
Volume control	Rotary
Audio amplifier	Yes
Multi-Zone quantity	3
Connector contacts plating	Gold
Receiver type	Surround
Frequency range	10 - 100000 Hz
Audio output channels	9.2 channels
Signal-to-Noise Ratio (SNR)	100 dB
Power output per channel (20-20KHz@8 Ohm)	125 W
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Internet radio services supported	Amazon Music, Deezer, Napster, Pandora, SIRIUS Internet Radio, Spotify, Tidal, TuneIn, iHeartRadio
HDMI in	8
Audio (L/R) in	5
Composite video in	4
Component video (YPbPr/YCbCr) in	2
Connectivity technology	Wired
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	710 W

Weight and Dimensions

Depth	389 mm
Width	434 mm
Height	167 mm
Weight	13500 g
