Denon AVR-X500

4

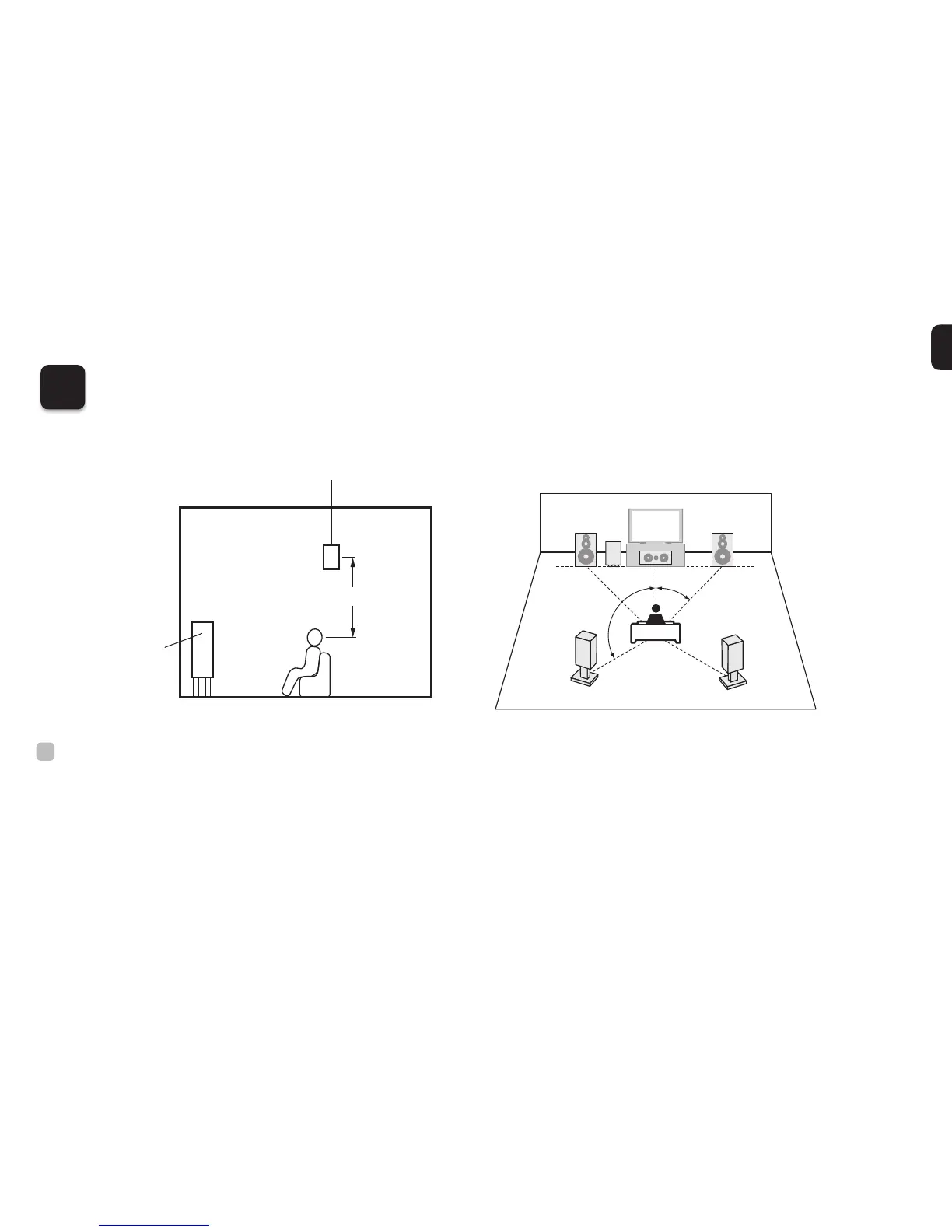

n Standard speaker installation.
Surround speaker
60 – 90 cm
GViewed from the sideH
Front speaker
%
•Use the illustration as a guide for how high each speaker
should be installed. The height does not need to be exactly the
same.
FL FR
SW
C
SL
SR
z1
z2
z1 22˚ – 30˚
z2 120˚
GSpeaker abbreviationsH
FL Front speaker (L) SW Subwoofer
FR Front speaker (R) SL Surround speaker (L)
C Center speaker SR Surround speaker (R)
1
Connecting the speakers
