Denon AVR-X540BT Service Manual

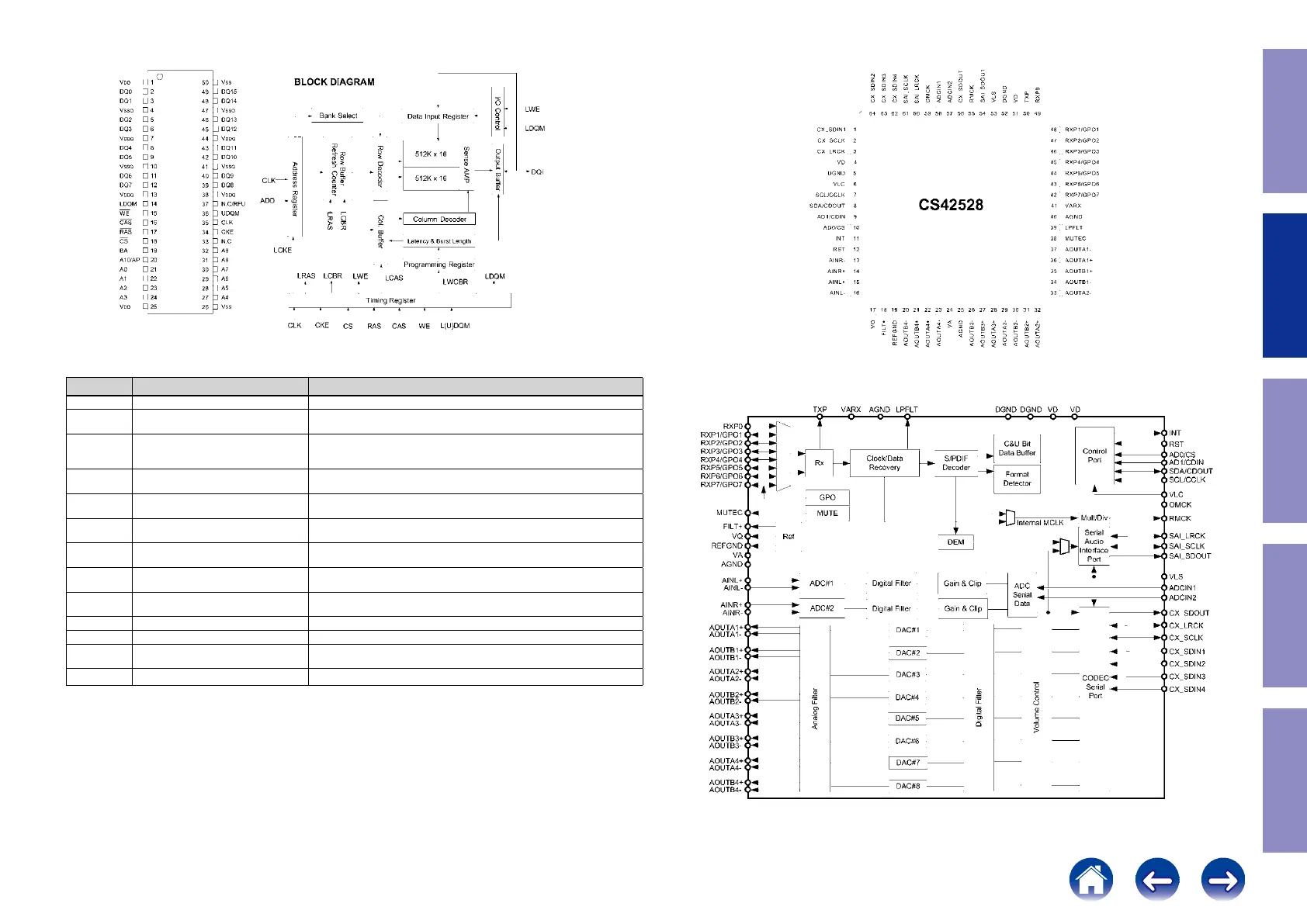

M12L16161A5TG2Q (DIGITAL : IC743)
Terminal Functions
Pin Name Input Function
CLK System Clock Active on the positive going edge to sample all inputs.
CS Chip Select
Disables or enables device operation by masking or enabling all inputs except
CLK, CKE and L(U)DQM.
CKE Clock Enable
Masks system clock to freeze operation from the next clock cycle.
CKE should be enabled at least one cycle prior to new command.
Disable input buffers for power down in standby.
A0 ~ A10/AP Address
Row / column addresses are multiplexed on the same pins.
Row address : RA0 ~ RA10, column address : CA0 ~ CA7
BA Bank Select Address
Selects bank to be activated during row address latch time. Selects bank for
read/write during column address latch time.
RAS Row Address Strobe
Latches row addresses on the positive going edge of the CLK with RAS low.
Enables row access & precharge.
CAS Column Address Strobe
Latches column addresses on the positive going edge of the CLK with CAS low.
Enables column access.
WE Write Enable
Enables write operation and row precharge. Latches data in starting from CAS ,
WE active.
L(U)DQM Data Input / Output Mask
Makes data output Hi-Z, tSHZ after the clock and masks the output.
Blocks data input when L(U)DQM active.
DQ0~15 Data Input / Output Data inputs/outputs are multiplexed on the same pins.
VDD/VSS Power Supply/Ground Power and ground for the input buffers and the core logic.
VDDQ/VSSQ Data Output Power/Ground
Isolated power supply and ground for the output buffers to provide improved
noise immunity.
N.C/RFU No Connection/ Reserved for Future Use This pin is recommended to be left No Connection on the device.
CS42528-CQ (DIGITAL : IC744)
Block diagram
39
Caution in
servicing
Electrical Mechanical Repair Information Updating

Denon AVR-X540BT Specifications

General

Channels	5.2
HDMI Inputs	5
HDMI Outputs	1
Bluetooth	Yes
4K Ultra HD Pass-through	Yes
Dolby TrueHD	Yes
DTS-HD Master Audio	Yes
Auto Speaker Calibration	No
Number of Power Amps	5
Output Power (6 ohm, 1 kHz, 0.7% 2ch Drive)	90 W
Output Power (6 ohm, 1 kHz, 10% 1ch Drive)	140 W
Composite In	2
Composite Out	1
Digital In: Optical	2
Analog In	2
Speaker Terminal: Screw	Yes
FM Tuner with RDS	Yes
3D Signal Pass-Through	Yes
Audio Return Channel	Yes
HDMI Standby Pass-Through	Yes
CEC	Yes
Auto Speaker Setup by Microphone	No
Dimensions (W x H x D)	434 x 151 x 319 mm
Weight	7.5 kg
Total Harmonic Distortion	0.08 %
Input Sensitivity/Impedance	200 mV / 47 kΩ
Signal-to-Noise Ratio	98 dB
Ethernet Port	No
Wi-Fi	No
Power Output per Channel	70W (8 ohms, 20Hz - 20kHz, 0.08% THD)
Frequency Response	10Hz - 100kHz
Supported Audio Formats	MP3, WMA, AAC
