Denon AVR-X540BT Service Manual

F1
F2
F3
F4
F6
F7
F5
F8
F10
F11
F12
F13
F14
M1
M2
M3
M4
M5
M6
M7
M12
M8
P1
P2
P4
P3
P5
P8
P13
P11
P12
P15
S4
x5
S4
x3
S4
x2
S4
x3
S13
x1
S4
x13
S10
x4
z
S1
x1
S1
x1
S1
x1
S4
x1
S11
x3
S7
x1
S8
x2
S7
x1
S1
x1
S12
x15
S4
x2
S7
x4
S6
x3
S9
x3
S9
x3

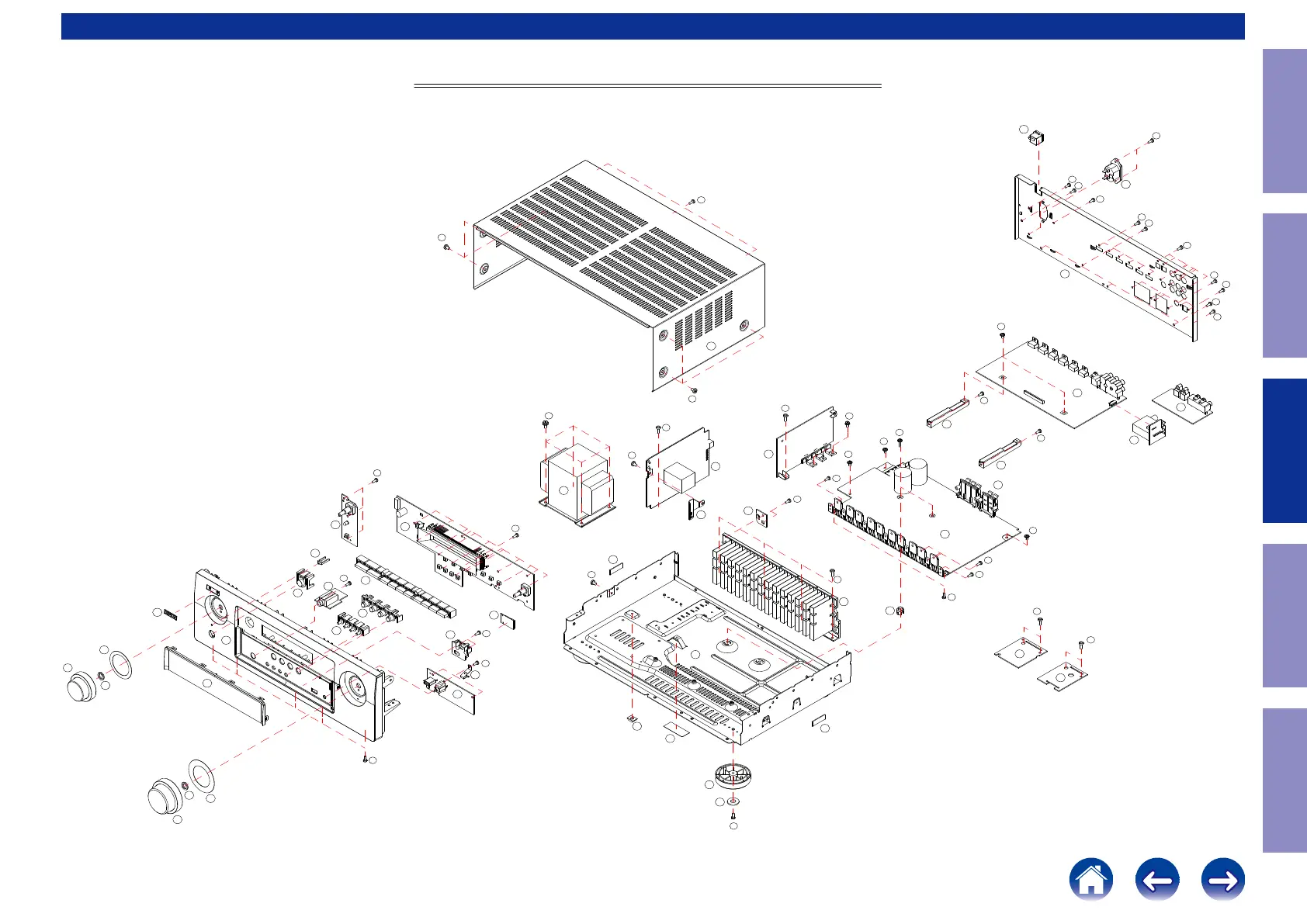

AVRS530BT/X540BT EXPLODED VIEW
S2
x2
S14
x4
S7
x1
P14
S4
x2
S4
x2
S4
x1
S4
x1
S7
x2
S1
x1
S6
x1
S6
x3
S6
x1
S3
x2
S3
x1
S3
x6
S3
x1
S3
x2
S6
x4
S6
x7
M9
M9
M10
M11
P6
P7
P8
P9
P10
F9
M13
M13
F15
F15
z
S6
x2
P16
EXPLODED VIEW
WARNING:
Parts marked with this symbol
z
have critical characteristics.
Use ONLY replacement parts recommended by the manufacturer.
Please see the last chapter for the part list.
52
Caution in
servicing
Electrical Mechanical Repair Information Updating

Denon AVR-X540BT Specifications

General

Channels	5.2
HDMI Inputs	5
HDMI Outputs	1
Bluetooth	Yes
4K Ultra HD Pass-through	Yes
Dolby TrueHD	Yes
DTS-HD Master Audio	Yes
Auto Speaker Calibration	No
Number of Power Amps	5
Output Power (6 ohm, 1 kHz, 0.7% 2ch Drive)	90 W
Output Power (6 ohm, 1 kHz, 10% 1ch Drive)	140 W
Composite In	2
Composite Out	1
Digital In: Optical	2
Analog In	2
Speaker Terminal: Screw	Yes
FM Tuner with RDS	Yes
3D Signal Pass-Through	Yes
Audio Return Channel	Yes
HDMI Standby Pass-Through	Yes
CEC	Yes
Auto Speaker Setup by Microphone	No
Dimensions (W x H x D)	434 x 151 x 319 mm
Weight	7.5 kg
Total Harmonic Distortion	0.08 %
Input Sensitivity/Impedance	200 mV / 47 kΩ
Signal-to-Noise Ratio	98 dB
Ethernet Port	No
Wi-Fi	No
Power Output per Channel	70W (8 ohms, 20Hz - 20kHz, 0.08% THD)
Frequency Response	10Hz - 100kHz
Supported Audio Formats	MP3, WMA, AAC
