Denon DCD-3520 - Detailed Adjustment Procedures; Adjustment Setup and Component Locations

ARENA es a.

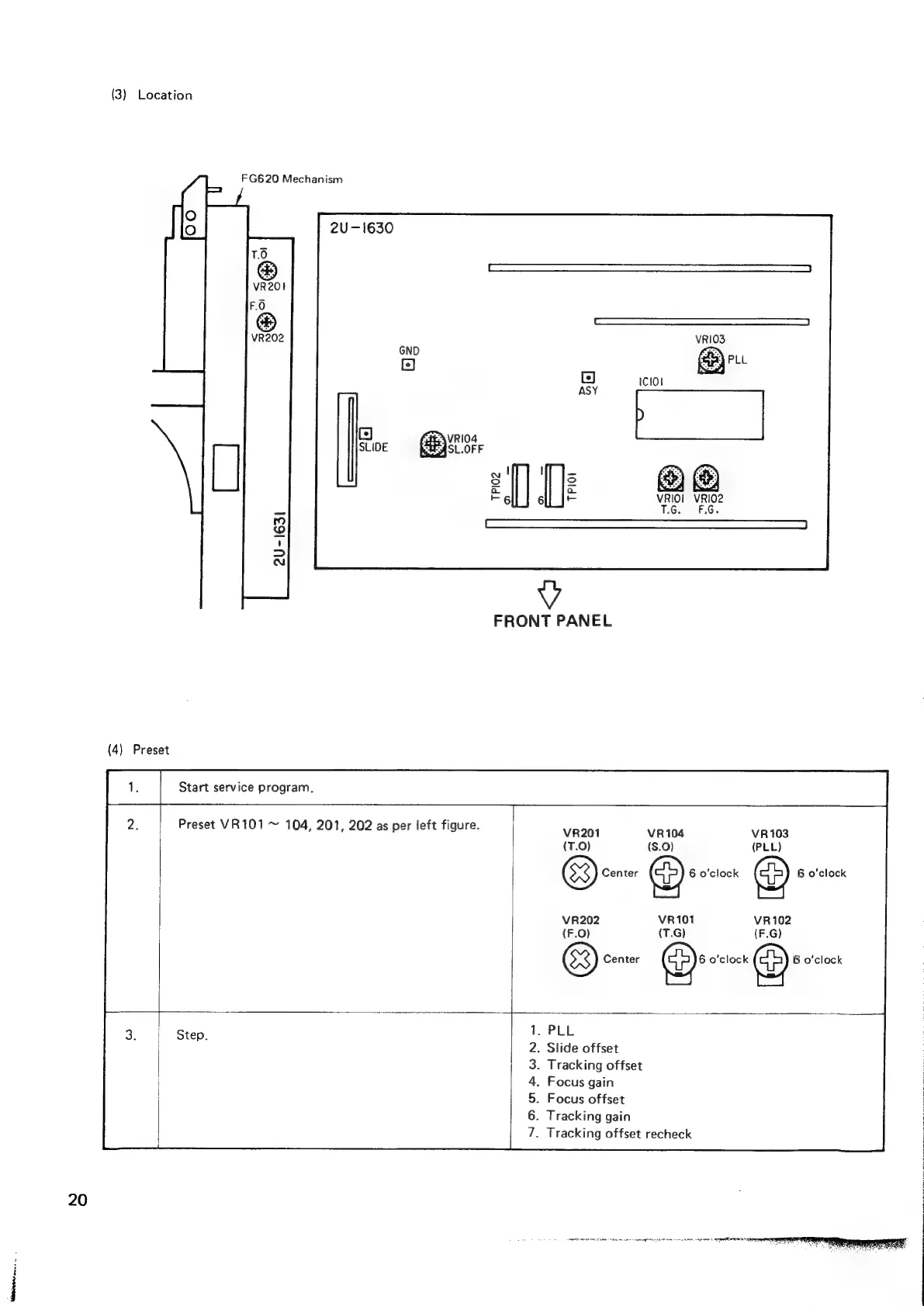

(3) Location
FG620 Mechanism
2U-1630
io) ;
Foe | LS,
FRONT PANEL
(4) Preset
Start service program.
Preset VR101 ~ 104, 201, 202 as per left figure. vR201 VR104 VR103
(T.O) (S.O) (PLL)
&) Center @) 6 o'clock @ 6 o'clock
VR202 VR101 VR102
(F.O) (T.G) (F.G)
®) Center @: o'clock @) 6 o'clock
. PLL
. Slide offset
. Tracking offset
. Focus gain
. Focus offset
. Tracking gain
. Tracking offset recheck
20
