Denon DCD-810 - Remote Control Operation; Battery Installation; Operating Directions; Installation Environment

10

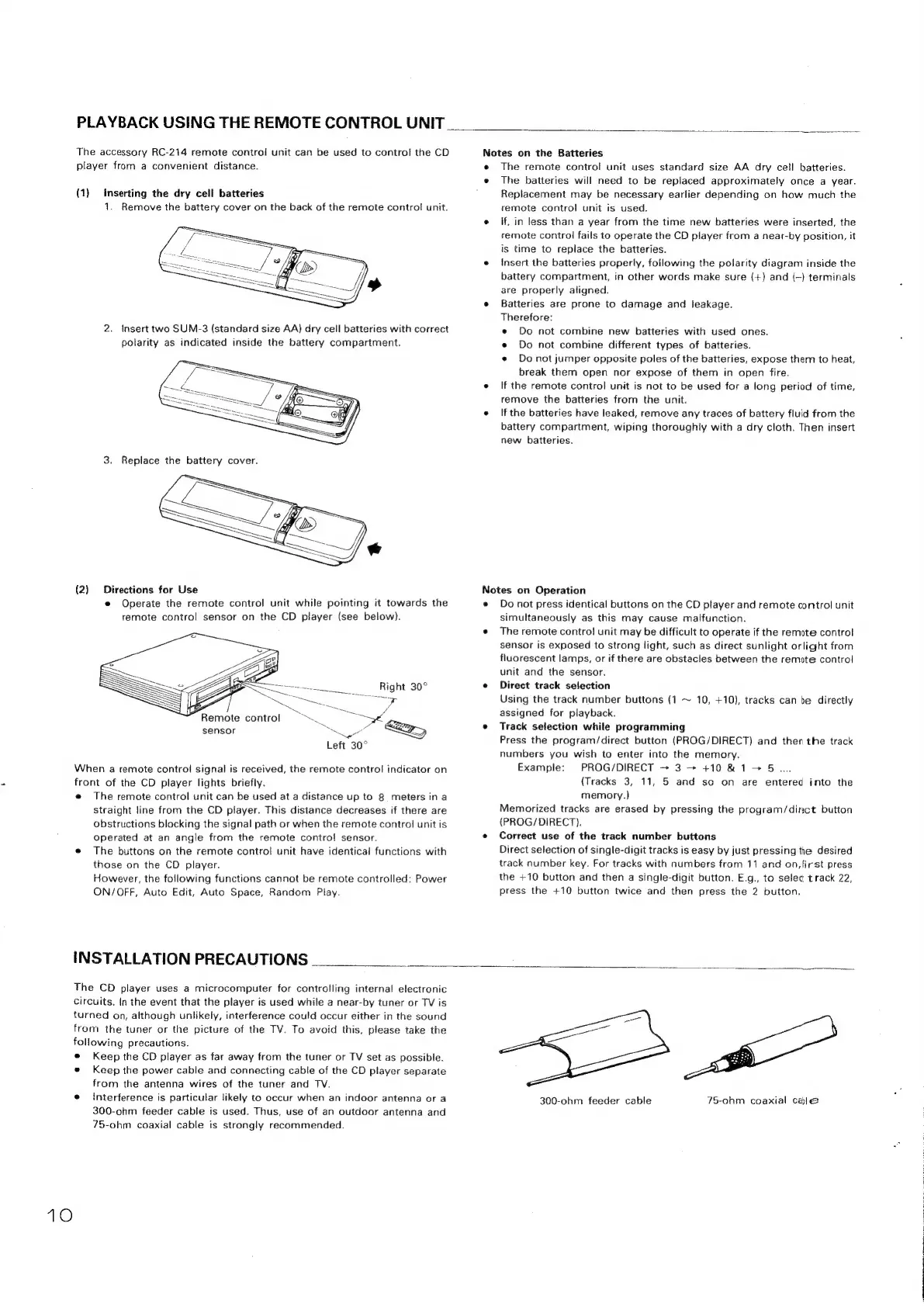

PLAYBACK USING THE REMOTE CONTROL UNIT
The accessory RC-214 remote control unit can be used to contro! the CD
player from a convenient distance.
(1) inserting the dry cell batteries
1. Remove the battery cover on the back of the remote control unit.
2. Insert two SUM-3 (standard size AA) dry cell batteries with correct
polarity as indicated inside the battery compartment.
(2) Directions for Use
e Operate the remote control unit while pointing it towards the
remote control sensor on the CD player (see below).
sensor
When a remote control signal is received, the remote control indicator on
front of the CD player lights briefly.
e The remote control unit can be used at a distance up to 8 meters ina
straight line from the CD player. This distance decreases if there are
obstructions blocking the signal path or when the remote control unit is
operated at an angle from the remote contro! sensor.
© The buttons on the remote control unit have identical functions with
those on the CD player.
However, the following functions cannot be remote controlled: Power
ON/OFF, Auto Edit, Auto Space, Random Play.
INSTALLATION PRECAUTIONS
Notes on the Batteries
The remote control unit uses standard size AA dry cell batteries.
The batteries will need to be replaced approximately once a year.
Replacement may be necessary earlier depending on how much the
remote control unit is used.
if, in less than a year from the time new batteries were inserted, the
remote control fails to operate the CD player from a near-by position, it
is time to replace the batteries.
insert the batteries properly, following the polarity diagram inside the
battery compartment, in other words make sure (+) and (-) terminals
are properly aligned.
Batteries are prone to damage and leakage.
Therefore:
e Do not combine new batteries with used ones.
e Do not combine different types of batteries.
e Do not jumper opposite poles of the batteries, expose them to heat,
break them open nor expose of them in open fire.
If the remote control unit is not to be used for a long period of time,
remove the batteries from the unit.
If the batteries have leaked, remove any traces of battery fluid from the
battery compartment, wiping thoroughly with a dry cloth. Then insert
new batteries.
Notes on Operation
Do not press identical buttons on the CD player and remote control unit
simultaneously as this may cause malfunction.
The remote control unit may be difficult to operate if the remote control
sensor is exposed to strong light, such as direct sunlight orlight from
fluorescent lamps, or if there are obstacles between the remote control
unit and the sensor.
Direct track selection
Using the track number buttons (1 ~ 10, +10), tracks can be directly
assigned for playback.
Track selection while programming
Press the program/direct button (PROG/DIRECT) and then the track
numbers you wish to enter into the memory.
Example: PROG/DIRECT + 3+ +10&1-—> 5...
(Tracks 3, 11, 5 and so on are entered into the
memory.)
Memorized tracks are erased by pressing the program/dinct button
(PROG/DIRECT).
Correct use of the track number buttons
Direct selection of single-digit tracks is easy by just pressing the desired
track number key. For tracks with numbers from 11 and on,first press
the +10 button and then a single-digit button. E.g., to selec track 22,
press the +10 button twice and then press the 2 button.
The CD player uses a microcomputer for controlling internal electronic
circuits, In the event that the player is used while a near-by tuner or TV is
turned on, although unlikely, interference could occur either in the sound
from the tuner or the picture of the TV. To avoid this, please take the
following precautions.
e Keep the CD player as far away from the tuner or TV set as possible.
© Keep the power cable and connecting cable of the CD player separate
from the antenna wires of the tuner and TV.
e interference is particular likely to occur when an indoor antenna or a
300-ohm feeder cable is used. Thus, use of an outdoor antenna and
75-ohm coaxial cable is strongly recommended.
75-ohm coaxial cale
300-ohm feeder cable
