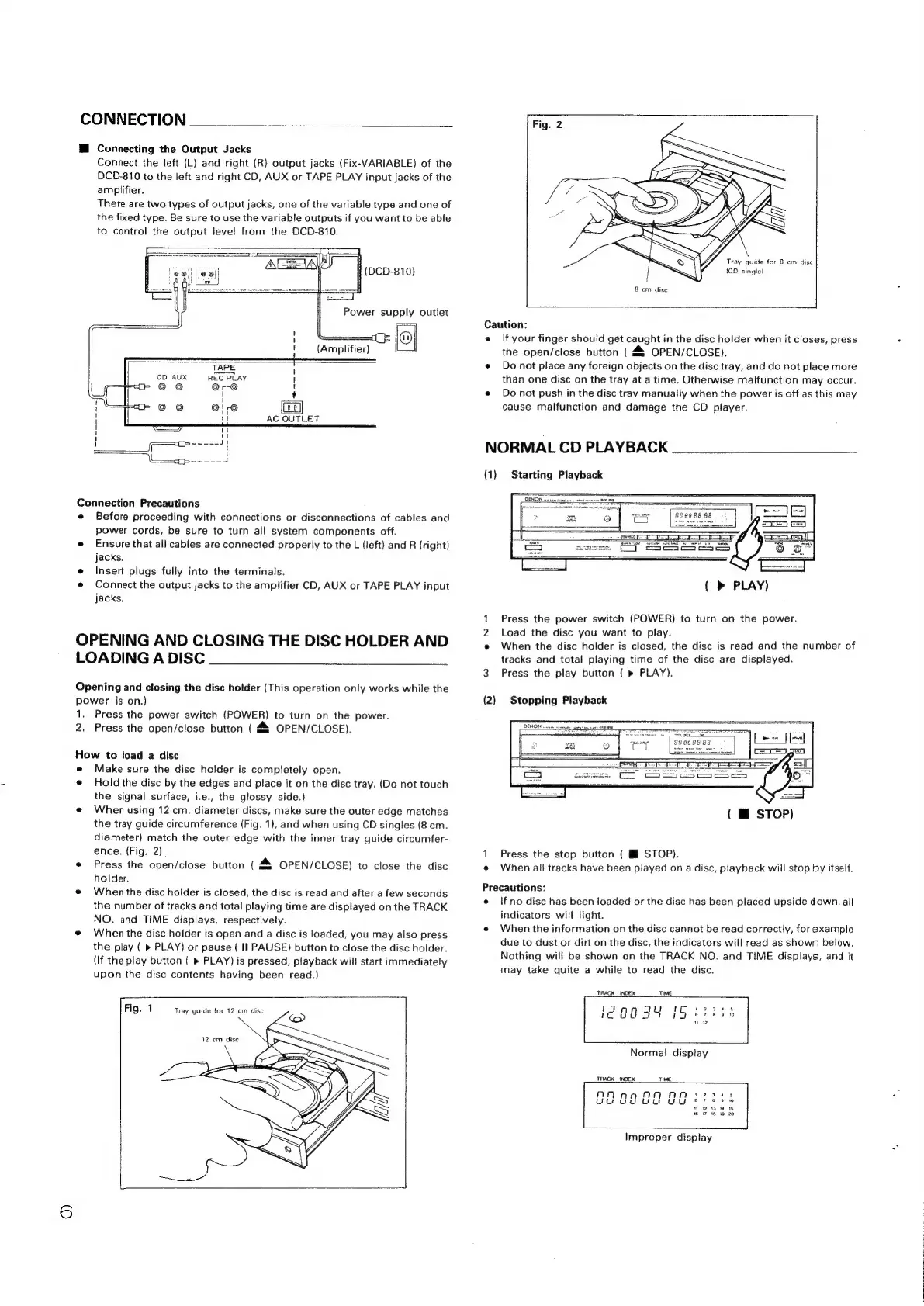

CONNECTION
@ Connecting the Output Jacks
Connect the left (L) and right (R) output jacks (Fix-VARIABLE) of the
DCD-810 to the left and right CD, AUX or TAPE PLAY input jacks of the
amplifier.
There are two types of output jacks, one of the variable type and one of
the fixed type. Be sure to use the variable outputs if you want to be able
to control the output level from the OCD-810.
Tesi (DCD-810)
Power supply outlet
TAPE
CD AUX REC PLAY
Connection Precautions
e Before proceeding with connections or disconnections of cables and
power cords, be sure to turn all system components off.
e Ensure that all cables are connected properly to the L (left) and R (right)
jacks.
e Insert plugs fully into the terminals.
e Connect the output jacks to the amplifier CD, AUX or TAPE PLAY input
jacks,
OPENING AND CLOSING THE DISC HOLDER AND
LOADING A DISC
Opening and closing the disc holder (This operation only works while the
power is on.)
1. Press the power switch (POWER) to turn on the power.
2. Press the open/close button ( 44 OPEN/CLOSE).
How to load a disc
e Make sure the disc holder is completely open.
e Hold the disc by the edges and place it on the disc tray. (Do not touch
the signal surface, i.e., the glossy side.)
e When using 12 cm. diameter discs, make sure the outer edge matches
the tray guide circumference (Fig. 1), and when using CD singles (8 cm.
diameter) match the outer edge with the inner tray guide circumfer-
ence. (Fig. 2)
¢ Press the open/close button (4 OPEN/CLOSE) to close the disc
holder.
e When the disc holder is closed, the disc is read and after a few seconds
the number of tracks and total playing time are displayed on the TRACK
NO. and TIME displays, respectively.
e When the disc holder is open and a disc is loaded, you may also press
the play ( » PLAY) or pause ( II PAUSE) button to close the disc holder.
(If the play button ( » PLAY) is pressed, playback will start immediately
upon the disc contents having been read.)
[Fig. 1 Tray guide for 12 cm disc
a
12 cm disc
Tray guide for 8 cm disc
{CD single}
Caution:
e If your finger should get caught in the disc holder when it closes, press
the open/close button ( PY OPEN/CLOSE).
e Do not place any foreign objects on the disc tray, and do not place more
than one disc on the tray at a time. Otherwise malfunction may occur.
e Do not push in the disc tray manually when the power is off as this may
cause malfunction and damage the CD player.
NORMAL CD PLAYBACK
(1) Starting Playback
( >» PLAY)
1 Press the power switch (POWER) to turn on the power.
2 Load the disc you want to play.
When the disc holder is closed, the disc is read and the number of
tracks and total playing time of the disc are displayed.
3 Press the play button ( » PLAY).
(2) Stopping Playback
( Mf STOP)
1 Press the stop button ( M STOP).
e When all tracks have been played on a disc, playback will stop by itself.
Precautions:
e Ifno disc has been loaded or the disc has been placed upside down, all
indicators will light.
e When the information on the disc cannot be read correctly, for example
due to dust or dirt on the disc, the indicators will read as shown below.
Nothing will be shown on the TRACK NO. and TIME displays, and it
may take quite a while to read the disc.
Normal display
TRACK INDEX TIME,
n anAan:
ud oa vd uu ®
Improper display
