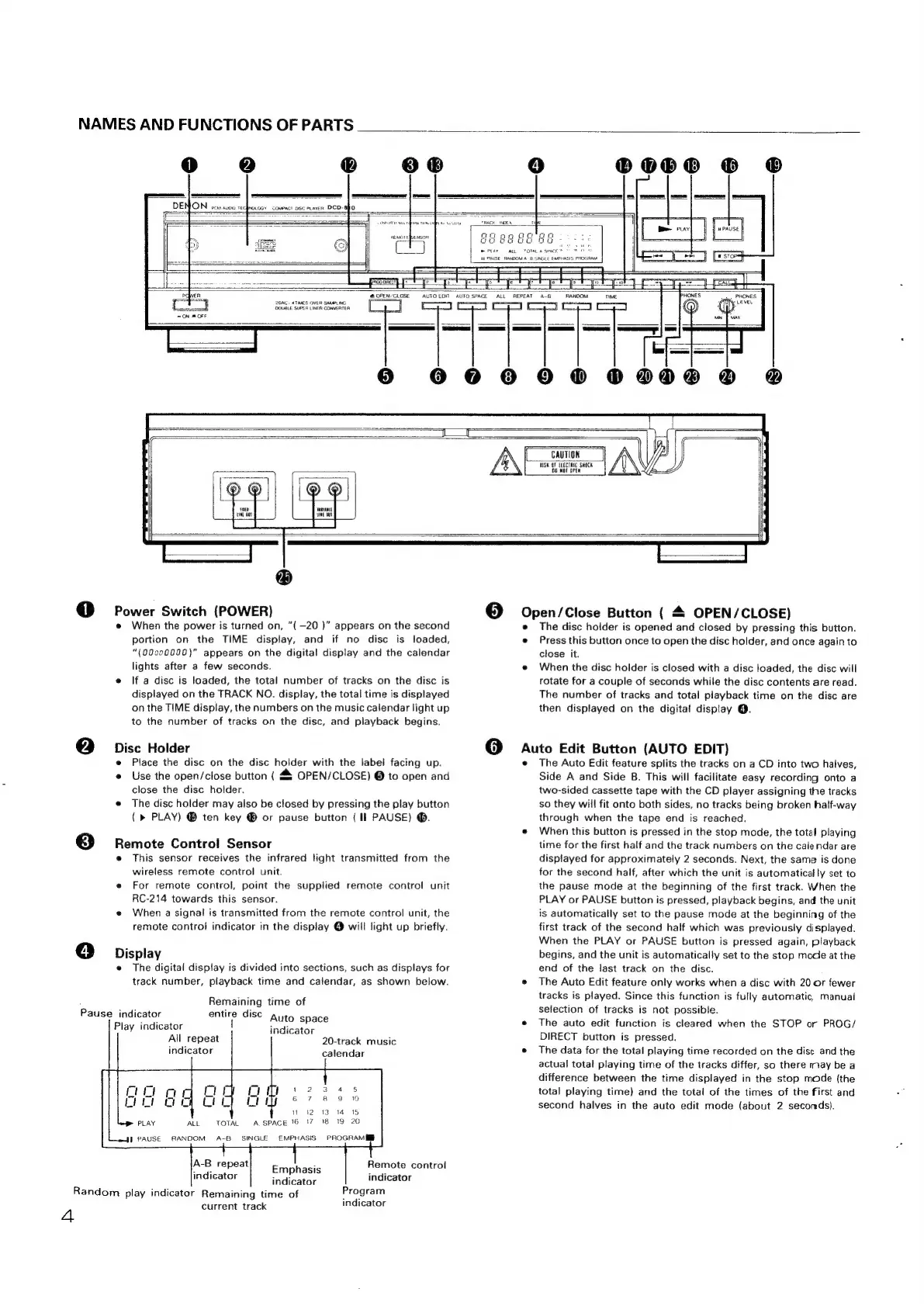

NAMES AND FUNCTIONS OF PARTS
4)
Pause indicator
| Play indicator
attag
aa gn
éeeeag sg
TOTAL A SPACE,
> tay
a
OAC. TIMES OVER SAMPLING
DOUBLE SUPER LINER CONVERTER
CAUTION /
RISK GF ELECTRIC SHOCK
OG WOT OPEN
Power Switch (POWER)
When the power is turned on, “(-20 )” appears on the second
portion on the TIME display, and if no disc is loaded,
“(00300000)” appears on the digital display and the calendar
lights after a few seconds.
lf a disc is loaded, the total number of tracks on the disc is
displayed on the TRACK NO. display, the total time is displayed
on the TIME display, the numbers on the music calendar light up
to the number of tracks on the disc, and playback begins.
Disc Holder
Place the disc on the disc holder with the label facing up.
Use the open/close button ( & OPEN/CLOSE) @ to open and
close the disc holder.
The disc holder may also be closed by pressing the play button
(» PLAY) @® ten key @® or pause button {If PAUSE) ®.
Remote Control Sensor
This sensor receives the infrared light transmitted from the
wireless remote control unit.
For remote control, point the supplied remote control unit
RC-214 towards this sensor.
When a signal is transmitted from the remote control unit, the
remote controi indicator in the display @ will light up briefly.
Display
The digital display is divided into sections, such as displays for
track number, playback time and calendar, as shown below.
Remaining time of
ene disc puto space
indicator
All repeat
indicator
20-track music
calendar
5
1G
3
B
4
9
14 15
19 20
"1 42° «13
A. SPACE 16 17 18
PLAY
ALL TOTAL
RANDOM SINGLE EMPHASIS PROGRAMME
A-B
§ PAUSE
Remote control
indicator indicator indicator
Random
play
indicator
Remaining
time
of
Program
indicator
4
current track
pen less Button ( &
OPEN/CLOSE)
The disc holder is opened and closed by pressing this button.
Press this button once to open the disc holder, and once again to
close it.
When the disc holder is closed with a disc loaded, the disc will
rotate for a couple of seconds while the disc contents are read.
The number of tracks and total playback time on the disc are
then displayed on the digital display @.
jg Edit Button (AUTO EDIT)
The Auto Edit feature splits the tracks on a CD into two halves,
Side A and Side B. This will facilitate easy recording onto a
two-sided cassette tape with the CD player assigning the tracks
so they will fit onto both sides, no tracks being broken half-way
through when the tape end is reached.
When this button is pressed in the stop mode, the total playing
time for the first half and the track numbers on the calendar are
displayed for approximately 2 seconds. Next, the same is done
for the second half, after which the unit is automatically set to
the pause mode at the beginning of the first track. When the
PLAY or PAUSE button is pressed, playback begins, and the unit
is automatically set to the pause mode at the beginning of the
first track of the second half which was previously displayed.
When the PLAY or PAUSE button is pressed again, playback
begins, and the unit is automatically set to the stop mode at the
end of the last track on the disc.
The Auto Edit feature only works when a disc with 20 or fewer
tracks is played. Since this function is fully automatic, manual
selection of tracks is not possible.
The auto edit function is cleared when the STOP or PROG/
DIRECT button is pressed.
The data for the total playing time recorded on the disc and the
actual total playing time of the tracks differ, so there may be a
difference between the time displayed in the stop mode (the
total playing time) and the total of the times of the first and
second halves in the auto edit mode (about 2 seconds).
