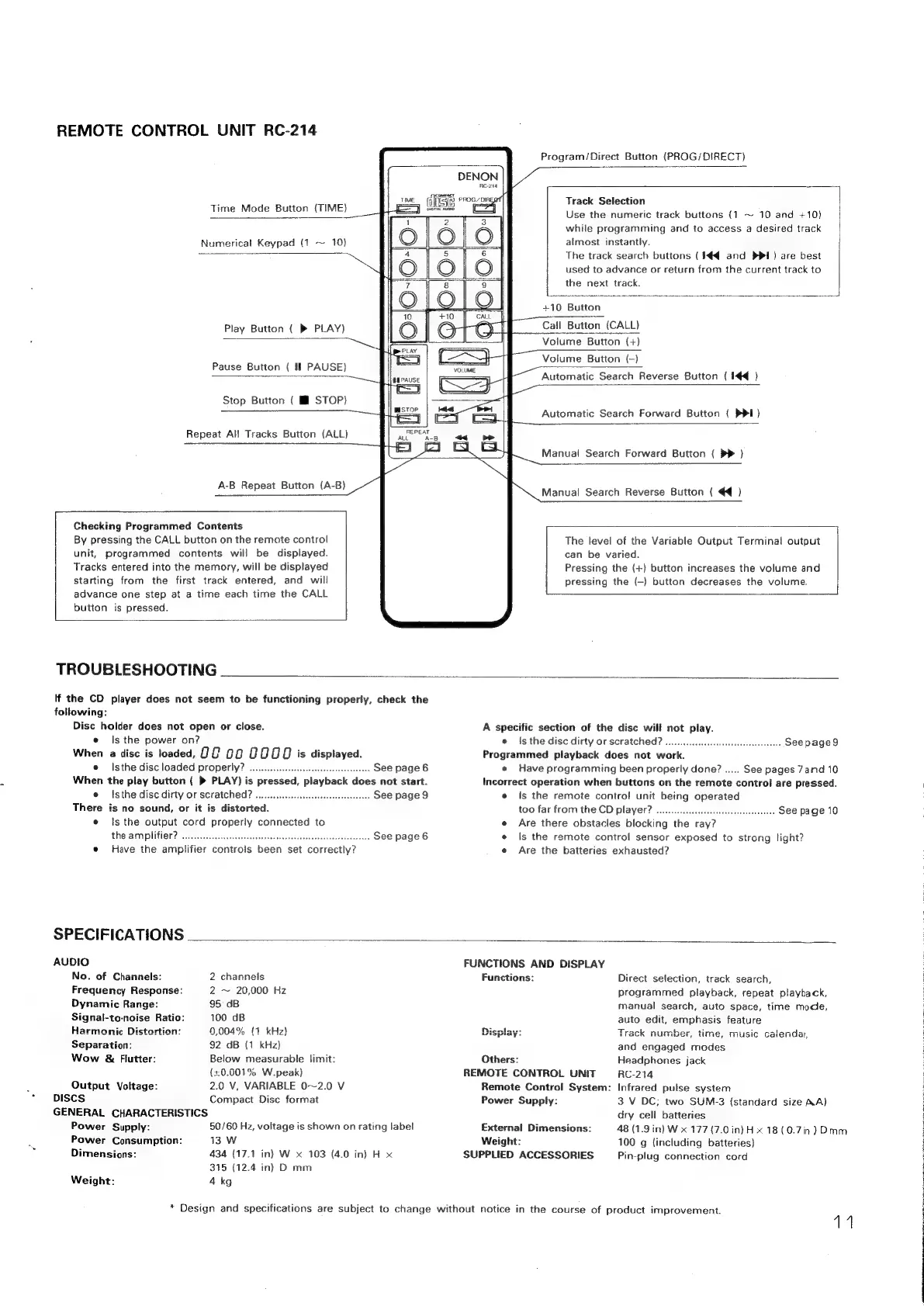

REMOTE CONTROL UNIT RC-214
Time Mode Button (TIME)
Numerical Keypad (1 ~ 10)
Play Button ( » PLAY}
Pause Button ( If PAUSE)
Stop Button ( Hl STOP)
| a DENON
Program/Direct Button (PROG/DIRECT)
Track Selection
Use the numeric track buttons (1 ~ 10 and +10)
while programming and to access a desired track
almost instantly.
The track search buttons (144 and DPI) are best
used to advance or return from the current track to
the next track.
+10 Button
Call Button (CALL)
Volume Button (+)
Volume Button (—)
Automatic Search Reverse Button ( Iq )
Automatic Search Forward Button ( Pi)
Repeat All Tracks Button (ALL)
A-B Repeat Button (A-B)
Checking Programmed Contents
By pressing the CALL button on the remote control
unit, programmed contents will be displayed.
Tracks entered into the memory, will be displayed
starting from the first track entered, and will
advance one step at a time each time the CALL
button is pressed.
TROUBLESHOOTING
lf the CD player does not seem to be functioning properly, check the
following:
Disc holder does not open or close.
e Is the power on?
When a disc is loaded, 00 00 OOUQ is displayed.
e =Isthe disc loaded properly? oo... eee seceeeeeereeeees See page 6
When the play button ( >» PLAY) is pressed, playback does not start.
« Isthe disc dirty or scratched? 0... ee eeeteeeeecreeeeenes See page 9
There is no sound, or it is distorted.
e ts the output cord properly connected to
the amplifier? 2 sccccnaihigene gainers See page 6
e Have the amplifier controls been set correctly?
Manual Search Forward Button ( PP }
Manual Search Reverse Button ( 44 )
The level of the Variable Output Terminal output
can be varied.
Pressing the (4-) button increases the volume and
pressing the (-) button decreases the volume.
A specific section of the disc will not play.
e isthe disc dirty or scratched? oo... cccccecesecsseceseeeeeee See page9
Programmed playback does not work.
e Have programming been properly done? ..... See pages 7and 10
Incorrect operation when buttons on the remote control are pressed.
e ls the remote control unit being operated
too far from the CD player? ...........
e Are there obstacles blocking the ray?
« Is the remote control sensor exposed to strong light?
e Are the batteries exhausted?
See page 10
SPECIFICATIONS
AUDIO FUNCTIONS AND DISPLAY
No. of Channels: 2 channels Functions: Direct selection, track search,
Frequency
Response:
2
~
20,000
Hz
programmed
playback,
repeat
playback,
Dynamic
Range:
95
dB
manual
search,
auto
space,
time
mode,
Signal-to-noise
Ratio:
100
dB
auto
edit,
emphasis
feature
Harmonic
Distortion:
0,004%
(1
kHz}
Display:
Track
number,
time,
music
calendar,
Separation:
92
dB
(1
kHz)
and
engaged
modes
Wow & Flutter: Below measurable limit: Others: Headphones jack
{+0.001% W.peak)
Output Voltage: 2.0 V, VARIABLE 0~2.0 V
DISCS Compact Disc format
GENERAL CHARACTERISTICS
Power Supply: 50/60 Hz, voltage is shown on rating label
Power Consumption: 13 W
Dimensions: 434 (17.1 in) W x 103 (4.0 in) H x
315 (12.4 in) D mm
Weight: 4 kg
* Design and specifications are subject to change
REMOTE CONTROL UNIT RC-214
Remote Control System: Infrared pulse system
Power Supply: 3 V DC; two SUM-3 (standard size AA)
dry cell batteries
48 (1.9in) W x 177 (7.0 in} H x 18(0.7in } Omm
100 g {including batteries)
Pin-plug connection cord
External Dimensions:
Weight:
SUPPLIED ACCESSORIES
