Denon DN-C615 - Mechanism Unit Removal (Power Off)

4
4
DN-C615
3. MECHANISM UNIT
3.1. How to remove a mechanism unit in case a power supply is not turned on.

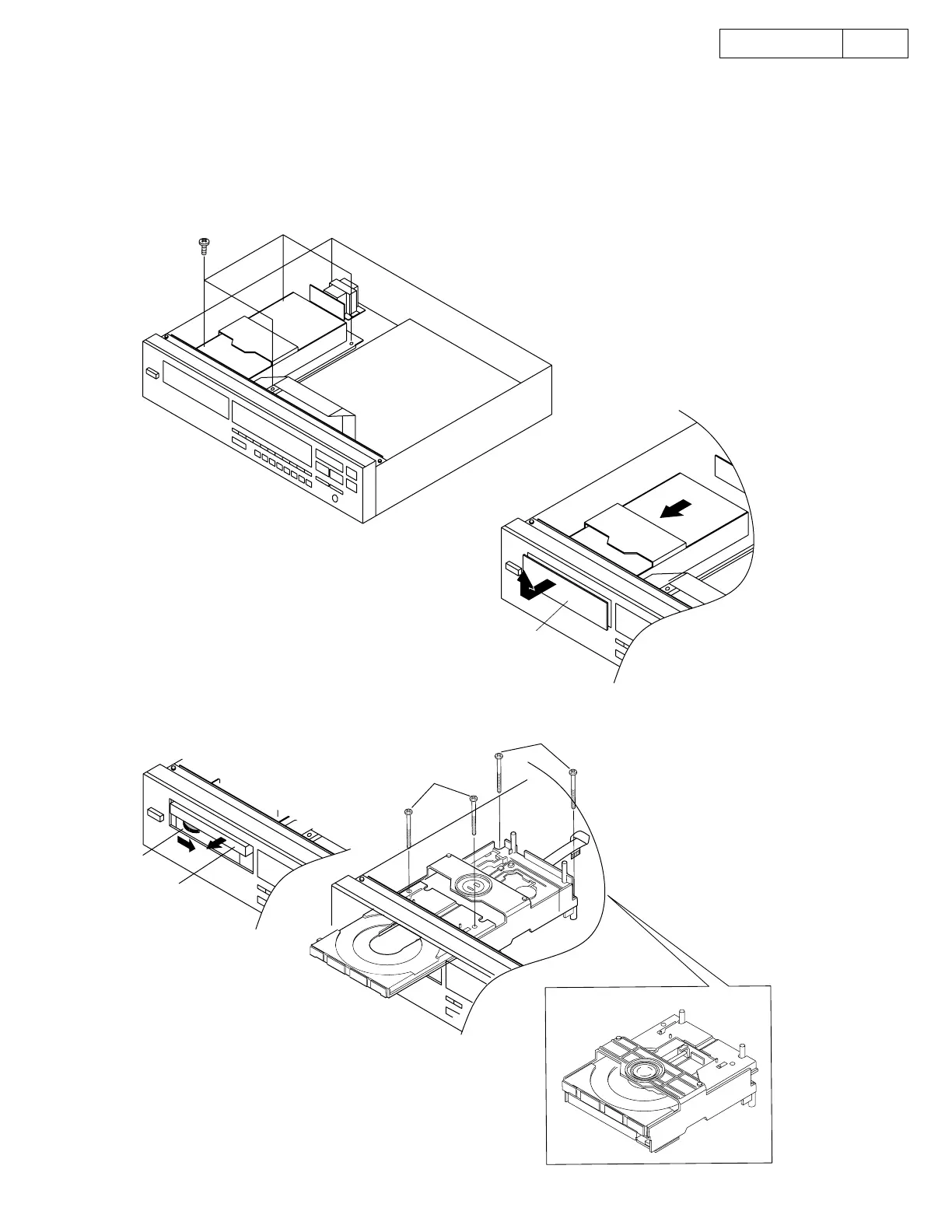

(1) Remove 4 screws on the Mecha base.
(2) Remove the CD Mecha to the arrow direction.
(3) Detach the Loader panel to the arrow direction.
(4) A gear is turned and a tray is turned in the direction of an arrow.
(5) A tray is pinched and it turns in the direction of an arrow.
(6) Remove 4 screws on the Mechanism unit
Loader panel
Gear
Tray
Screw
Screw
