Denon DN-C615 - System Block Diagram

9
9
DN-C615

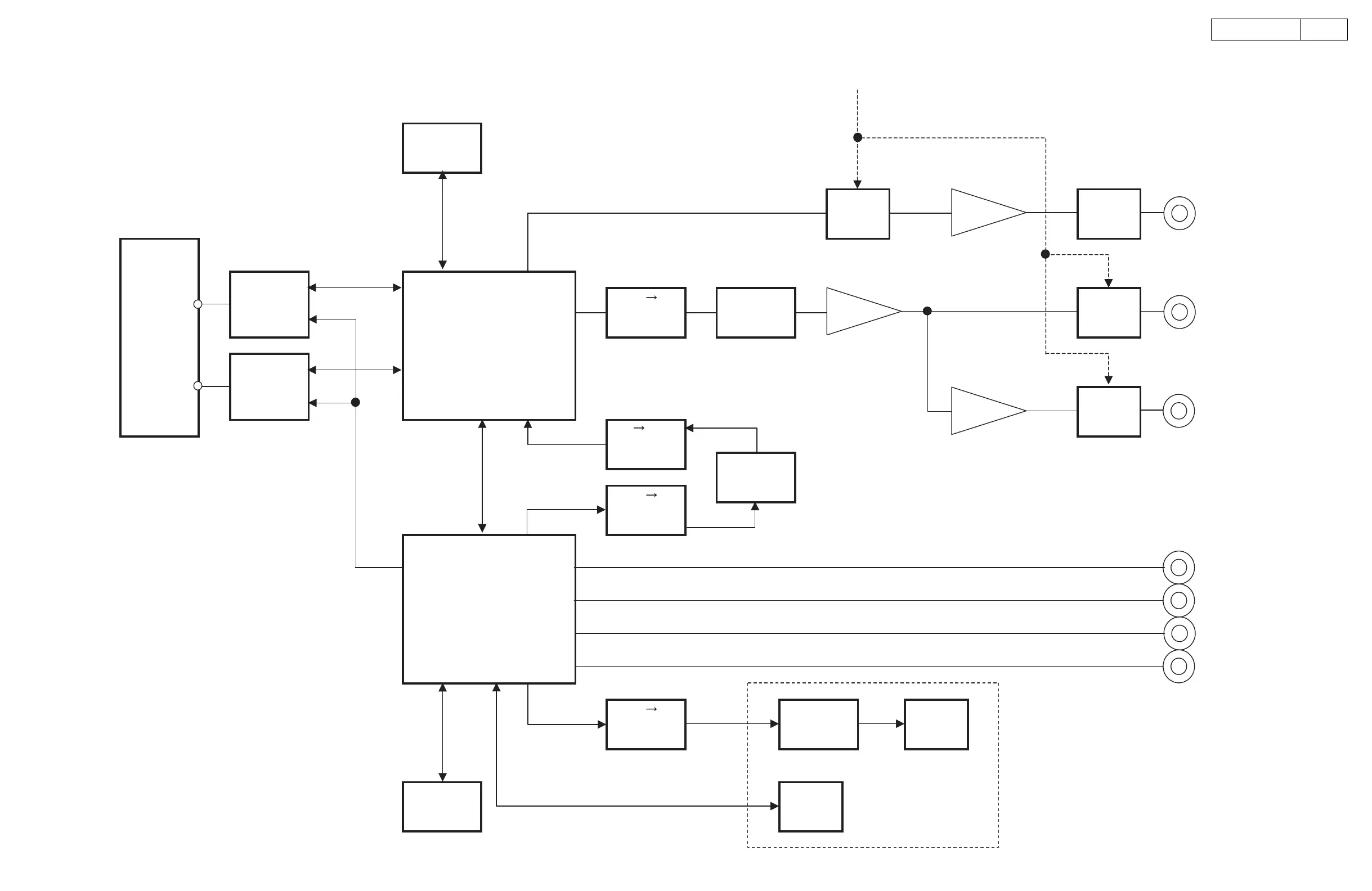

BLOCK DIAGRAM
SN74LV244
3.3V
5V
I/F
TC74HCT7007
4M FLASH
ROM
KEY
FLD
DRIVER
M66005FP
3.3V
5V
I/F
TC74HCT7007
16M DRAM
P. TRANS
MUTE
FLD
CLOCK GEN
SYSTEM uCOM
MN102H60KDA
3.3V
5V
I/F
TC74HCT7007
5V 3.3V
I/F
MUTE
MUTE
DSP
MN662791
AN22002A
DAC
PCM1716E
CD MECHA
MOTOR
ACTUATOR
P.U
DRIVER
AN8785SB
HEAD AMP
<CD MUTE>
WIRED
REMOTE
IN
RC5
OUT
EXT
H/P OUT
CD OUT
DIGITAL
OUT
