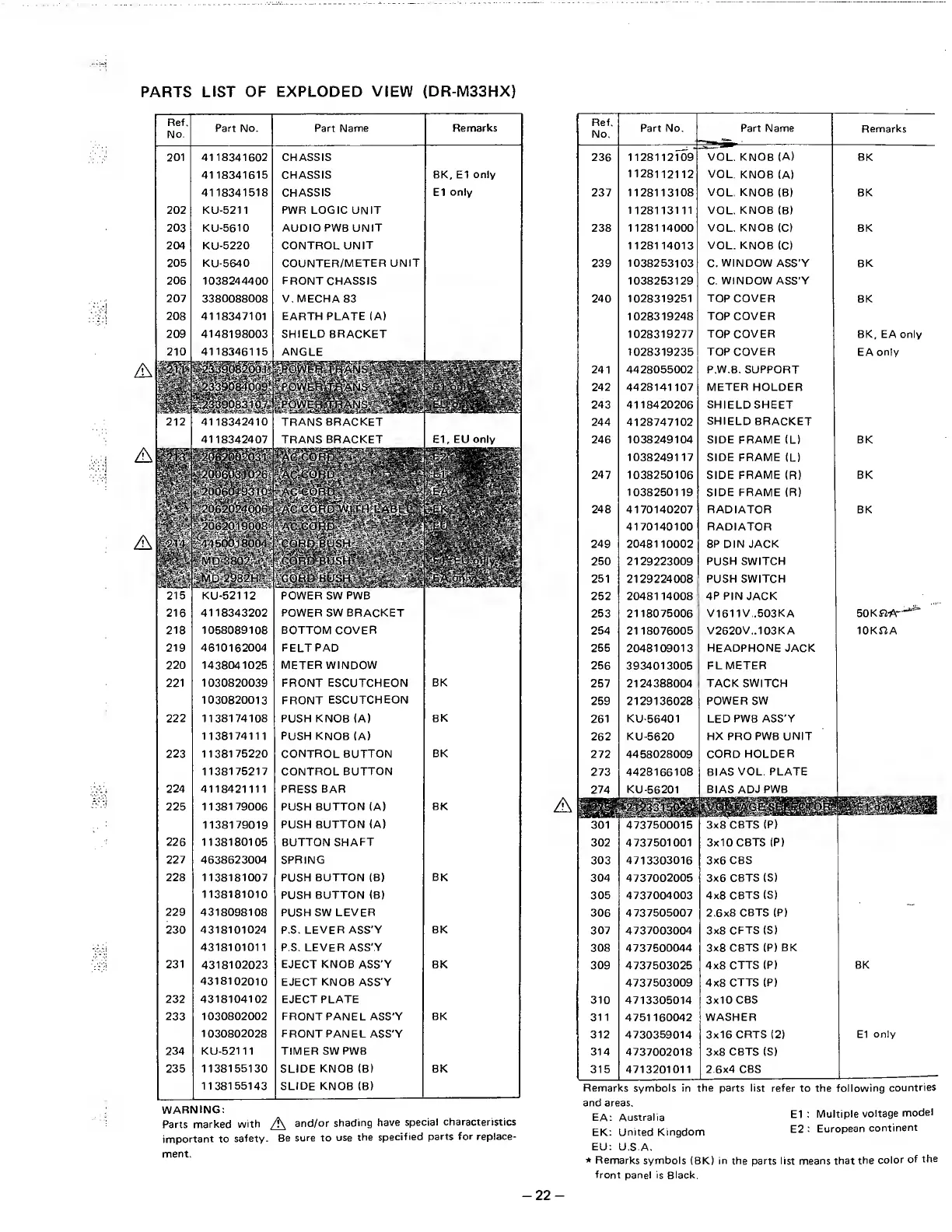

PARTS LIST OF EXPLODED VIEW (DR-M33HX)
Ref.
No.
Part No. Part Name
Remarks
201 4118341602 CHASSIS
4118341615 CHASSIS
BK, El only
4118341518 CHASSIS
El only
202 KU-5211 PWR LOGIC UNIT
203
KU-5610 AUDIO PWB UNIT
204 KU-5220 CONTROL UNIT
205 KU-5640 COUNTER/METER UNIT
206 1038244400 FRONT CHASSIS
207
3380088008 V. MECHA 83
208 4118347101
EARTH PLATE (A)
209 4148198003 SHIELD BRACKET
210 4118346115
ANGLE
H
: i/.
212 4118342410 TRANS BRACKET
4118342407 TRANS BRACKET El, EU only
^ 20D^^3ir026.
2062p.19u08
•^ ■ ?4,50of^®''
ilM.D'2982H^ '
; / ’V,''
rrt l‘«belX!
215
KU-52112 POWER SW PWB
216
4118343202 POWER SW BRACKET
218 1058089108 BOTTOM COVER
219
4610162004
FELT PAD
220 1438041025 METER WINDOW
221 1030820039 FRONT ESCUTCHEON
BK
1030820013
FRONT ESCUTCHEON
222 1138174108
PUSH KNOB (A)
BK
1138174111
PUSH KNOB (A)
223
1138175220
CONTROL BUTTON
BK
1138175217
CONTROL BUTTON
224
4118421111
PRESS BAR
225
1138179006
PUSH BUTTON(A)
BK
1138179019
PUSH BUTTON (A)
226 1138180105 BUTTON SHAFT
227
4638623004 SPRING
228 1138181007
PUSH BUTTON (B)
BK
1138181010
PUSH BUTTON (B)
229
4318098108 PUSH SW LEVER
230
4318101024
P.S, LEVER ASS'Y
BK
4318101011
P.S. lever ASS'Y
231
4318102023
EJECT KNOB ASS'Y BK
4318102010 EJECT KNOB ASS'Y
232 4318104102 EJECT PLATE
233
1030802002
FRONT PANEL ASS'Y
BK
1030802028 FRONT PANEL ASS'Y
234 KU-52111
TIMER SW PWB
235 1138155130 SLIDE KNOB (B) BK
1138155143 SLIDE KNOB (B)
WARNING:
Parts marked with and/or shading have special characteristics
important to safety. Be sure to use the specified parts for replace¬
ment.
Ref.
No.
Part No. Part Name
Remarks
236
1128112 T 09
VOL. KNOB (A)
BK
1128112112
VOL. KNOB (A)
237 1128113108 VOL. KNOB (B) BK
1128113111 VOL. KNOB (B)
238 1128114000 VOL. KNOB (C) BK
1128114013
VOL. KNOB (C)
239 1038253103
C. WINDOW ASS'Y BK
1038253129
C. WINDOW ASS'Y
240
1028319251 TOP COVER
BK
1028319248
TOP COVER
1028319277 TOP COVER BK, EA only
1028319235
TOP COVER EA only
241 4428055002 P.W.B. SUPPORT
242 4428141107 METER HOLDER
243 4118420206
SHIELD SHEET
244 4128747102
SHIELD BRACKET
246 1038249104 SIDE FRAME (L) BK
1038249117 SIDE FRAME (L)
247 1038250106 SIDE FRAME (R) BK
1038250119 SIDE FRAME (R)
248 4170140207
RADIATOR BK
4170140100
RADIATOR
249 2048110002
8P DIN JACK
250
2129223009
PUSH SWITCH
251
2129224008
PUSH SWITCH
252 2048114008 4P PIN JACK
253 2118075006
V1611V..503KA 50Kf2-A-'*“
254
2118076005 V2620V..103KA lOKHA
255
2048109013 HEADPHONE JACK
256 3934013005
FL METER
257 2124388004
TACK SWITCH
259 2129136028
POWER SW
261 KU-56401
LED PWB ASS'Y
262 KU-5620
HX PRO PWB UNIT
272
4458028009
CORD HOLDER
273 4428166108
BIAS VOL. PLATE
274 KU-56201
BIAS ADJ PWB
i. 1.'
301 4737500015 3x8CBTS (P)
302 4737501001 3x10 CBTS (P)
303 4713303016 3x6 CBS
304
4737002005
3x6 CBTS (S)
305
4737004003
4x8 CBTS (S)
306
4737505007 2.6x8 CBTS (P)
307 4737003004 3x8 CFTS (S)
308 4737500044 3x8 CBTS (P) BK
309 4737503025
4x8 CTTS (P)
BK
4737503009 4x8 CTTS (P)
310 4713305014
3x10 CBS
311
4751160042
WASHER
312
4730359014
3x16 CRTS (2)
El only
314
4737002018 3x8 CBTS (S)
315 4713201011
2.6x4 CBS
Remarks symbols in the parts list refer to the following countries
and areas.
EA: Australia El: Multiple voltage model
EK: United Kingdom E2 : European continent
EU: U.S.A.
★ Remarks symbols (BK) in the parts list means that the color of the
front panel is Black.
