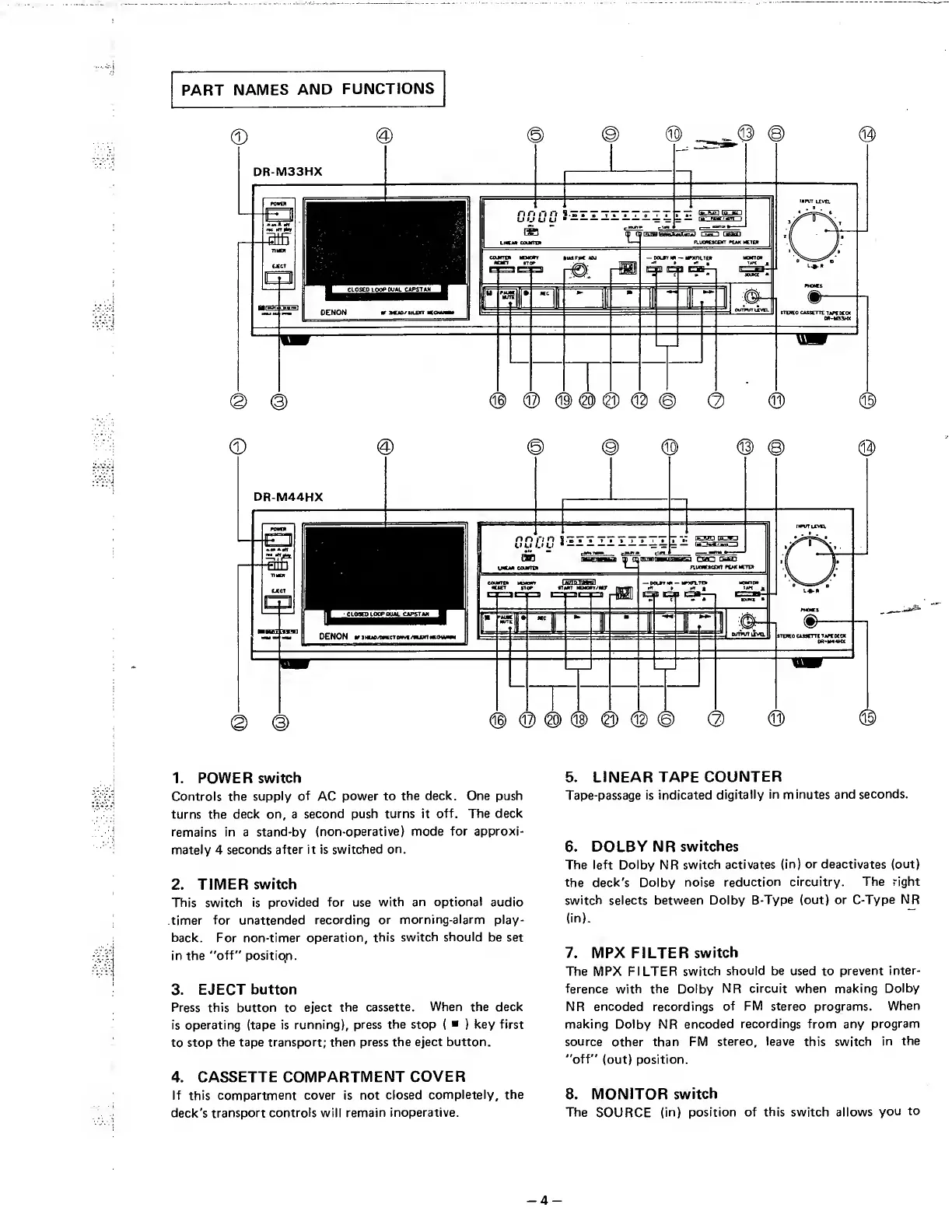

Denon DR-M33HX - Parts Names and Functions

1. POWER switch
Controls the supply of AC power to the deck. One push
turns the deck on, a second push turns it off. The deck
remains in a stand-by (non-operative) mode for approxi¬
mately 4 seconds after it is switched on.
2. TIMER switch
This switch is provided for use with an optional audio
timer for unattended recording or morning-alarm play¬
back. For non-timer operation, this switch should be set
in the "off" position.
3. EJECT button
Press this button to eject the cassette. When the deck
is operating (tape is running), press the stop ( ■ ) key first
to stop the tape transport; then press the eject button.
4. CASSETTE COMPARTMENT COVER
If this compartment cover is not closed completely, the
deck's transport controls will remain inoperative.
5. LINEAR TAPE COUNTER
Tape-passage is indicated digitally in minutes and seconds.
6. DOLBY NR switches
The left Dolby NR switch activates (in) or deactivates (out)
the deck's Dolby noise reduction circuitry. The right
switch selects between Dolby B-Type (out) or C-Type NR
(in).
7. MPX FILTER switch
The MPX FILTER switch should be used to prevent inter¬
ference with the Dolby NR circuit when making Dolby
NR encoded recordings of FM stereo programs. When
making Dolby NR encoded recordings from any program
source other than FM stereo, leave this switch in the
"off" (out) position.
8. MONITOR switch
The SOURCE (in) position of this switch allows you to
- 4 -
