Denon DR-M33HX - DISASSEMBLY INSTRUCTIONS; Front Panel Removal; Mechanism Removal; Front Escutchion, Meter Window, Control Button Removal

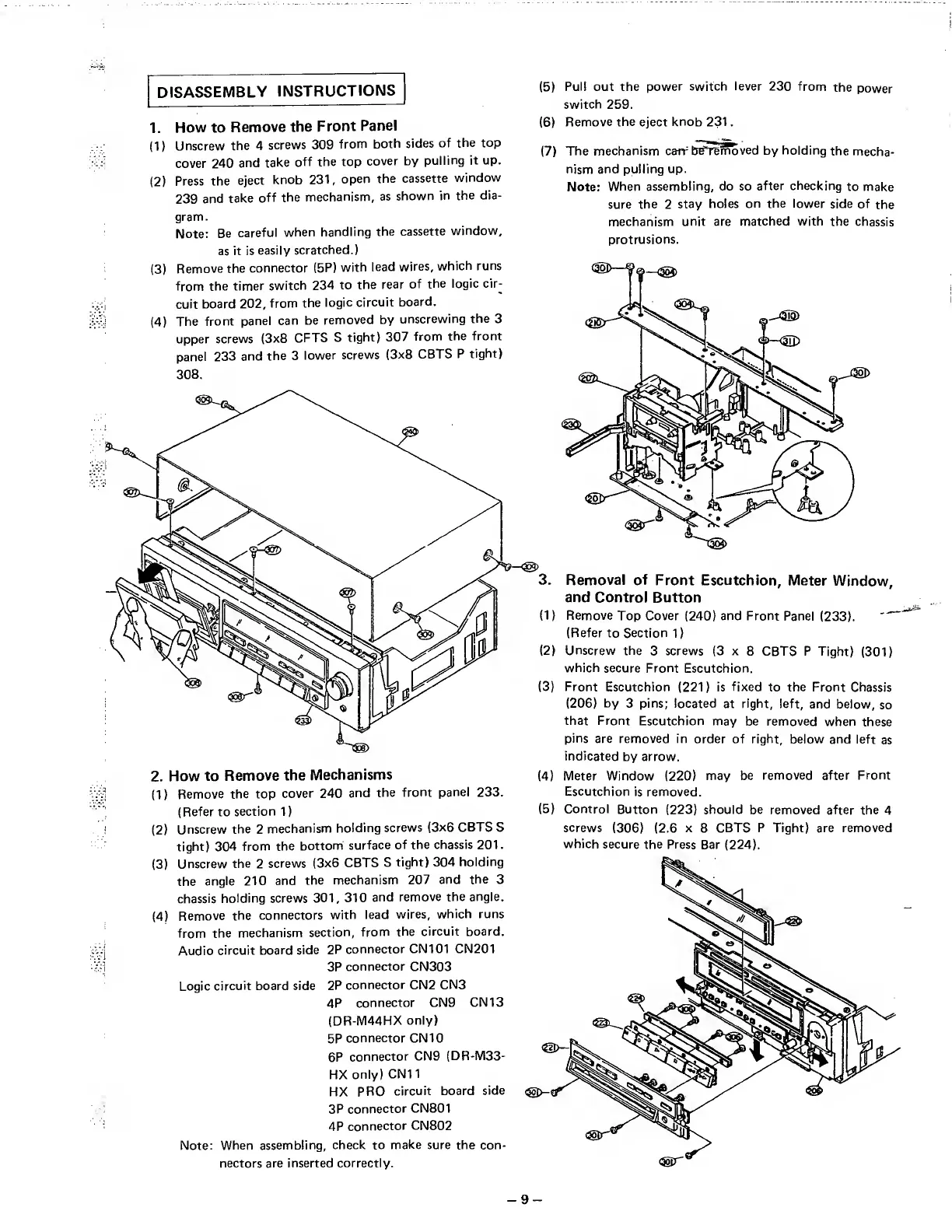

DISASSEMBLY INSTRUCTIONS
1 .
( 1 )
( 2 )
(3)
(4)
How to Remove the Front Panel
Unscrew the 4 screws 309 from both sides of the top
cover 240 and take off the top cover by pulling it up.
Press the eject knob 231, open the cassette window
239 and take off the mechanism, as shown in the dia¬
gram.
Note: Be careful when handling the cassette window,
as it is easily scratched.)
Remove the connector (5P) with lead wires, which runs
from the timer switch 234 to the rear of the logic cir¬
cuit board 202, from the logic circuit board.
The front panel can be removed by unscrewing the 3
upper screws (3x8 CFTS S tight) 307 from the front
panel 233 and the 3 lower screws (3x8 CBTS P tight)
308.
(5)
( 6 )
(7)
Pull out the power switch lever 230 from the power
switch 259.
Remove the eject knob 231.
The mechanism cair !j?rembved by holding the mecha¬
nism and pulling up.
Note: When assembling, do so after checking to make
sure the 2 stay holes on the lower side of the
mechanism unit are matched with the chassis
protrusions.
Removal of Front Escutchion, Meter Window,
and Control Button
Remove Top Cover (240) and Front Panel (233).
(Refer to Section 1)
Unscrew the 3 screws (3x8 CBTS P Tight) (301)
which secure Front Escutchion.
Front Escutchion (221) is fixed to the Front Chassis
(206) by 3 pins; located at right, left, and below, so
that Front Escutchion may be removed when these
pins are removed in order of right, below and left as
indicated by arrow.
2. How to Remove the Mechanisms
(1) Remove the top cover 240 and the front panel 233.
(Refer to section 1)
(2) Unscrew the 2 mechanism holding screws (3x6 CBTS S
tight) 304 from the bottom surface of the chassis 201.
(3) Unscrew the 2 screws (3x6 CBTS S tight) 304 holding
the angle 210 and the mechanism 207 and the 3
chassis holding screws 301,310 and remove the angle.
(4) Remove the connectors with lead wires, which runs
from the mechanism section, from the circuit board.
Audio circuit board side 2P connector CN101 CN201
3P connector CN303
Logic circuit board side 2P connector CN2 CN3
4P connector CN9 CN13
(DR-IVI44HX only)
5P connector CN10
6P connector CN9 (DR-IV133-
HX only) CN11
HX PRO circuit board side
3P connector CN801
4P connector CN802
Note: When assembling, check to make sure the con¬
nectors are inserted correctly.
(4) Meter Window (220) may be removed after Front
Escutchion is removed.
(5) Control Button (223) should be removed after the 4
screws (306) (2.6 x 8 CBTS P Tight) are removed
which secure the Press Bar (224).
- 9 -
