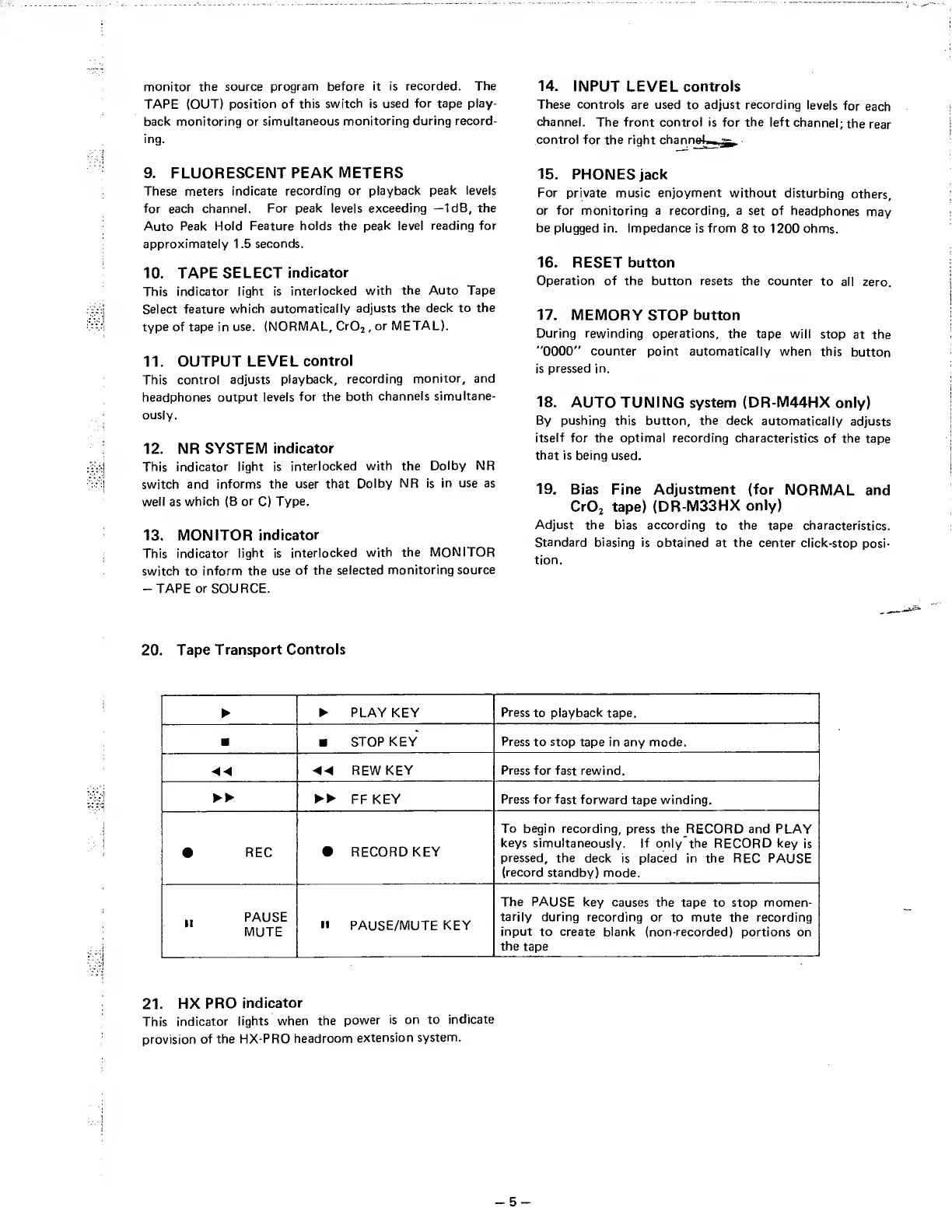

monitor the source program before it is recorded. The
TAPE (OUT) position of this switch is used for tape play¬
back monitoring or simultaneous monitoring during record¬
ing.
9. FLUORESCENT PEAK METERS
These meters indicate recording or playback peak levels
for each channel. For peak levels exceeding —IdB, the
Auto Peak Hold Feature holds the peak level reading for
approximately 1.5 seconds.
10. TAPE SELECT indicator
This indicator light is interlocked with the Auto Tape
Select feature which automatically adjusts the deck to the
type of tape in use. (NORMAL, CrO^ , or METAL).
11. OUTPUT LEVEL control
This control adjusts playback, recording monitor, and
headphones output levels for the both channels simultane¬
ously.
12. NR SYSTEM indicator
This indicator light is interlocked with the Dolby NR
switch and informs the user that Dolby NR is in use as
well as which (B or C) Type.
13. MONITOR indicator
This indicator light is interlocked with the MONITOR
switch to inform the use of the selected monitoring source
-TAPE or SOURCE.
14. INPUT LEVEL controls
These controls are used to adjust recording levels for each
channel. The front control is for the left channel; the rear
control for the right chanriejj*.^ -
15. PHONES jack
For private music enjoyment without disturbing others,
or for monitoring a recording, a set of headphones may
be plugged in. Impedance is from 8 to 1200 ohms.
16. RESET button
Operation of the button resets the counter to all zero.
17. MEMORY STOP button
During rewinding operations, the tape will stop at the
“0000" counter point automatically when this button
is pressed in.
18. AUTO TUNING system (DR-M44HX only)
By pushing this button, the deck automatically adjusts
itself for the optimal recording characteristics of the tape
that is being used.
19. Bias Fine Adjustment (for NORMAL and
CrOa tape) {DR-M33HX only)
Adjust the bias according to the tape characteristics.
Standard biasing is obtained at the center click-stop posi¬
tion.
20. T ape Transport Controls
►
►
PLAY KEY
Press to playback tape.
■
■ STOP KEY
Press to stop tape in any mode.
◄ ◄
REW KEY Press for fast rewind.
► ►
► ►
FF KEY Press for fast forward tape winding.
•
REC
• RECORD KEY
To begin recording, press the RECORD and PLAY
keys simultaneously. If only the RECORD key is
pressed, the deck is placed in the REC PAUSE
(record standby) mode.
II
PAUSE
MUTE
II
PAUSE/MUTE KEY
The PAUSE key causes the tape to stop momen¬
tarily during recording or to mute the recording
input to create blank (non-recorded) portions on
the tape
21. H X PRO indicator
This indicator lights when the power is on to indicate
provision of the HX-PRO headroom extension system.
- 5 -
