Denon DRM-710 - Names and Functions

ENGLISH

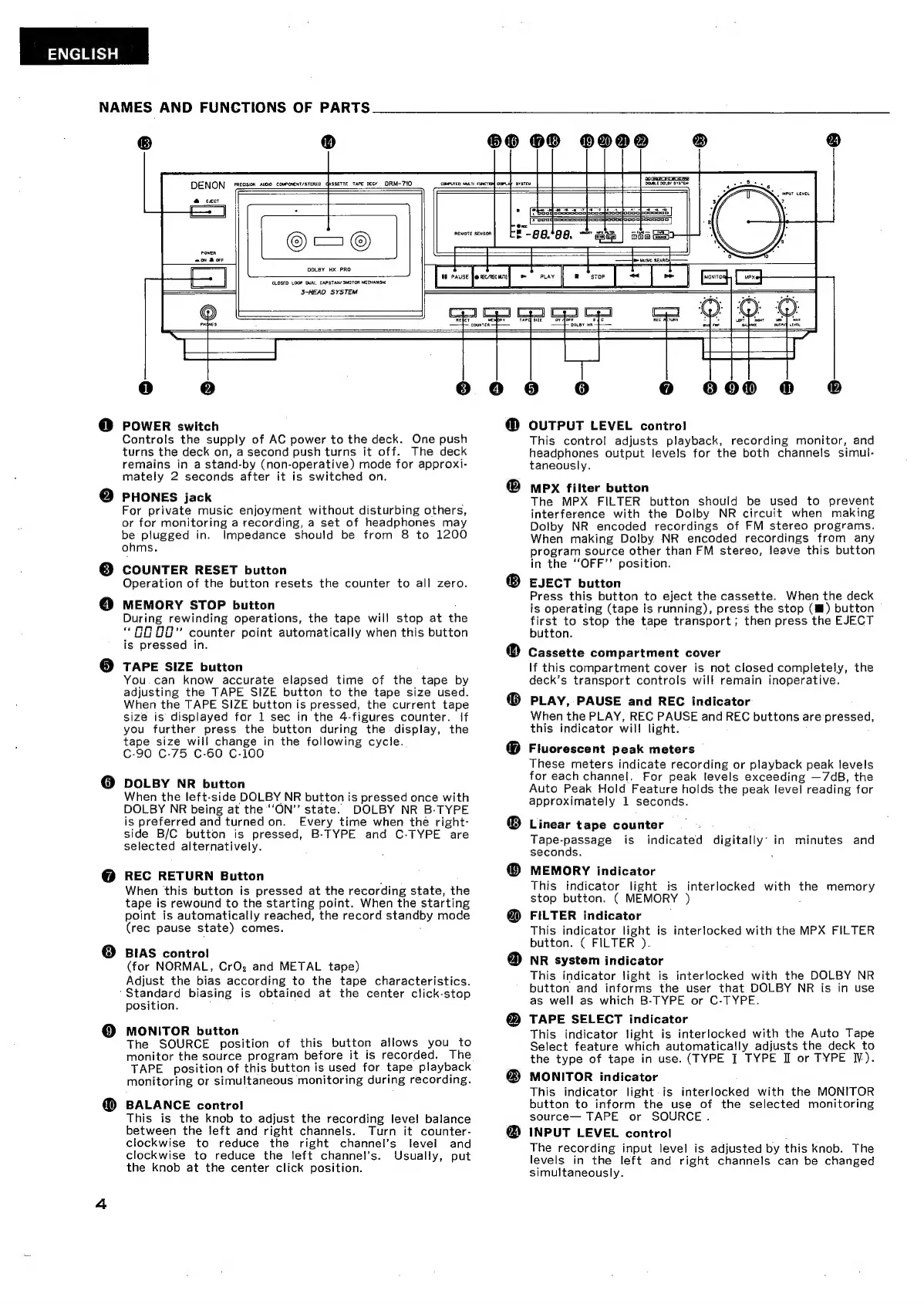

NAMES AND FUNCTIONS OF PARTS
UD REK EED
DENON reason ao coweowewr/sTERED deser TAPE er DRM-710 corto uam amuy sesten CORE 09:07 sra Ea EN
à N. INPUT LEVEL
à ze È ;
A SEE ETTI DE DD poto 1
DEE E Se DS SE :
e= a
D e hm a
— REMOTE SENSOR * -88.'08. E ata EE À |
Š > o o
eg Äer — = Music SEARCH —
DOLEY Hx PRO
u PAUSE Jomcrecune] e PLAY [E + > MONITO! mex
CLOSED LOOP DUAL CAPSTAN/SHOTOR MECHAS
3-HEAD SYSTEM
REI TAPE SIZE om REC RETURN Ki ux Lud - p
rubus DOLBY na lm a" am] PE:
POWER switch
Controls the supply of AC power to the deck. One push
turns the deck on, a second push turns it off. The deck
remains in a stand-by (non-operative) mode for approxi-
mately 2 seconds after it is switched on.
PHONES jack
For private music enjoyment without disturbing others,
or for monitoring a recording, a set of headphones may
be plugged in. Impedance should be from 8 to 1200
ohms.
COUNTER RESET button
Operation of the button resets the counter to all zero.
MEMORY STOP button
During rewinding operations, the tape will stop at the
“ DD UB" counter point automatically when this button
is pressed in.
TAPE SIZE button
You.can know accurate elapsed time of the tape by
adjusting the TAPE SIZE button to the tape size used.
When the TAPE SIZE button is pressed, the current tape
size is displayed for 1 sec in the 4-figures counter. If
you further press the button during the display, the
tape size will change in the following cycle.
C-90 C.75 C-60 C-100
DOLBY NR button
When the left-side DOLBY NR button is pressed once with
DOLBY NR being at the “ON” state. DOLBY NR B-TYPE
is preferred and turned on. Every time when the right-
side B/C button is pressed, B-TYPE and C-TYPE are
selected alternatively.
REC RETURN Button .
When this button is pressed at the recording state, the
tape is rewound to the starting point. When the starting
point is automatically reached, the record standby mode
(rec pause state) comes.
BIAS control
(for NORMAL, CrO: and METAL tape)
Adjust the bias according to the tape characteristics.
‘ Standard biasing is obtained at the center click-stop
position.
MONITOR button
The SOURCE position of this button allows you to
monitor the source program before it is recorded. The
TAPE position of this button is used for tape playback
monitoring or simultaneous monitoring during recording.
BALANCE contro!
This is the knob to adjust the recording leve! balance
between the left and right channels. Turn it counter-
clockwise to reduce the right channel's level and
clockwise to reduce the left channel's. Usually, put
the knob at the center click position.
e
e
e © © 8
®
e
OUTPUT LEVEL control
This control adjusts playback, recording monitor, and
headphones output levels for the both channels simul-
taneously.
MPX filter button
The MPX FILTER button should be used to prevent
interference with the Dolby NR circuit when making
Dolby NR encoded recordings of FM stereo programs.
When making Dolby NR encoded recordings from any
program source other than FM stereo, leave this button
in the “OFF” position.
EJECT button
Press this button to eject the cassette. When the deck
is operating (tape is running), press the stop (I) button `
first to stop the tape transport; then press the EJECT
button.
Cassette compartment cover
If this compartment cover is not closed completely, the
deck's transport controls will remain inoperative.
PLAY, PAUSE and REC indicator
When the PLAY, REC PAUSE and REC buttons are pressed,
this indicator will light.
Fluorescent peak meters
These meters indicate recording or playback peak levels
for each channel. For peak levels exceeding —7dB, the
Auto Peak Hold Feature holds the peak level reading for
approximately 1 seconds.
Linear tape counter
Tape-passage is indicated digitally: in minutes and
seconds.
MEMORY indicator
This indicator light is
interlocked with the memory
stop button. ( MEMORY ) .
FILTER indicator |
This indicator light is interlocked with the MPX FILTER
button. ( FILTER ).
NR system indicator
This indicator light is interlocked with the DOLBY NR
button and informs the user that DOLBY NR is in use
as well as which B-TYPE or C-TYPE.
TAPE SELECT indicator
This indicator light is interlocked with the Auto Tape
Select feature which automatically adjusts the deck to
the type of tape in use. (TYPE I TYPE I or TYPE WV).
MONITOR indicator
This indicator light.is interlocked with the MONITOR
button to inform the use of the selected monitoring
source— TAPE or SOURCE.
INPUT LEVEL control
The recording input level is adjusted by this knob. The
levels in the left and right channels can be changed
simultaneously.
