Denon HEOS Amp - Core Module Pcb Assy

3. CORE MODULE PCB ASSY
Proceeding : SIDE COVER
→
TOP COVER
→
CORE MODULE PCB ASSY

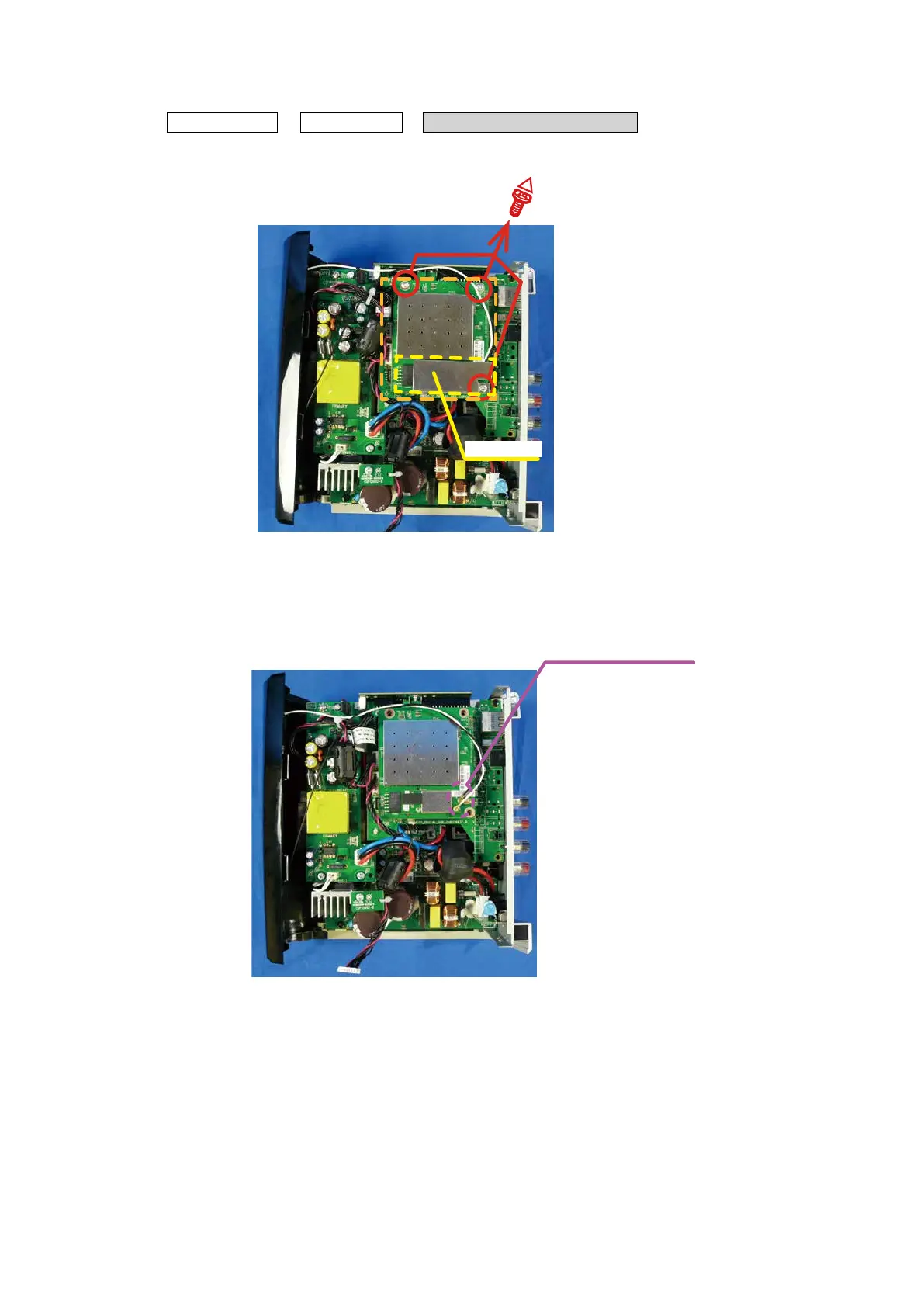

(1) Remove the screws. And pull up the PCB.
(2) Remove the shield cover and remove the antenna connector.
shield cover
ANTENNA CONNECTOR
Shooting direction: D
(Top side)
