Denon HEOS LINK - Back Panel

o

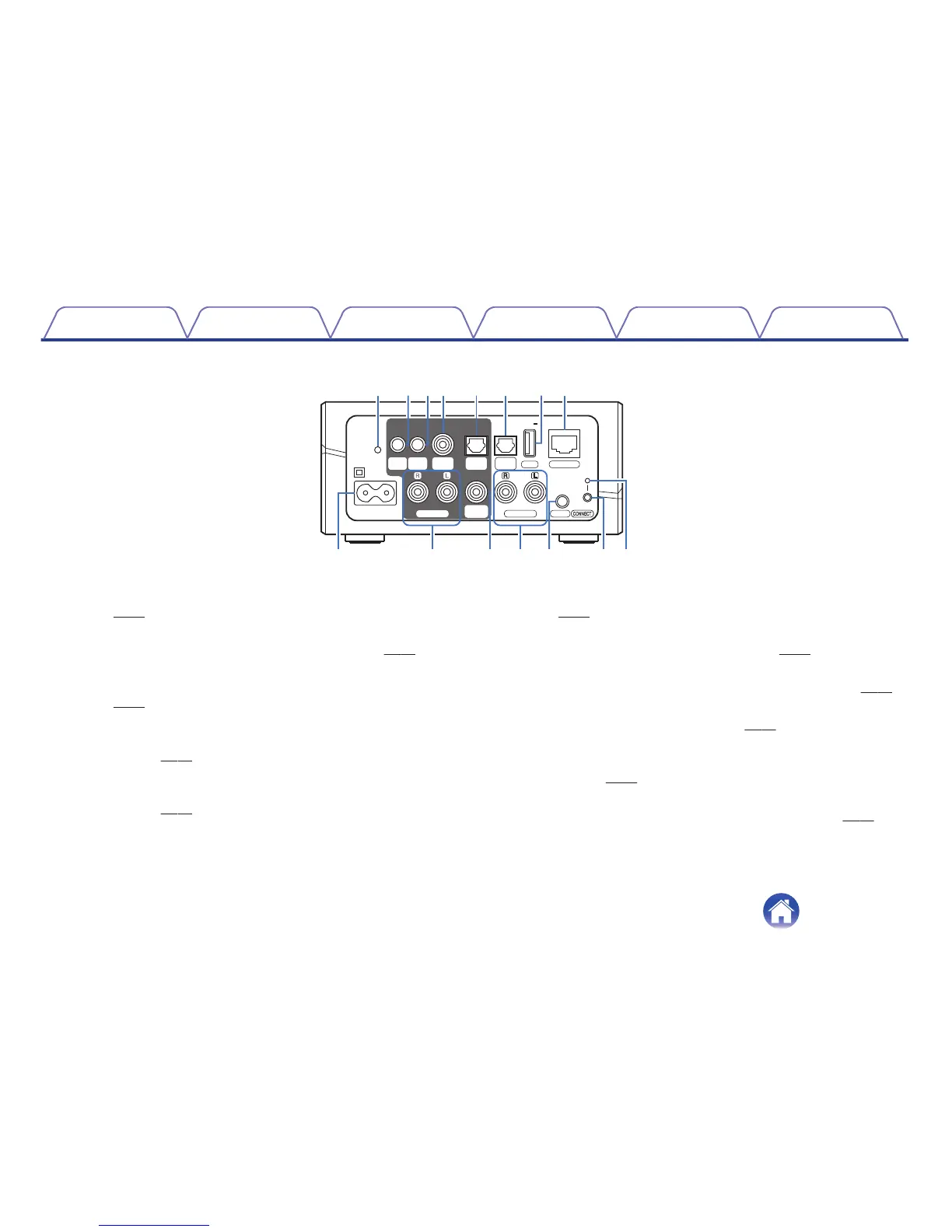

Back panel
.
DC12V
150mA
MAX.
IN
OPTICAL
USB
NETWORK
AUX IN
LINE IN
5V1A
WOOFER
SUB
OUT
OPTICAL
PRE OUT
OUT
COAXIAL
OUT
TRIGGER
OUT
IR
RESET
AC IN
u iytrewq
oQ0
Q2Q1 Q3 Q4
Q5
A
Reset Button (RESET)
Various settings are reset to the factory default values.
(v p. 45)
B
IR Output (IR OUT)
Used to control a Denon AVR, PMA, or System. (v
p. 37)
C
Trigger Output (DC12 V 150 mA MAX.)
Used to send a 12 V signal to control an external amplifier.
(v
p. 38)
D
Digital Audio Output (COAXIAL OUT)
Used to connect this unit to audio amplifier, AV receiver of audio
system. (v
p. 13)
E
Digital Audio Output (OPTICAL OUT)
Used to connect this unit to audio amplifier, AV receiver of audio
system. (v p. 13)
F
Digital Audio Input (OPTICAL IN)
Used to connect audio devices with a digital optical cable.
(v p. 14)
G
USB Input (USB 5 V/1 A)
Used to connect USB storage devices. (v
p. 14)
H
Network Connector (NETWORK)
Used to connect this unit to a wired Ethernet network. (v
p. 17)
I
AC input (AC IN)
Used to connect the power cord. (v p. 15)
J
Analog Pre Output (PRE OUT)
Used to connect this unit to audio amplifier, AV receiver of audio
system. (v
p. 13)
K
Subwoofer Output (SUB WOOFER)
Used to connect this unit to a powered subwoofer. (v p. 13)
