External Device Control
The HEOS Link can tightly integrate with most Denon AVR, Preamps, and
Hi-Fi systems to allow them to operate as if they were one device.
You can configure your HEOS Link to tell the connected device when to
turn on, turn off, select the correct input and adjust volume and mute.
You can adjust specific settings for each of your HEOS Links in your
system:
1
Select the Settings a icon located in the upper left
corner of the main Music menu to display the Settings
menu.
2
Select “My Devices” to display a list of your devices.
3
Select “Control”.
4
Select the method which is most appropriate for your
configuration:
o
IR Control

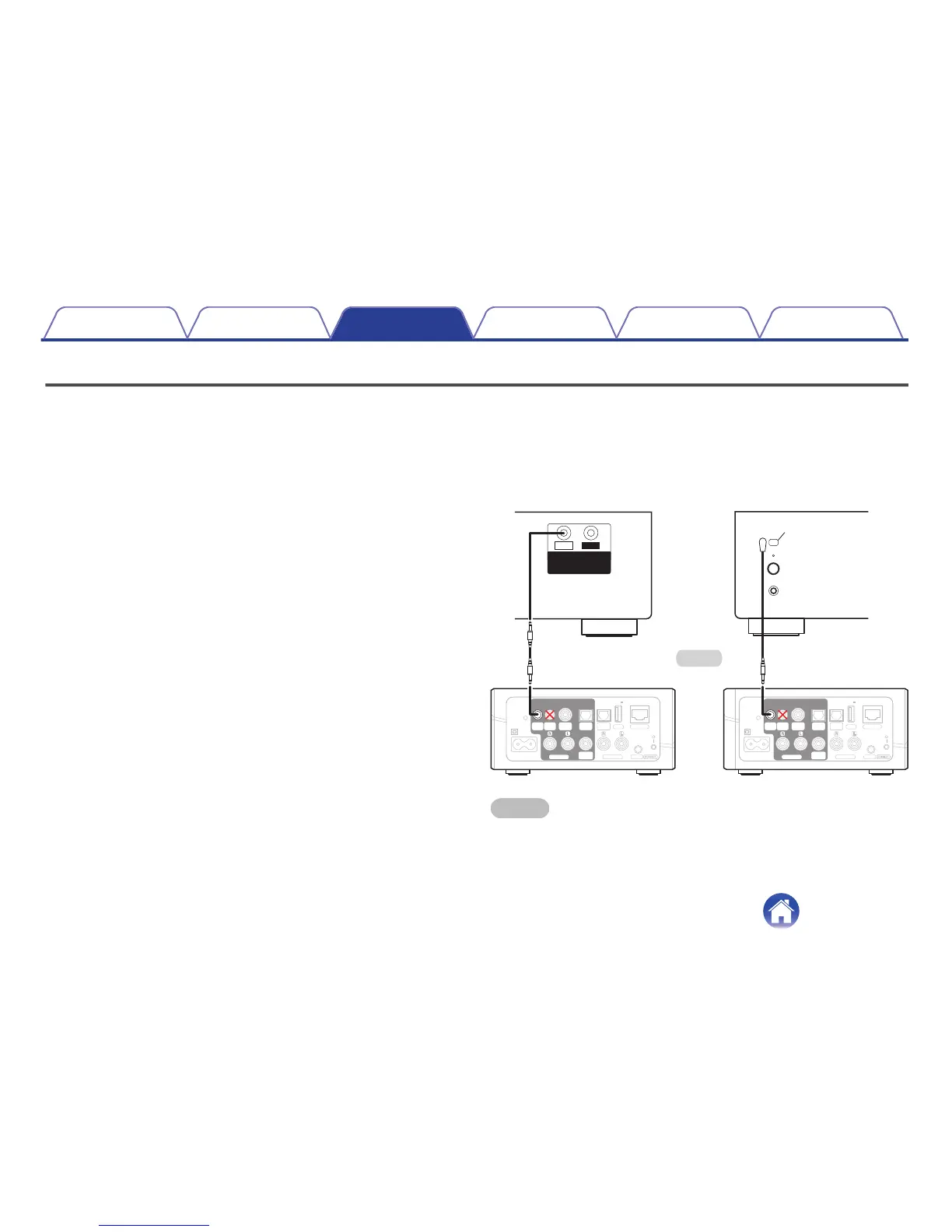

Connect the appropriate IR control cable between your AV receiver or
amplifier and the HEOS Link using the IR direct or IR emitter cable (both
included) depending on the IR control input capabilities of your device.
.
DC12V
150mA
MAX.
IN
OPTICAL
USB
NETWORK
AUX IN
LINE IN
5V1A
WOOFER
SUB
OUT
TRIGGER
OUT
IR
RESET
AC IN
PRE OUT
OUT
COAXIAL
OUT
OPTICAL
DC12V
150mA
MAX.
IN
OPTICAL
USB
NETWORK
AUX IN
LINE IN
5V1A
WOOFER
SUB
OUT
TRIGGER
OUT
IR
RESET
AC IN
PRE OUT
OUT
COAXIAL
OUT
OPTICAL
IR
REMOTE
CONTROL
IN
OUT
or
Remote control sensor
Your amplifier or
AV receiver
Your amplifier or
AV receiver
NOTE
Connecting the IR control cable (IR Direct cable/IR Emitter cable) to the Trigger Out
connector of the HEOS Link incorrectly may break the connected AV receiver, the
amplifier or the IR Emitter cable.
