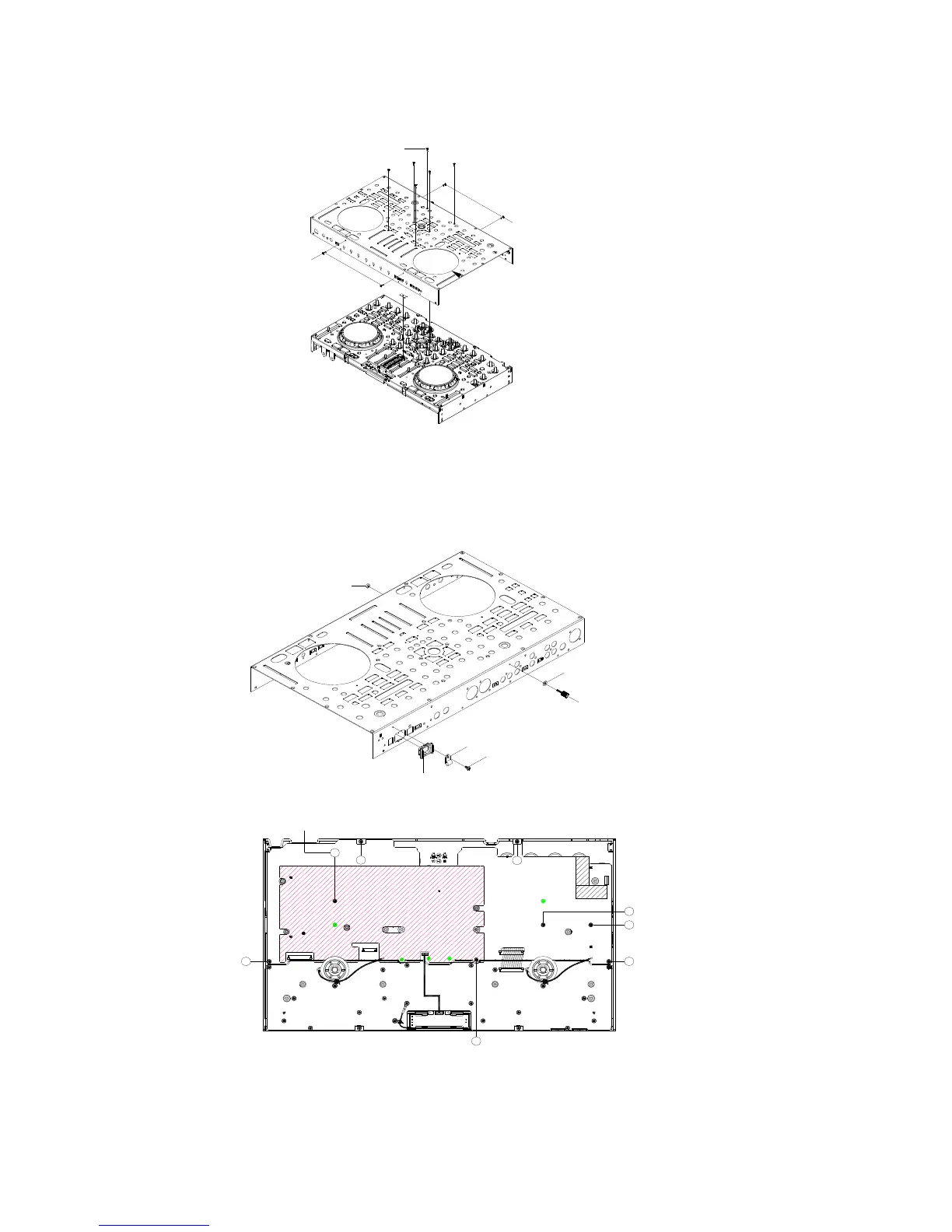

12. Remove the screws *10 from front panel.
Step of screw tightening.(1-10)
13-1. Remove screw .buckle and knob protector.
13-2. Remove gound pin . Washer and nut.
13-3. Remove screw*8. (
①
-
⑤
)
1
2
3
4
6
5
9
10
7
8
screw*2
screw*2
screw*6
Screw*1
Ground pin
Washer
Nut
Buckle*1
Knob protector
CONTROL 1 PCB
5
63
4
8
7
CN100
CN100
CONTROL 2 PCB
1
screw*8
2
1
2
3
4
6
5
9
10
7
8
screw*2
screw*2
screw*6
Screw*1
Ground pin
Washer
Nut
Buckle*1
Knob protector
CONTROL 1 PCB
5
63
4
8
7
CN100
CN100
CONTROL 2 PCB
1
screw*8
2
