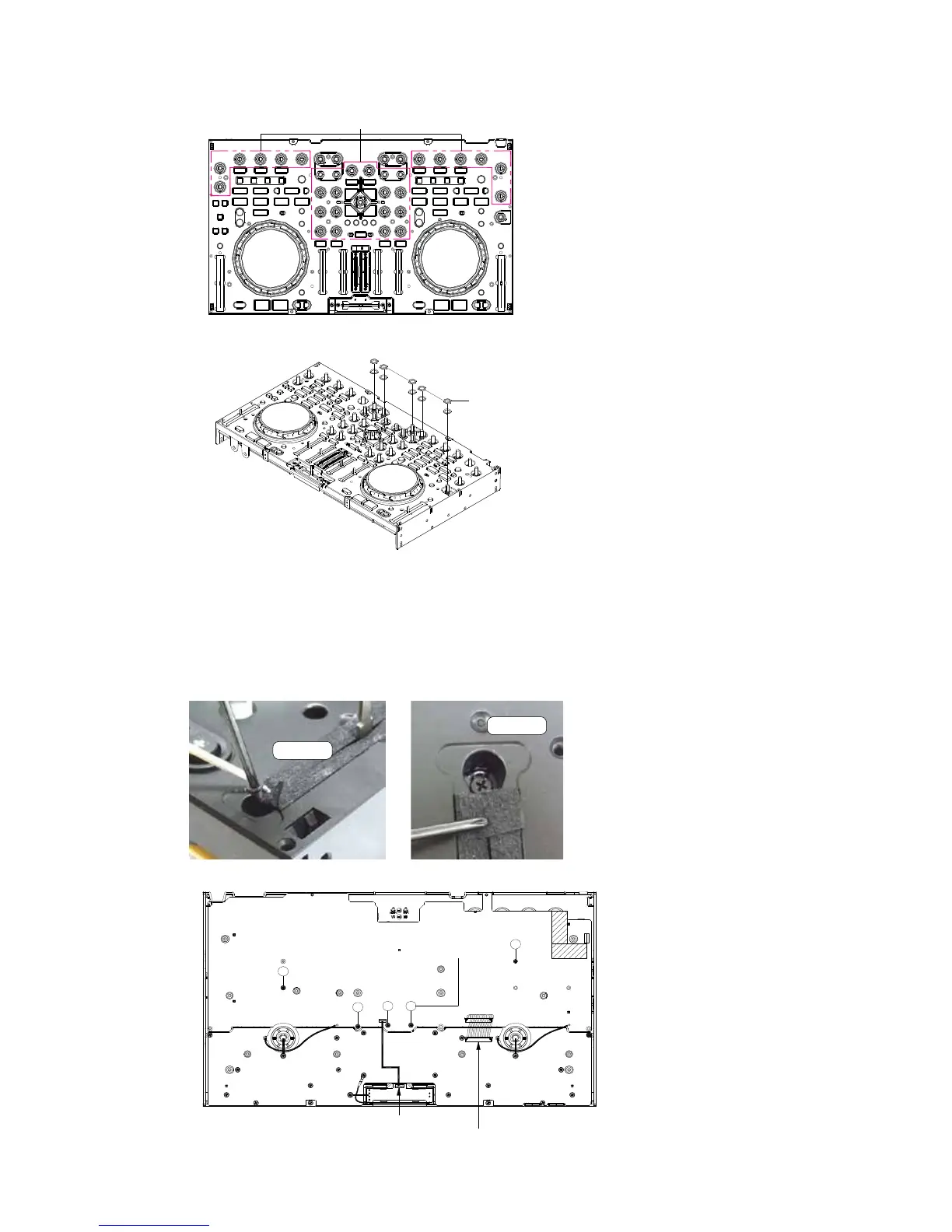

14. Remove nuts*36 and washers*36.
15-1. Remove screw*4. (SCREW*2x2)
15-2. Remove screw*5.(
①
-
⑤
)
15-3. Disconnect 32P FFC cable.
15-4. Remove the control 1 pcb ass'y.
nut and washer
(10Φ,31P.S.)
nut and washer
(11Φ,5P.S.)
5
3P wire
CN100
CN100
32P FFC cable
CONTROL 1 PCB ASS'Y
3
1
screw*5
4
2
CONTROL 2 PCB ASS'Y
nut and washer
(10Φ,31P.S.)
nut and washer
(11Φ,5P.S.)
5
3P wire
CN100
CN100
32P FFC cable
CONTROL 1 PCB ASS'Y
3
1
screw*5
4
2
CONTROL 2 PCB ASS'Y
screw*2
screw*2
