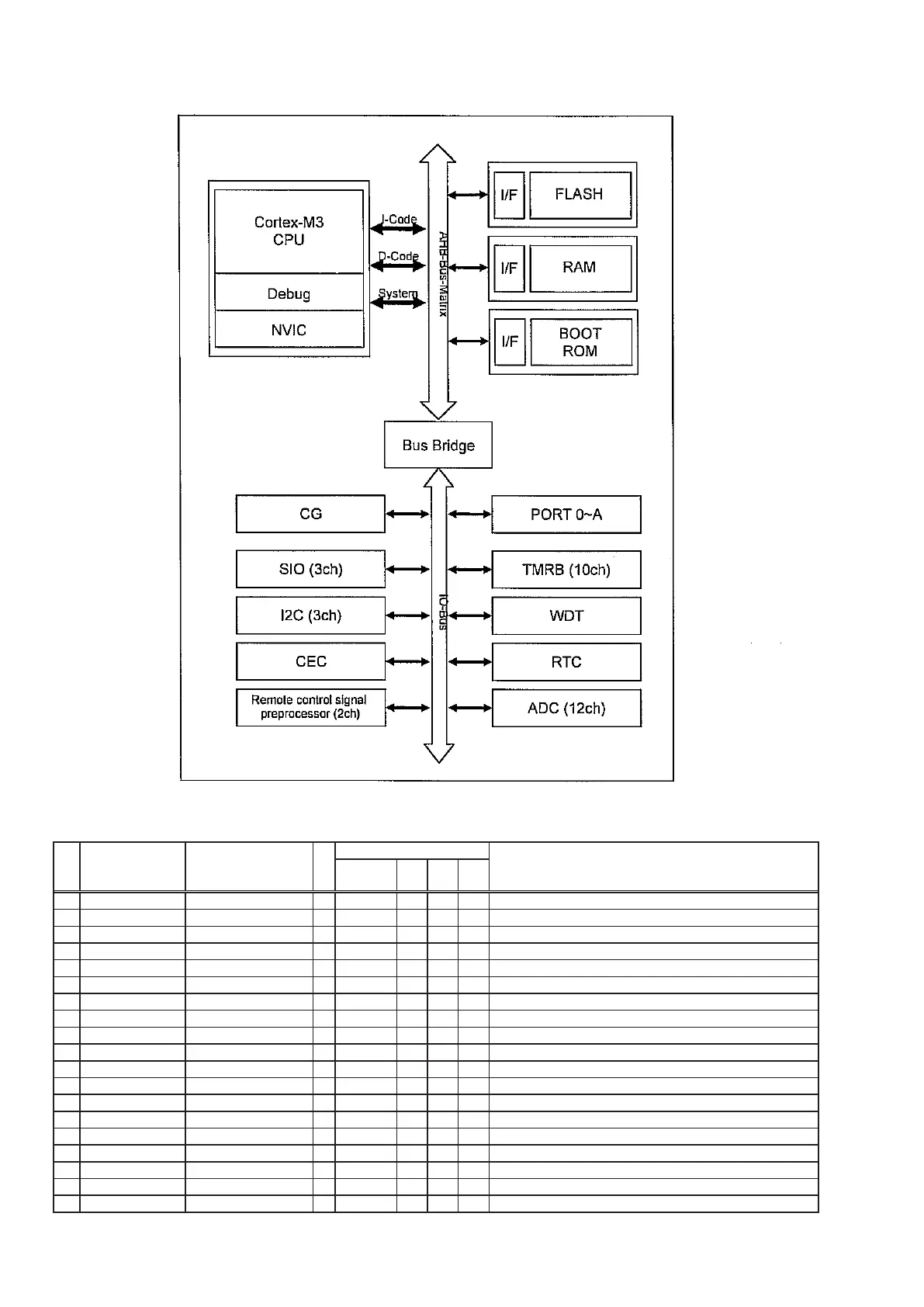

TMPM330FYFG (for E3,E2,JP model) / T5CN5 (for EK model) Block Diagram
TMPM330FYFG (for E3,E2,JP model) / T5CN5 (for EK model) Terminal Function
Pin
No
Port Name Port Name I/O
Status
Note
Pull-up/
down
init. stby Act.
1 PD6 AMP_PRT I Pull-up - H L AMP protect detect
2 AN11 POWER_PROT I Pull-down - L H POWER protect detect
3 AVSS G A/D converter: GND pin (0V)
4 VREFH P Reference power supply
5 AVCC P A/D converter with a power supply
6 INT4 REMOTE_IN_1 I - - - remote in
7 PK2 HP_ON O L L H Headphone on/off control (SP Relay Control)
8 PJ5 CD_CLOSE_M O L L H CD CLOSE MOTOR IP4001(14) Mute
9 PH4 CD_OPEN_M O L L H CD OPEN MOTOR IP4001(9) Mute
10 PH5 CD_CLOSE_SW I Pull-up - O - CD CLOSE switch
11 PG7 CD_OPEN_SW I Pull-up - O - CD OPEN switch
12 TEST2 TEST pin, Set to OPEN.
13 DVSS G GND pin
14 DVCC P Power supply pin
15 PG4 CD_LIMIT_SW I Pull-up - - L CD INNER switch
16 PG5 MT_STBY O L L H motor stanby IP4001(7) Mute
17 PG6 F_MUTE O L H H function mute (INPUT B'D Q112-B)
18 TEST1 TEST pin, Set to OPEN.
19 PF7 SPDIF_ON O L L H SPDIF on (J Ver. Only)
To Next Page
