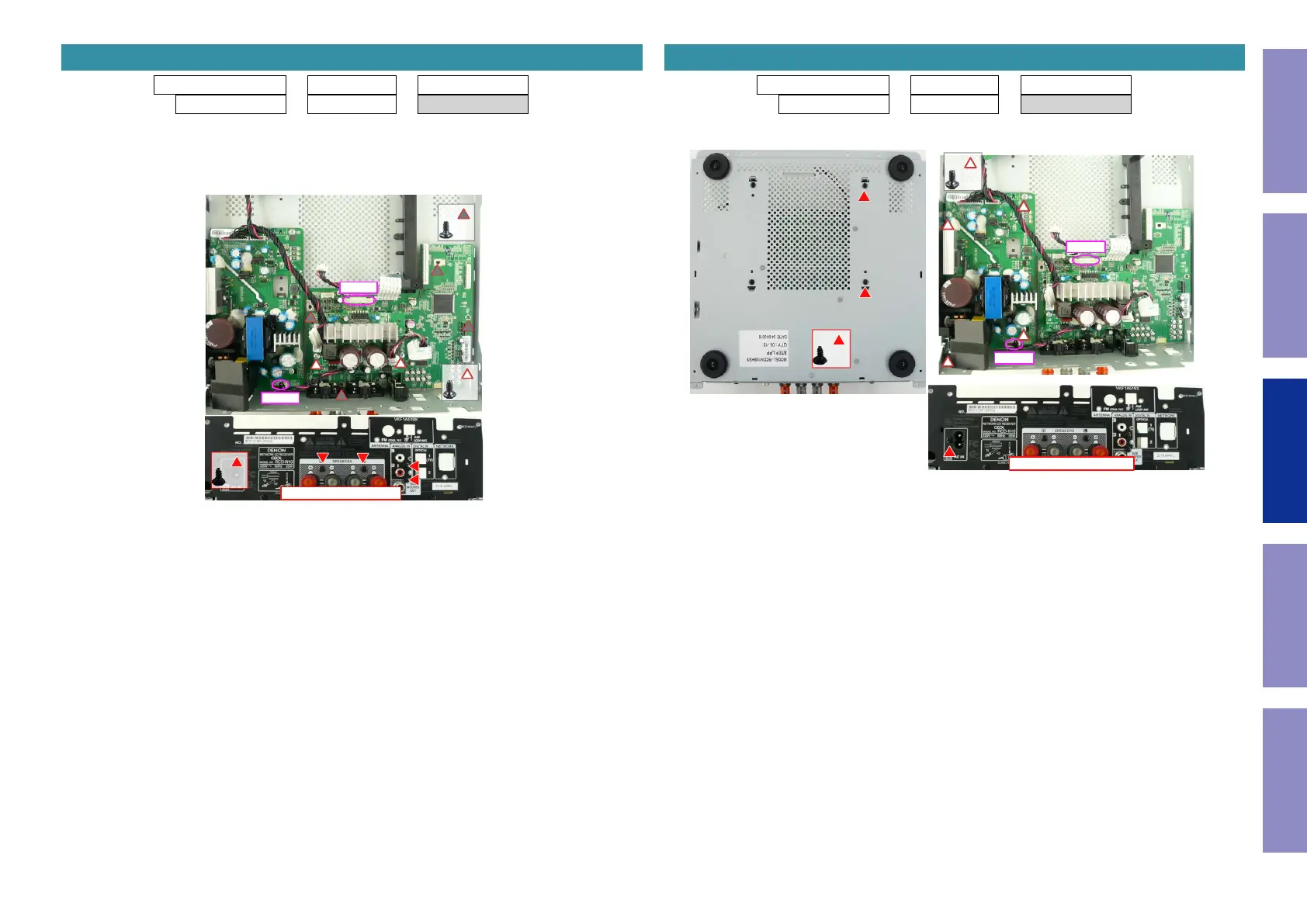

Proceeding : REAR MOLD PANEL → SIDE PANEL → TOP PANEL ASSY
→ CD MECHA ASSY → SHIELD COVER → MAIN PCB
(1) Removetheconnectorwire.Removethescrews.

9. MAIN PCB
↑Shooting direction: A↑
CN93
CN91
x4
x2
x4
Proceeding : REAR MOLD PANEL → SIDE PANEL → TOP PANEL ASSY
→ CD MECHA ASSY → SHIELD COVER → SMPS PCB
(1) Removethescrews.RemovetheSUPPORT,MECA-L.Removetheconnectorwire.

10. SMPS PCB
↑Shooting direction: A↑
CN93
CN91
x3
x2
Before Servicing
This Unit
Electrical Mechanical Repair Information Updating
42
