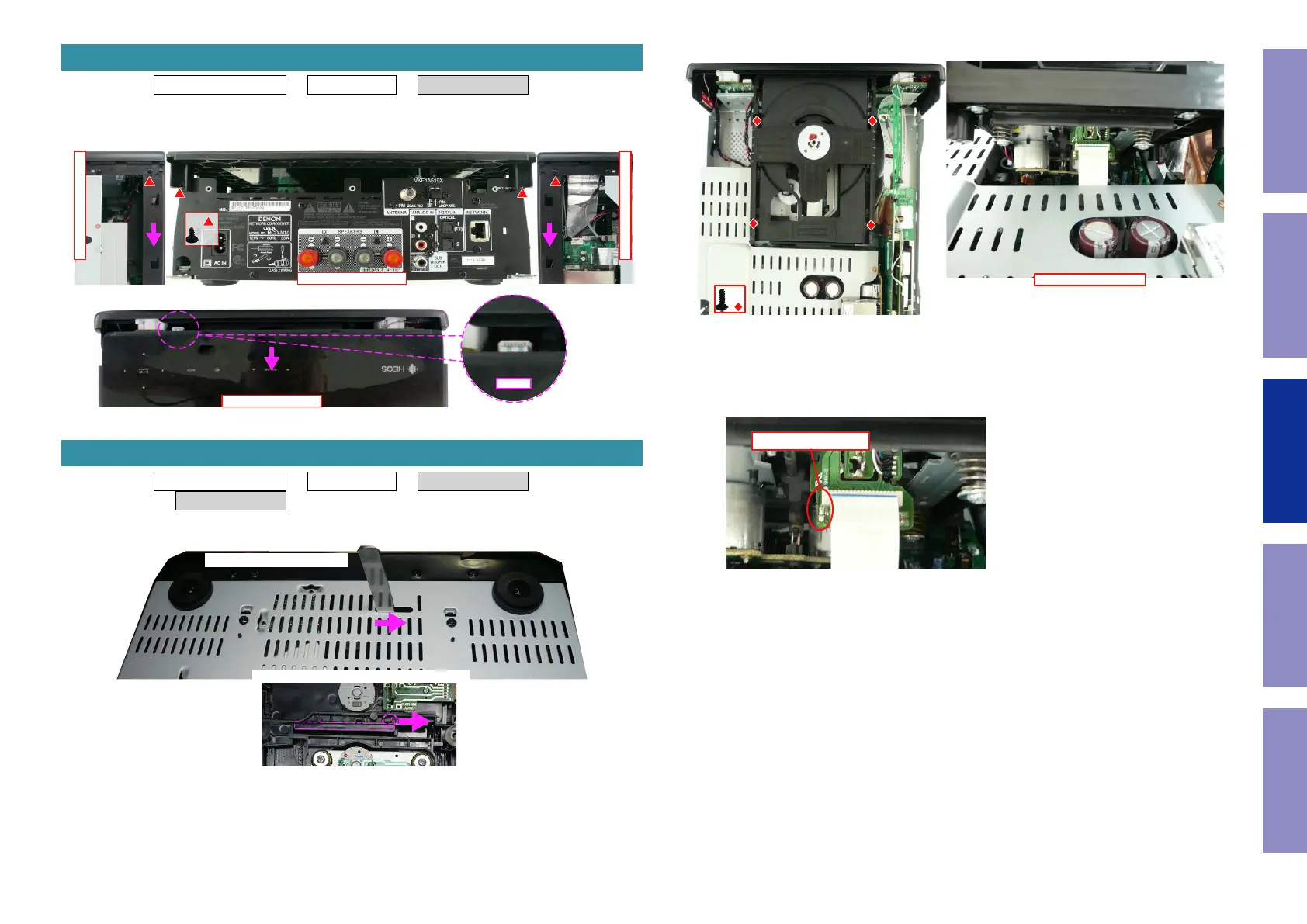

Proceeding : REAR MOLD PANEL → SIDE PANEL → TOP PANEL ASSY
(1) Removethescrews.RemovetheFFC.

Proceeding : REAR MOLD PANEL → SIDE PANEL → TOP PANEL ASSY
→ CD MECHA ASSY
(1) OpentheCDtrayandremoveDOOR.

3. TOP PANEL ASSY
↓Shooting direction: D↓ ↑Shooting direction: C↑
↑Shooting direction: A↑
View from the TOP
WF13
x4
4. CD MECHA ASSY
View from the bottom
View from the CD MECHA bottom
(2) Removethescrews.Removetheconnector.
(3) RemovetheFFCcableaftertheCDmecha'sshortcircuitpatternforLDdamagepreventionhas
beenshortcircuited.
Besuretowearanearthband.

↑Shooting direction: B↑
x3
Soldering place
Before Servicing
This Unit
Electrical Mechanical Repair Information Updating
40
