178
BHT-904B/BHT-914B
CU-911
The CU-911 has an IEEE802.3-compliant Ethernet interface port (100Base-TX).

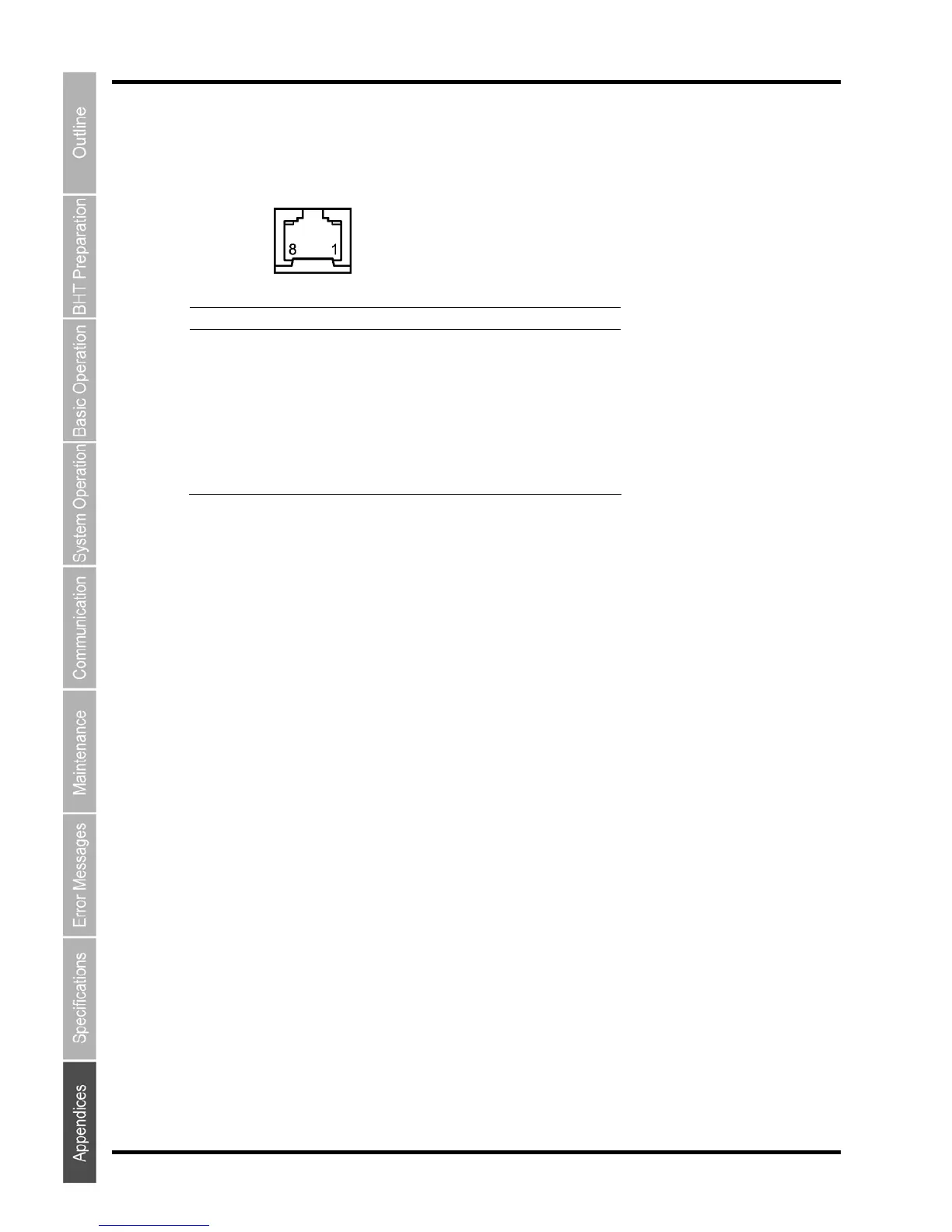

Ethernet Interface Port (RJ45 jack) on the CU-911
Pin No.
Signal Functions
1
2
3
4
5
6
7
8
TD
+
TD
-
RD
+
N.C.
N.C.
RD
-
N.C.
N.C.
Send data
Send data
Receive data
No connection
No connection
Receive data
No connection
No connection
CU-921
The USB interface on the CU-921 is a Type Mini-B receptacle which is compliant with the USB1.1
(Full-speed).
