Denso RC5 - I;O Power Connector CN7 (Common, PNP)

111

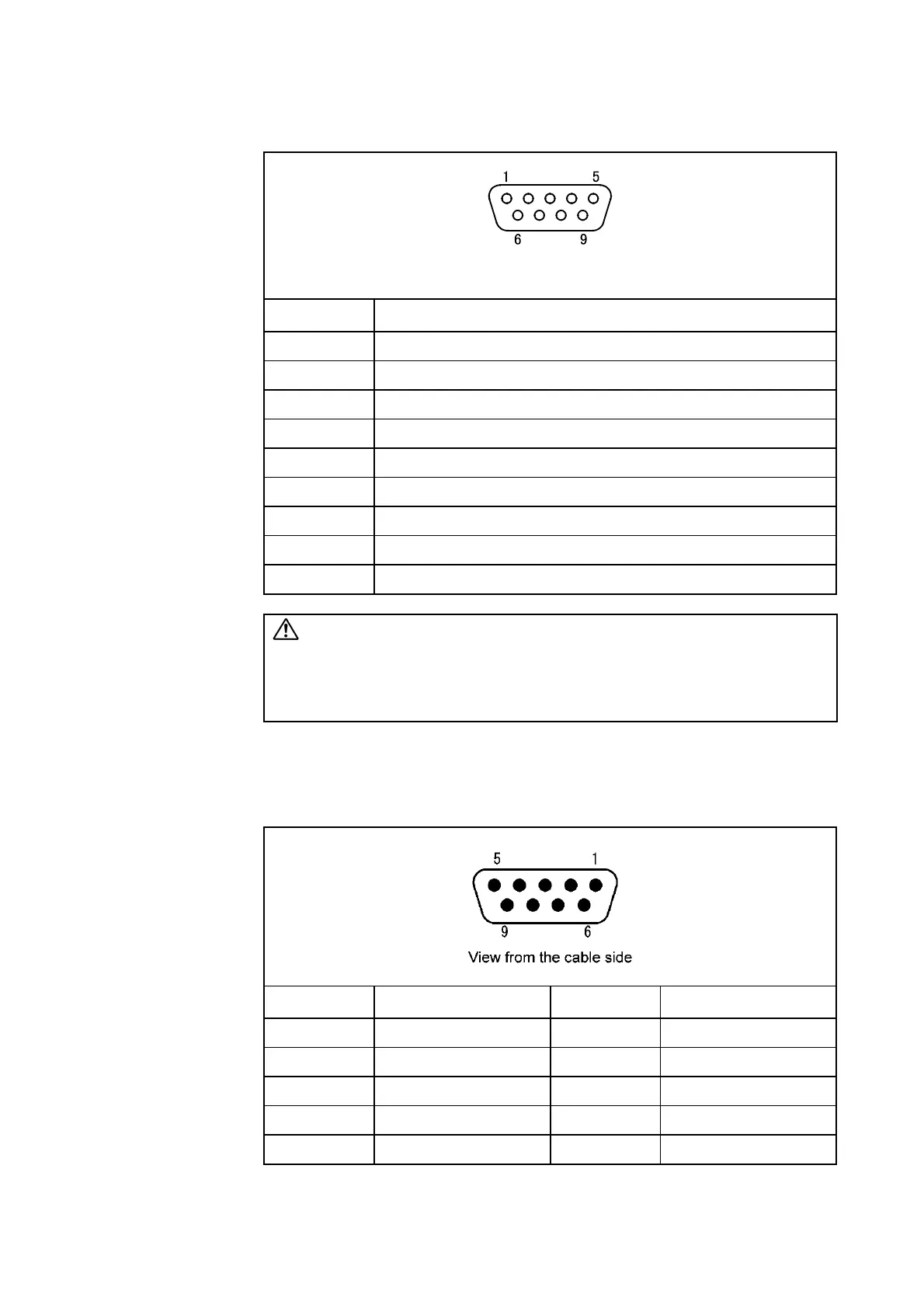

(2) I/O POWER CN7: Power connector for I/O (common to both modes)
CN7 Pin Assignment, common to both modes (NPN type)
View from the cable side
Terminal No. Name
1
Internal power source output +24V
2
Internal power source output +24V
3 Internal power source output 0V
4
Internal power source output 0V
5
FG
6
Power input E24V
7 Power input E24V
8
Power input E0V
9
Power input E0V
Caution: When using the internal power source, keep the total
current capacity below 1.3 A. To use the internal power source of the
robot controller, connect the wiring so that the internal power source
will be separated from the external power source. Improper wiring may
damage the internal circuit.
(3) RS232C CN1: RS232C connector
CN1 Pin Assignment
Terminal No. Name Terminal No. Name
1

6DSR
2
RXD 7 RTS
3TXD 8CTS
4
DTR 9

5
SG
