9
[ 2 ] Outer Dimensions

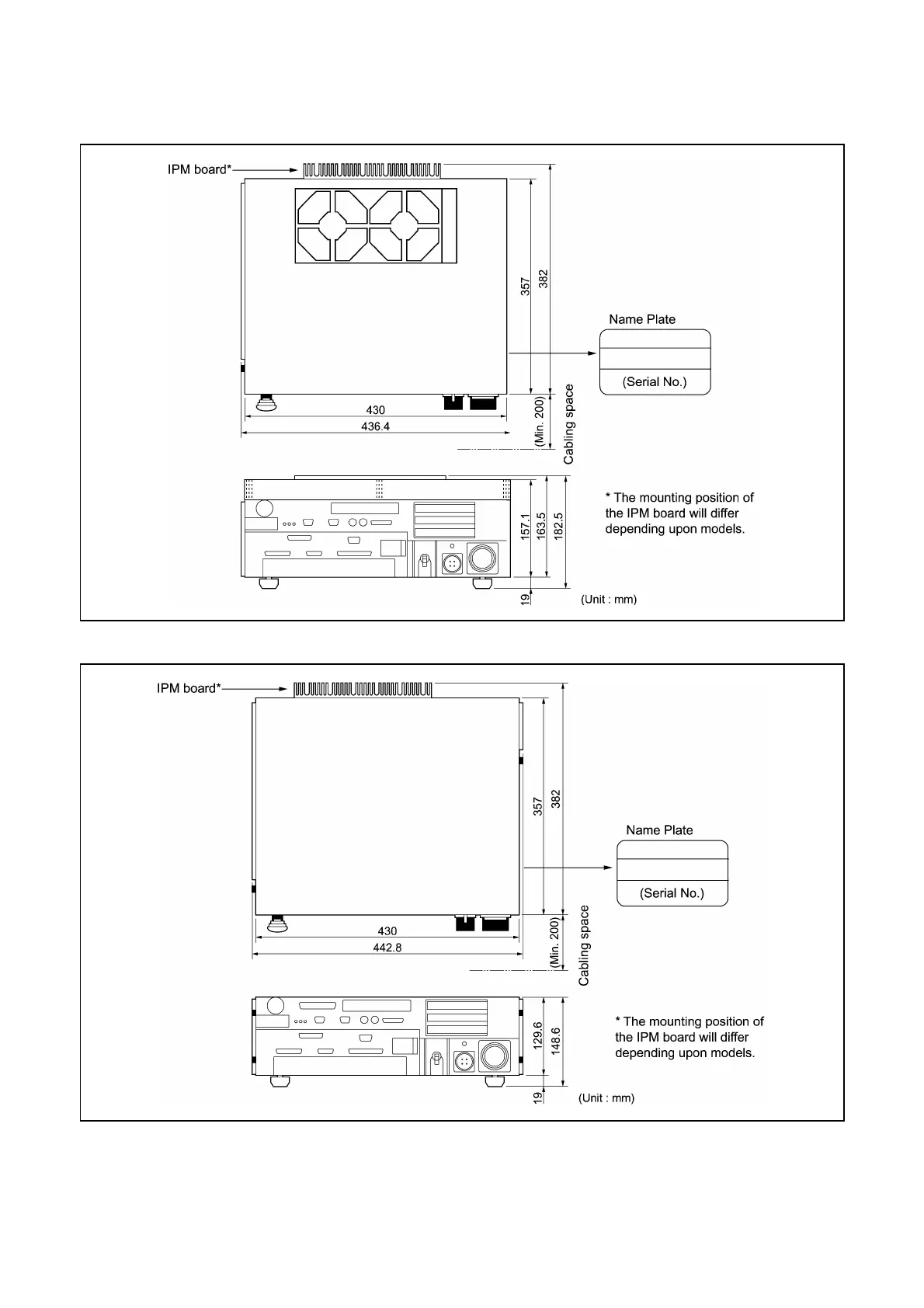

The outer dimensions of the robot controller are shown below.
Outer Dimensions of Robot Controller (for VM-D/HM-E series and extended-joint support)
Outer Dimensions of Robot Controller (for robot series except VM-D/HM-E)
