P Row of patient symbol keys with LEDs, programmed kV/mA
values
Q "R" key for unit return with Ready LED (flashes if the unit is
not ready for an exposure).
R "T" key for test cycle without radiation with LED display
S "Close temple supports" key
T "Open temple supports" key

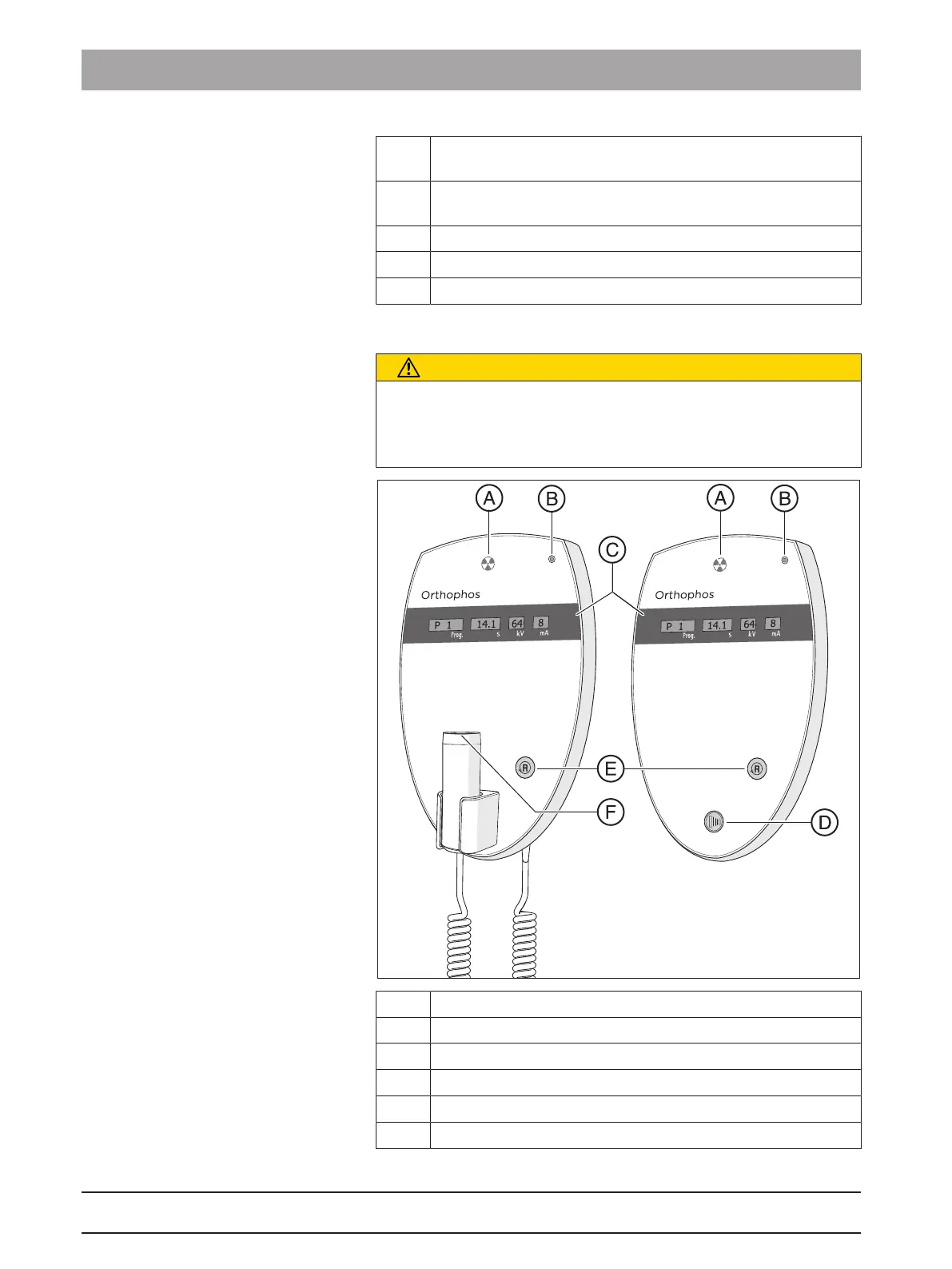

3.4.4 Remote control
CAUTION
Increased radiation
If several units are installed in the same room, the remote controls
must be suitably labeled to make it clear which control is for which
unit.
A Radiation indicator
B LED display "Unit ON"
C Display field
D Exposure release button
E "R" button to reverse the unit
F Exposure release button with coiled cable
