5 Operation
5.1 Acquiring the X-ray image
Dentsply Sirona
Operating Instructions Orthophos E
88
67 11 001 D3352
D3352.201.12.01.0203.2019
5.1.3.5
Canceling an exposure
An exposure that has been triggered can be canceled again at any time.
CAUTION
Pressing the R key moves the unit to the starting position.
A patient positioned in the unit may be injured by moving parts.
➢ Check that a patient is not positioned in the unit before moving it
to the starting position.
ü The exposure is released.

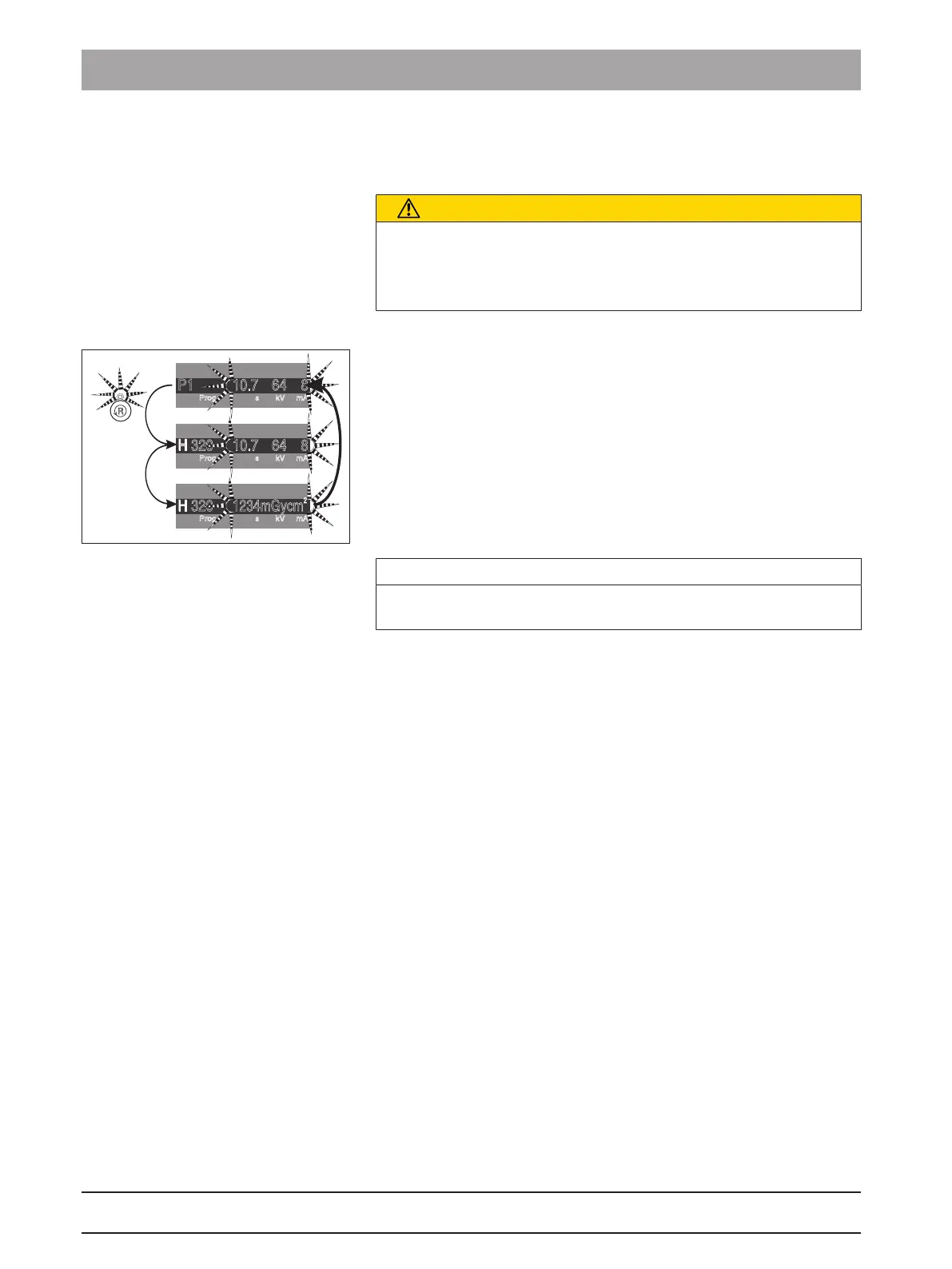

Prog.
S
kV
mA
P1 10.7 64 8
Prog.
S
kV
mA
H 320 10.7 64 8
R
:
:
Prog.
S
kV
mA
H 320
1234mGycm
2
:
:
1.
Let go of the exposure release button.
Ä The exposure is immediately terminated.
The confirmation of the exposure data is displayed on the
Multipad. The radiation time which has already elapsed, help
message H320 and the dose area product are alternately
displayed. The LED above the R key flashes.
2.
Guide the patient out of the unit.
3.
Press the R key.
Ä The rotating unit moves to the starting position.
Ä
The unit is now ready for the next exposure.
IMPORTANT
The program settings must be checked before the exposure is
repeated. Any changed program settings must be preselected again.
