FIREPLACE INSTALLATION
Continued

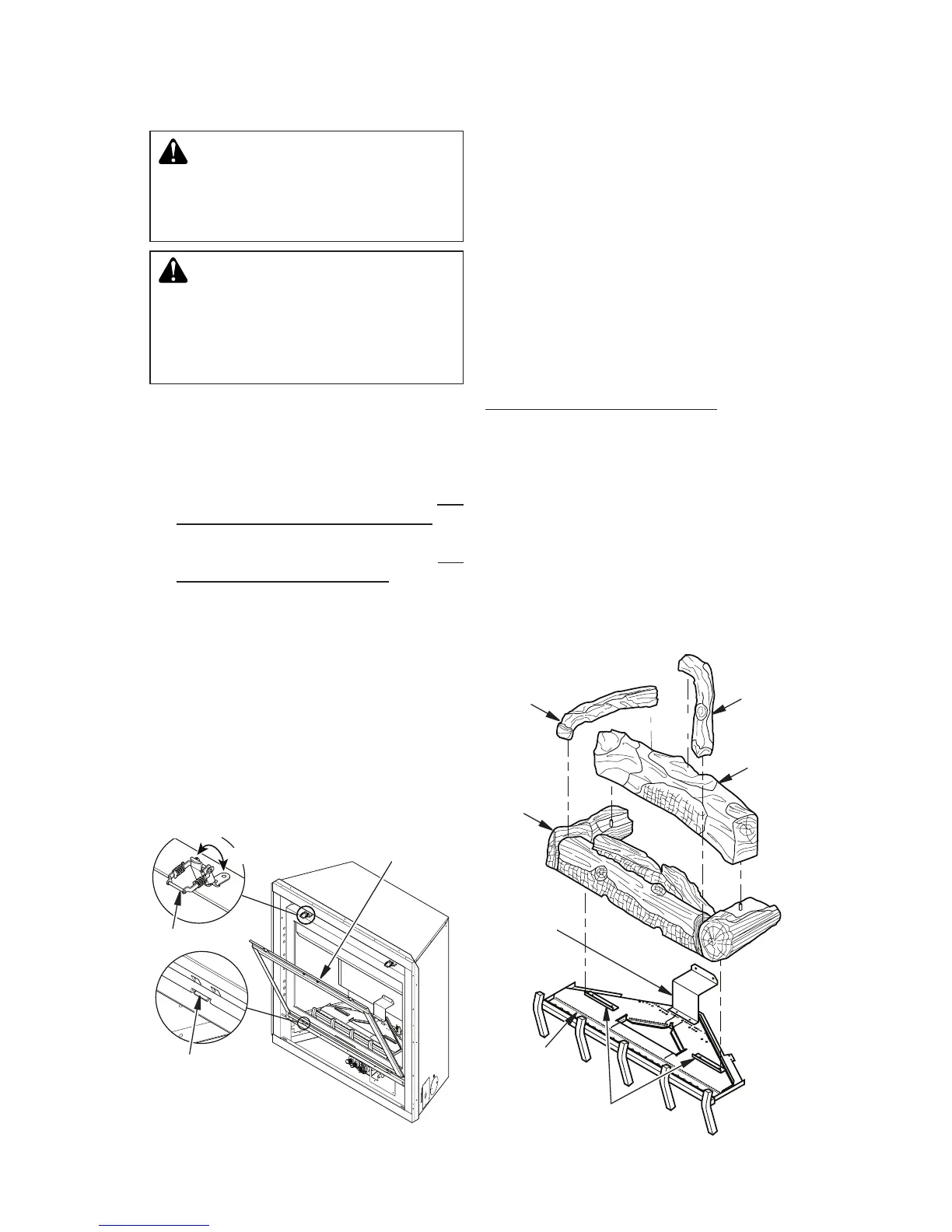

Figure 58 - Removing/Replacing Glass
Door
Figure 59 - Installing Logs
Top Left
Log
Front
Log
Top
Right
Log
Rear
Log
Rear Log
Stand
Log Mounts
Burner
Pan
Latch
UNLOCK
LOCK
Door Frame Tab
Glass Door
Panel
-
If replacement of glass is necessary, the
entire assembly, glass and frame, must be
replaced. If glass is broken, wear gloves and
tape remaining fragments onto frame.
1. Remove lower louver panel (see Re-
moving Lower Louver Access Panel and
Figure 56, page 30).
2. Remove top louver trim panel (see Re-
moving Top Louver Trim Panel and Figure
57, page 30).
3. Hold glass frame with one hand and with
other hand unlock two door latches found
on top of rebox to release tension on
door frame (see Figure 58).
4. Unhook locking clasp from tabs on door
frame. With both hands swing door panel
out while pivoting lower frame on lower
retaining bracket.
5. Lift lower frame tabs out from position-
ing slots found on lower frame retaining
bracket (see Figure 58).
6. Remount new frame in reverse order by
placing positioning tabs on glass frame
into slots in retaining bracket then swing-
ing door into sealed position and locking
two latches in place.
7. Replace top louver panel. Replace lower
louver panel.
A 4 piece ceramic log set comes packed
inside unit rebox. Removal of glass door is
necessary to unpack and assemble logs and
add hearth treatments. Follow steps under
Removing/Replacing Glass Door, page 30 to
access logs and burner.
Assemble logs and add burner treatments
as follows:
1. Position base log onto burner log mounts
(see Figure 59). Note: Cut out on bot-
tom should t over mounts and base log
should be positioned against rear panel.
2. Position holes on bottom of rear log over
pins on base log Figure 59).
3. Position top left log and top right log onto
rear log and base log as shown in (see
Figure 59).
