Desa P324 - Illustrated Parts Breakdown and Parts List

www.desatech.com
108660-01E30
3
13
13
9
NG
LP
8
8
4
9
12
10
11
6
2
5
1
7
KEY
NO. PART NO. DESCRIPTION QTY.
1 107742-03 Burner Pan 1
2 109794-01 Burner Tube 1
3 107748-01 Burner Bracket 1
4 107985-01 Pilot Shield 1
5 109793-01 Divider Pan 1
6 11209 Nut, #10-24 1
7 11147 Screw, #10-24x1/2 1
8 901066-01 Brass Air Mixer
(Natural Gas)
1
901066-02 Brass Air Mixer
(Propane/LP)
1
9 901064-12 Injector (Natural Gas) 1
901065-11 Injector (Propane/LP) 1
10 108084-01 Pilot (Natural Gas) 1
11 108085-02 Pilot Orice
(Propane/LP)
1
12 11102 Screw, #8-32x3/8 2
13 11165 Screw, #10x5/8 Mod.
Tr. Blk. Ox
2

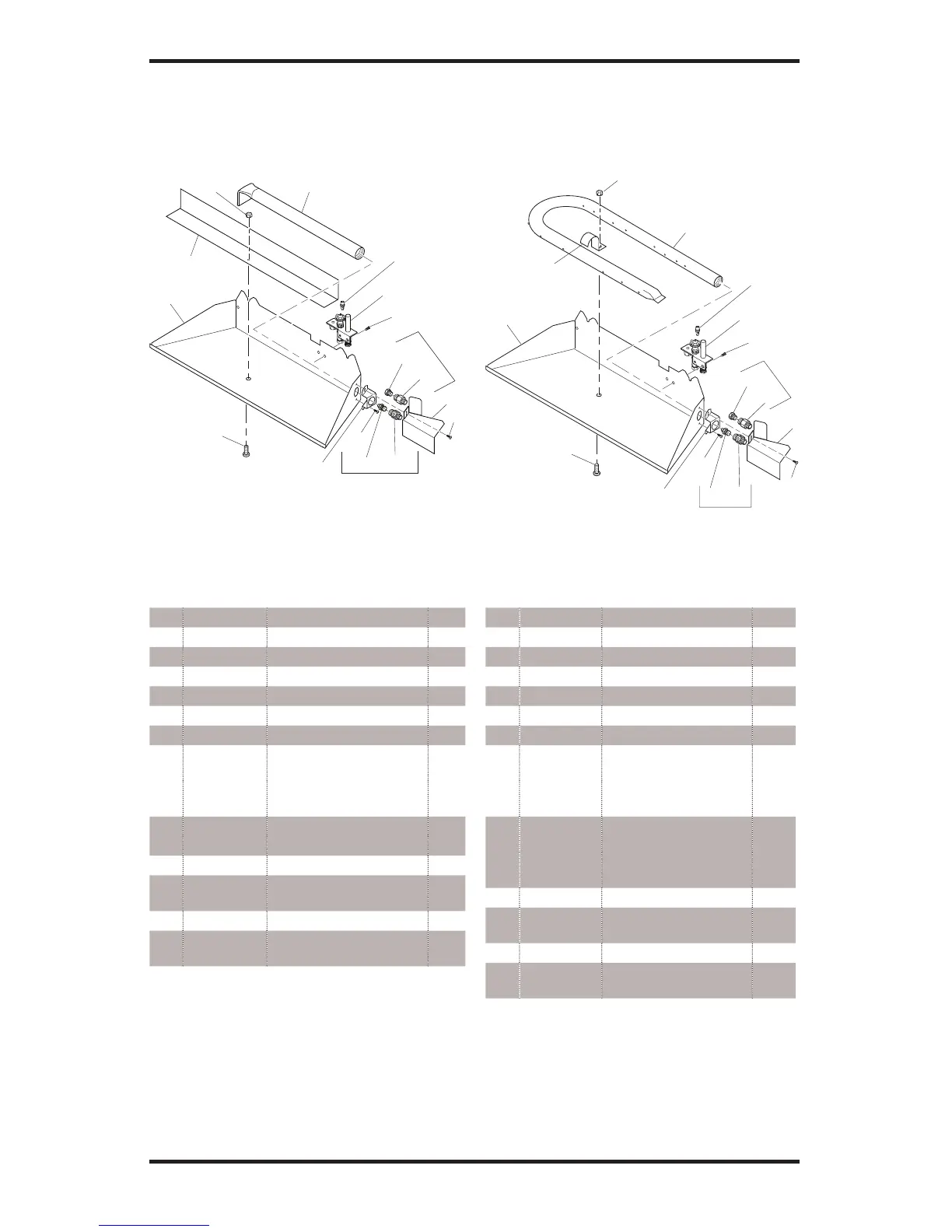

ILLUSTRATED PARTS BREAkDOWN AND PARTS LIST
BURNER ASSEMBLY
This list contains replaceable parts used in your heater. When ordering parts, follow the
instructions listed under Replacement Parts on page 25 of this manual.
KEY
NO. PART NO. DESCRIPTION QTY.
1 107742-03 Burner Pan 1
2 109037-01 Burner Tube 1
3 107748-01 Burner Bracket 1
4 107985-01 Pilot Shield 1
5 901681-01 Burner Clamp 1
6 11209 Nut, #10-24 1
7 11147 Screw, #10-24x1/2 1
8 901066-01 Brass Air Mixer
(Natural Gas)
1
901066-02 Brass Air Mixer
(Propane/LP)
1
9 901064-11 Injector
(Natural Gas)
1
901065-09 Injector
(Propane/LP)
1
10 108084-01 Pilot (Natural Gas) 1
11 108085-02 Pilot Orice
(Propane/LP)
1
12 11102 Screw, #8-32x3/8 2
13 11165 Screw, #10x5/8 Mod.
Tr. Blk. Ox
2
3
13
13
9
NG
LP
8
8
4
9
12
10
11
6
2
5
1
7
P324 and VP324 Models P325(B) and VP325(B) Models
