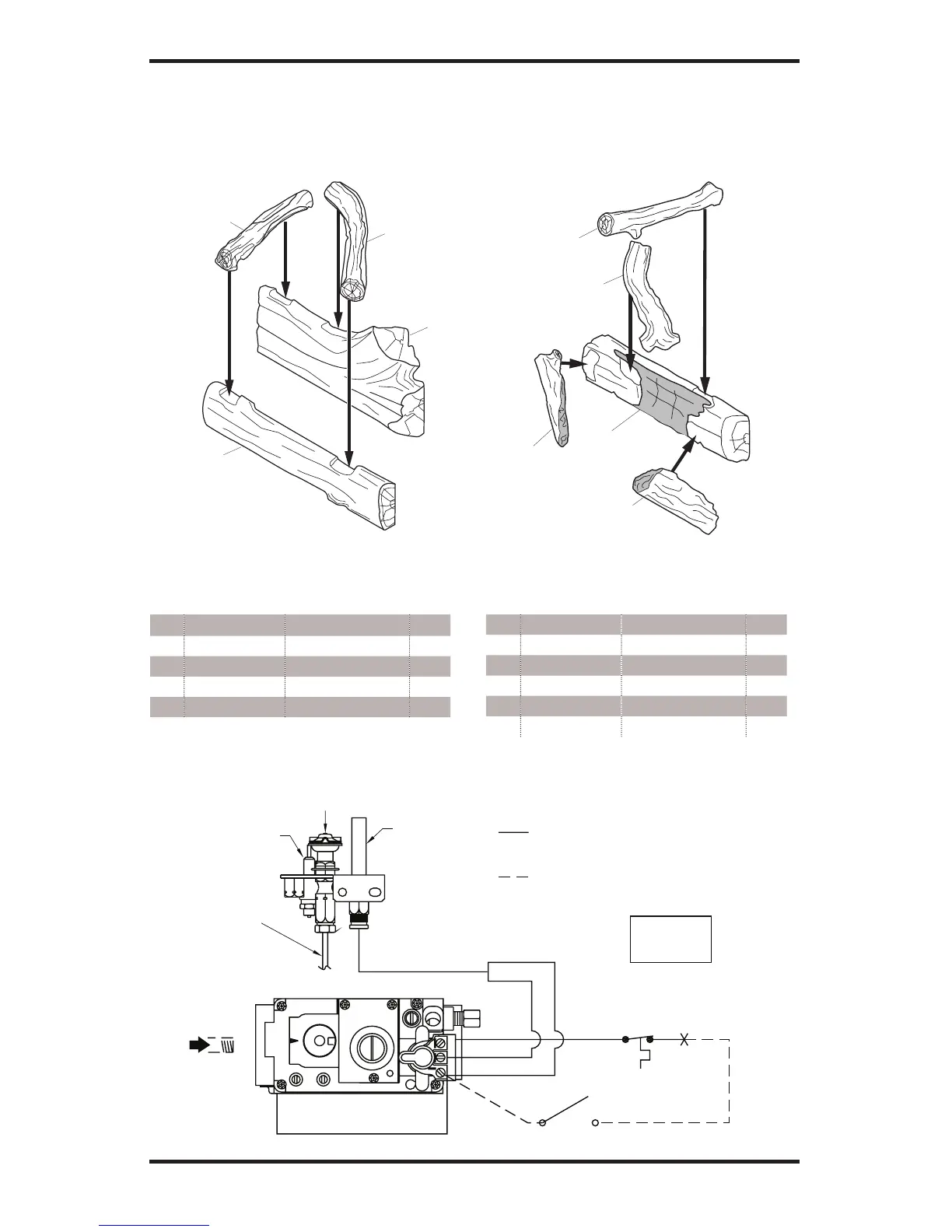

ILLUSTRATED PARTS BREAkDOWN AND PARTS LIST
LOG ASSEMBLY
This list contains replaceable parts used in your heater. When ordering parts, follow the
instructions listed under Replacement Parts on page 25 of this manual.
KEY
NO. PART NO. DESCRIPTION QTY.
109109-01 Log Set
1 105958-05 Front Log 1
2 105960-05 Rear Log 1
3 901100-02 Top Right Log 1
4 901102-02 Top Left Log 1
P324 and VP324 Models P325(B) and VP325(B) Models
1
4
2
3
1
2
3
4
5
KEY
NO. PART NO. DESCRIPTION QTY.
109100-02 Log Set
1 109421-01 Rear Log 1
2 109420-01 Front Right Log 1
3 108723-01 Front Left Log 1
4 108722-01 Top Y-Log 1
5 108720-01 Top Log
1
WIRING DIAGRAM
DO NOT
CONNECT
RED
REPLACE FACTORY WIRING WITH 105°C
EQUIVALENT OR HIGHER RATING
THERMOSTAT WIRE 18 GA. RED/WHITE
EXTERNAL WIRING USE ONLY CLASS 2
N.C.SW
(VENT SAFETY
SHUTOFF SWITCH)
WHITE
TH/TP
TP
TH
WALL SWITCH
TO 120V
THERMOPILE
PILOT
BURNER
IGNITOR
LINE
PILOT GAS
O
F
F
P
I
L
O
T
O
N
PILOT SAFETY WIRE
MAIN GAS
INCOMING
SUPPLY
