108660-01E 9
PRE-INSTALLATION
PREPARATION
Continued
FRAMING
1. Frame appliance enclosure as illustrated
in Figures 7 and 8.
Note: If a wall covering is used to line the
enclosure, then all measurements must
be from the surface of the covering.
2. Place the appliance into the framing and
secure it.
Note: If appliance is to be raised above
oor level, a platform must be built to
support the appliance.
3. Install the supply line to the appliance
using a 1/2" NPT black iron gas line ter-
minating 2
5
/
16
" above the bottom of the
appliance. The gas line may be installed
from either side or from the rear of the
appliance (see Figure 18, page 13).

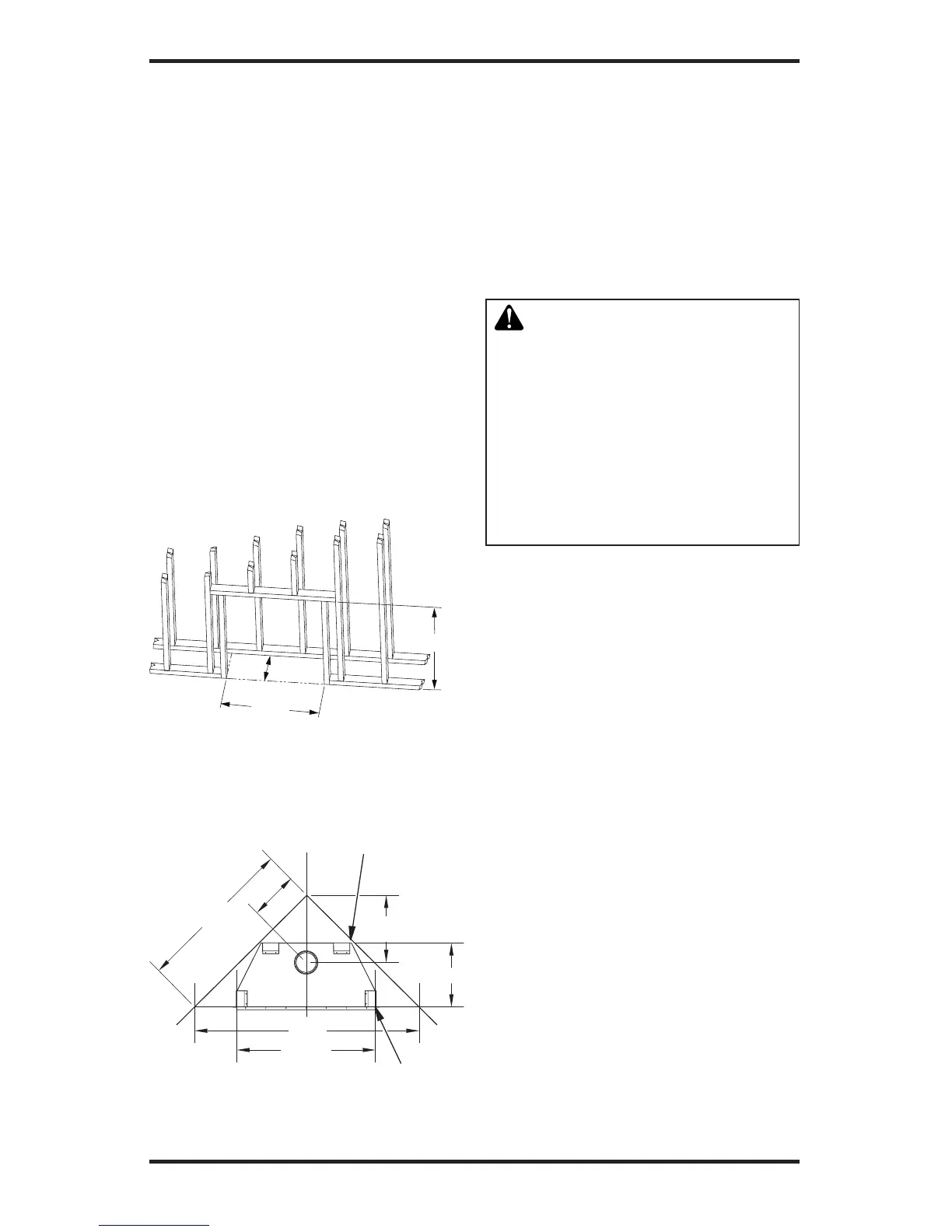

Figure 7 - Rough Opening for Installing
in Wall
16
1
/ 8 "
34
3
/ 4 "
36
5
/ 8 "
Figure 8 - Corner Installation Guidelines
16
3
/
4
"
12"
39
3
/
8
"
55
5
/
8
"
34
1
/
2
"
16"
These Dimensions Allow
for a 3/4" Clearance
at Sides and Back of
Fireplace. 0" Clearance is
Permitted
3/4" Clearance
Not Required at
Nailing Flanges
4. Feed exible gas line through one of three
gas line conduit sleeves and repack insu-
lation to cover any openings. Prepare the
incoming gas line with Teon tape or pipe
joint compound and hookup incoming gas
line to exible gas line.
Note: If 1/2" NPT black iron pipe does not
mate with tting at the end of exible gas
line, remove tting and replace with a 37
degree are 3/4"-12, 1/2" NPT (female)
tting.
 WARNING: When nishing
appliance,donotoverlapcom-
bustiblematerialontotheblack
front face. Brick, tile, or other
noncombustiblematerialsmay
beappliedtothefaceprovided
that any gap is between the
material used and the face is
caulkedwithanoncombustible
caulking.
VENTING INSTALLATION
A B-type venting system must be connected
to the appliance for venting to the outside of
the building.
The following section is provided as a guide
to a standard B-type vent installation.
Standing codes requirements concerning B-
type vent installations may vary within your
state, province or local codes jurisdiction.
Therefore, it is recommended that you check
with your local building codes for specic
requirements or in absence of local codes,
follow Section 7.0 of the current National Fuel
Gas Code NFPA No. 54/ANSI Z223.1 and in
Canada with CAN/CSA B149 for Category I
Systems Using Double Wall B-1 Vent Pipe.
This gas appliance must be vented to the
outdoors only and may not be terminated into
an attic space or into a chimney ue servicing
a solid fuel burning appliance.
This appliance may be vented through a
manufactured chimney system or a masonry
chimney using a B-vent adapter or a chim-
ney liner system if all are listed, inspected
and approved by local codes and/or building
authorities.
The examples shown in Figure 9, page 10
are typical of most B-vent installations and
code practices.
