Blast chiller Service Manual
47
Rev 07/04/2015

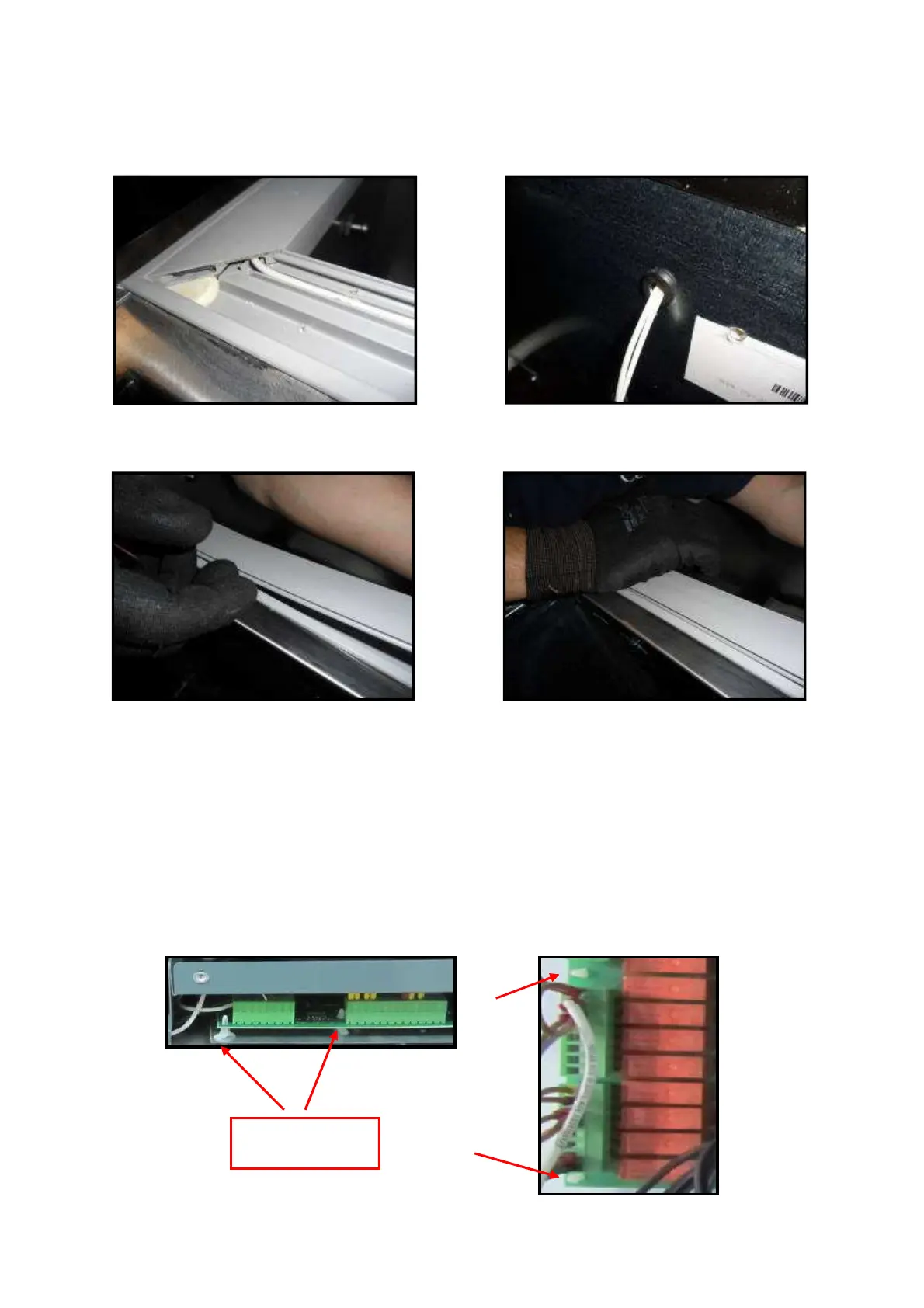

Disconnect the wire leads and remove the defective heater.
Insert the replacement heater in the channel and connect the wire leads.
Replace the plastic cover strips and snap them in place by hand.
4.9 REPLACING THE RELAY BOARD
a) Disconnect the power supply.
b) M ark and remove all wires.
c) The board is mounted with 6 plastic clips. Squeeze the tabs of each clip and
remove the board.
