CERTIFICATION—
CSA: Class I, Div. 1, Groups C & D (T4).
Class I, Div. 2, Groups A, B, C & D (T4).
DEMKO: EEx d e ib IIC, T5.
ATEX: 135898X
EN 50014: 1997 E, A1 & A2.
EN 50018: 2000 E.
EN 50019: 2000 E.
EN 50020: 2002 E.
On-board HART port:
EEx ia IIC T6.
Maximum separation distance between
receiver and communicator is 610 meters.
INGRESS PROTECTION—
IP67.
DIMENSIONS—
Module
Length: 11.5 inches (29 cm).
Diameter: 3.5 inches (9 cm) nominal.
4.5 inches (11 cm) maximum.
Mounting Plate
Height: 11.5 inches (29 cm)
Width: 6 inches (15 cm).
Designed to attach to a 4 inch nominal diameter pipe.
Refer to Figure 2 for mounting dimensions.
SHIPPING WEIGHT—
Transmitter with mounting plate: 35 pounds (16 kg).
Receiver with mounting plate: 35 pounds (16 kg).
WARRANTY—
3 year limited warranty from date of manufacture.
6 95-85561.1
FLEXIBLE CABLE
17
(43)
13.4
(34)
16.5
(42)
B2251
OPTIONAL
SUNSHADE
MOUNTING
POST
FLAT SURFACE MOUNT
13
(33)
15
(38)
6.5
(16.5)
POST MOUNT
SIDE VIEW OF TYPICAL OPECL

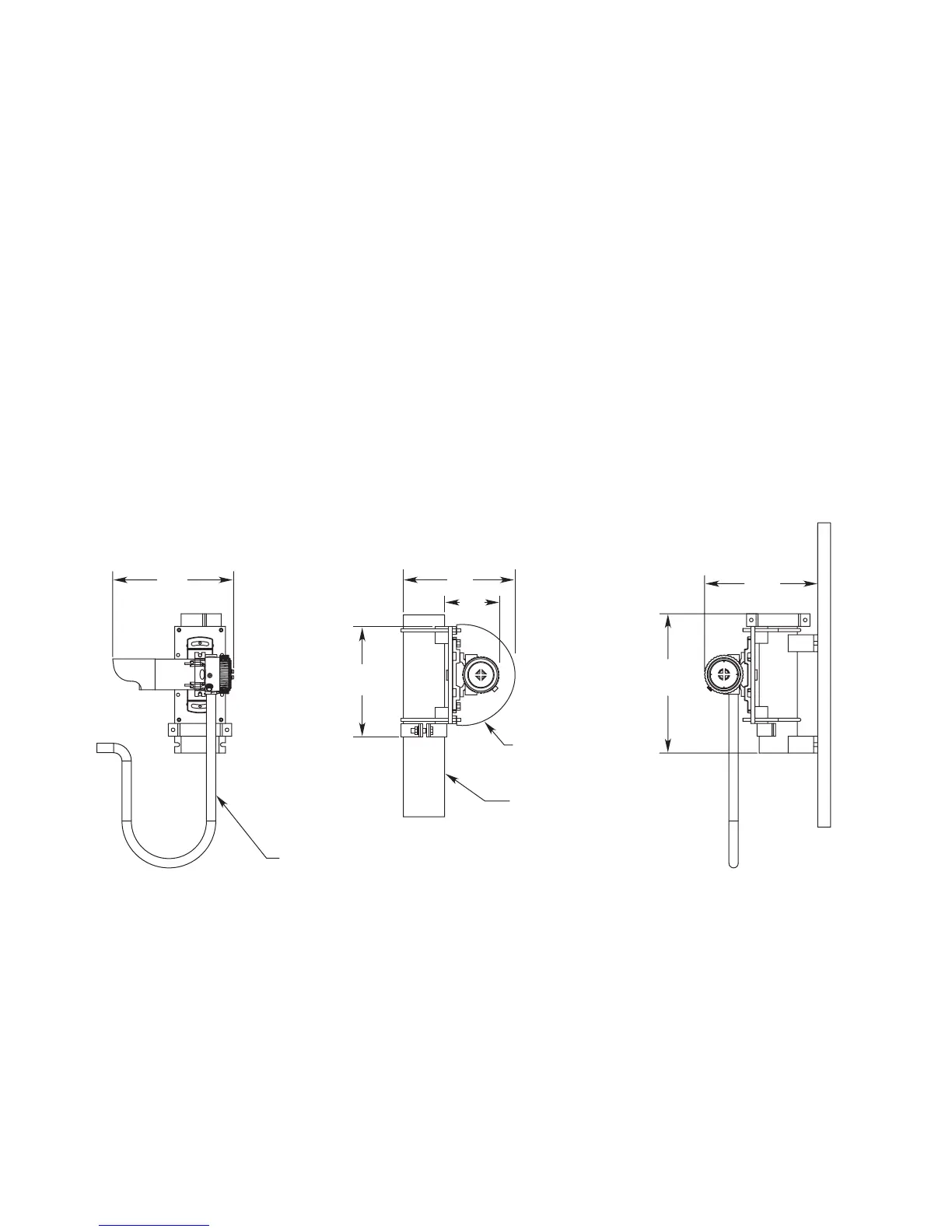

Figure 2—Dimensions of OPECL in Inches (cm)
