8555-M512-O1 Rev E y MedVue MV1 Owner’s 6
1 2 3 4 5
6 7 8 9
INSTALLATION, CONT.
Serial I/O Port

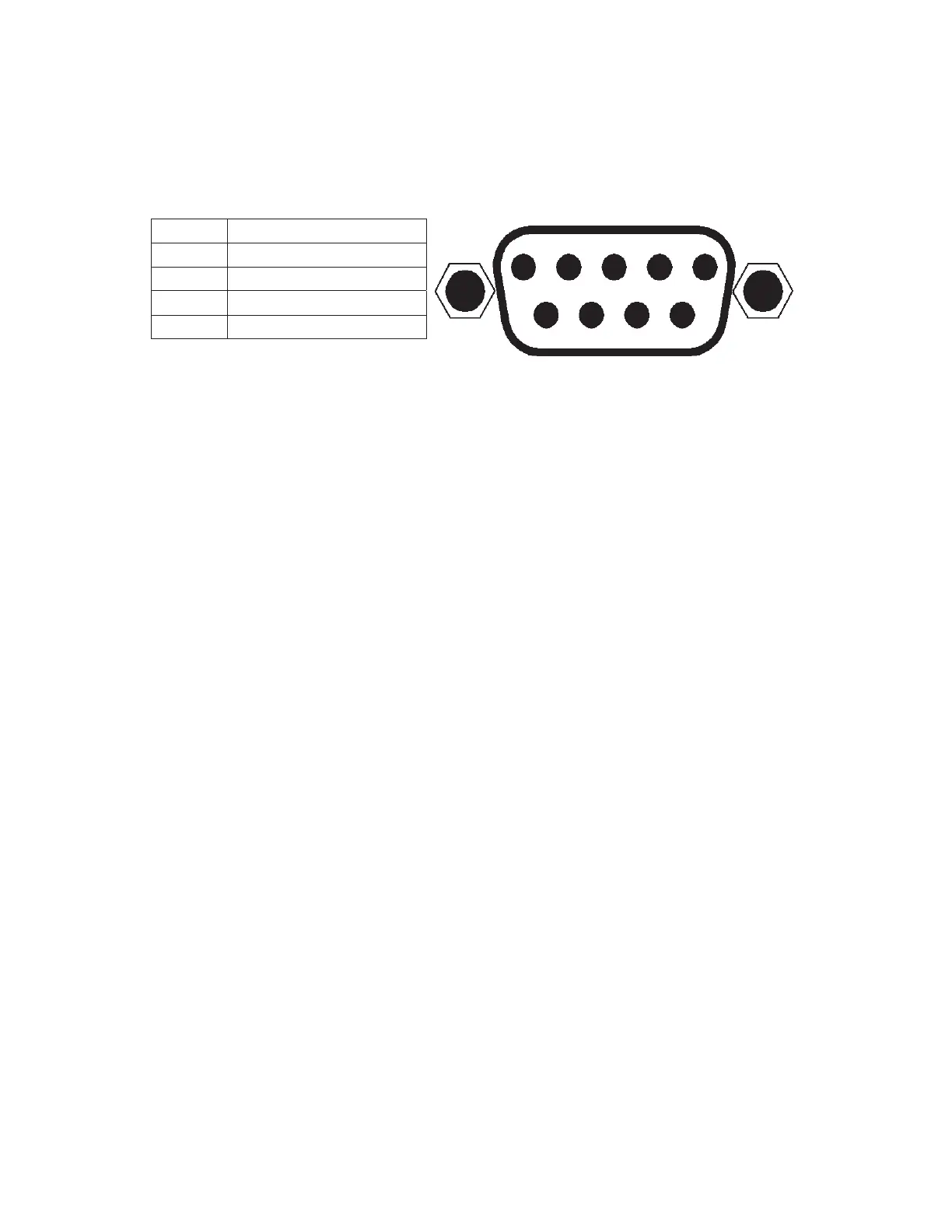

The serial I/O port is a 9-pin "D" connector on the rear panel of the MV1. Figure No. 5
shows the Serial I/0 connector along with the identity of the pins used. Make certain that the
pins are correctly identified before soldering a wire to them. Use the connector retaining
screws to hold the serial cable connector securely to the rear panel.
PIN NO. FUNCTION
2 DATA INPUT (RXD)
3 DATA OUTPUT (TXD)
5 SIGNAL GROUND (GND)
9 VCC or 5VDC
NOTE: Pins 1, 4, 6, 7, and 8 are not used.
Figure No. 5
The MV1 serial interface can be configured during the setup and calibration procedure or
during the setup review operation. Using either method, it is possible to select the operation
of the serial interface as well as select the baud rate.
x The baud rates supported are: 2400, 4800, 9600, 14.4k, 19.2K, 28.8K, 38.4K, 56K,
57.6K, and 115.2K baud.
x The data format is fixed at 8 bits, No parity, and 1 stop bit.
NOTE: The MV1 is shipped from the factory with the baud rate set to 9600 baud.
Bluetooth/Wi-Fi (Optional)
The optional Bluetooth/Wi-Fi requires the purchase of the MV1C Medical Weight Analyzer,
which includes the Redbird Wireless Transmitter module. Consult your network
administrator for instructions to connect the MV1C to your wireless network.
Ethernet (Optional)
The MVIP Ethernet option requires the purchase of the optional Ethernet Interface Option.
Once installed, connections to the MV1 are by CAT 5 or equivalent cable. Consult your
network administrator for the proper procedure to terminate and connect the cable.
