8555-M512-O1 Rev E y MedVue MV1 Owner’s 8
INSTALLATION, CONT.
Battery Installation/Replacement
To install or remove the batteries, the following steps should be followed:
1. Make sure the AC power adapter is unplugged.
2. Remove the MV1 from the mounting bracket and turn it over so that the display is
facing away from you.
3. Locate the rectangular panel on the back of the MV1 and remove the thumb screw.
Refer to Figure No. 1.
4. Remove the panel (lift straight up and slide it out) exposing the battery holder.
5. If installing new batteries, proceed to step 6. If replacing the batteries, remove all 6
batteries from the battery holder and then proceed to step 6.
6. Install the new 6 "C" size batteries in the holder, noting the polarity markings located
in the battery holder. Refer to Figure No. 6.
7. After placing all 6 batteries in holder, replace panel on back of the MV1 (slide tab into
slot on rear panel) and install thumb screw.
8. Turn the MV1 over (display facing up), and then press the ON/OFF key.
9. If display turns on, batteries have been installed correctly. If not, remove the panel
and check for one or more improperly positioned batteries.
10. Return the MV1 to the mounting bracket.
11. The MV1 is now ready for operation.

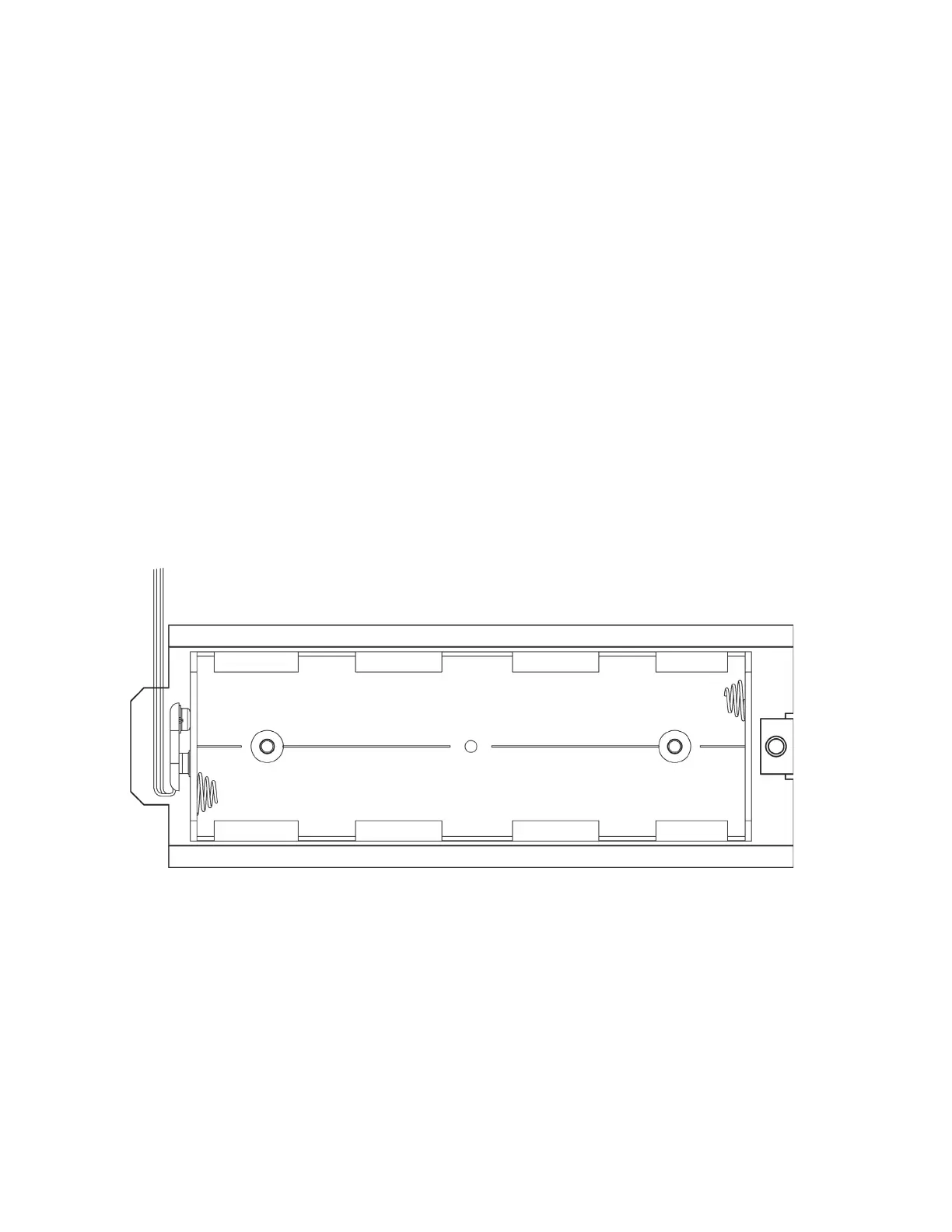

Figure No. 6
+
I
I
+
