8555-M512-O1 Rev E y MedVue MV1 Owner’s 50

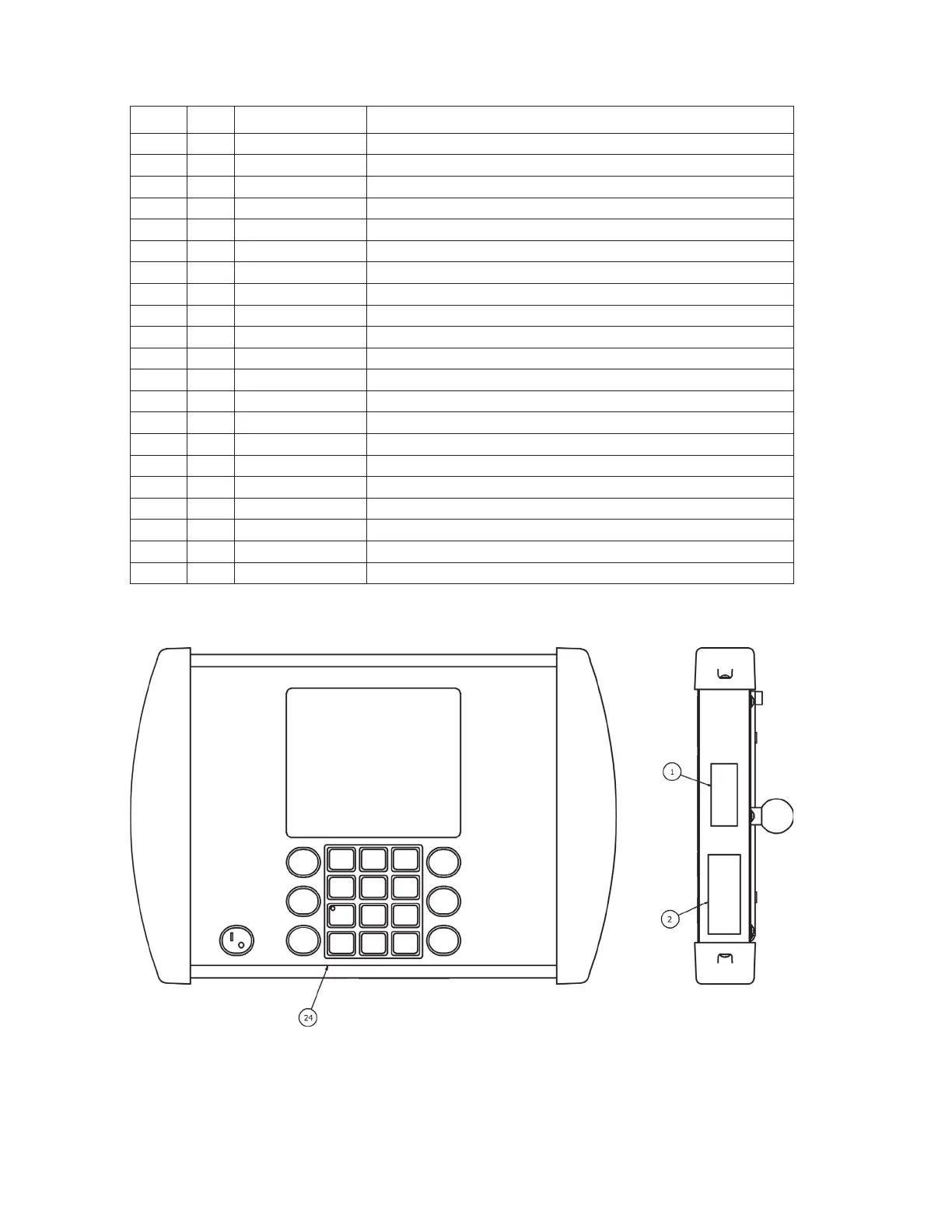

PARTS IDENTIFICATION
Item Qty Part Number Description
1 1 5930-B126-08 LABEL: ETL
2 1 593GR986 SERIAL TAG ASSY
4 1 6021-1065 SCW THUMB, MACHINE-SCW 06-32X.375
5 7 6021-2069 SCW TRUSS HEAD SHEET METAL #6 X .50
6 4 6021-6008 SCW TRUSS HEAD SHEET-METAL #6 X.375
7 2 6024-0126 WASHER FLAT FOR 5/32” POP RIVET
8 1 6560-1125 ADHESIVE LOCTITE 290 THRD LCKR, WICKING
10 4 6610-2000 JACK SOCKET, 1 EA (NO WASHERS OR NUTS)
11 1 6610-5119 BATTERY HOLDER 6-C CELLS
12 7 6680-0004 WASHER LOCK INT TOOTH, #6 TYPE A Z-PL
13 4 6680-0052 WASHER LOCK HELICAL, #4 REG Z-PL
14 2 6680-0214 RIVET POP, BH AL 5/32 DIA x .126-.187 GR
15 1 8555-0526-0A BACK PANEL WELDMENT
16 1 8555-0528-08 FRONT PANEL
17 1 8555-0529-08 BATTERY COVER
18 1 8555-B461-0A CABLE: BATTERY
20 1 8555-B510-08 RUBBER BALL
21 2 8555-C213-08 END CAP
23 1 8555-D501-0A PCB ASS’Y MEDVUE CONTROLLER
24 1 8555-0549-08 KEYPAD : MEDVUE
¾
1 MV1PWR OPTIONAL AC ADAPTER 110-240VAC/12VDC @ 1 AMP
¾ NOT SHOWN
To Next Page
