A-900A-900
Set-up/Operation
7
Important Parts
6
SET-UP FOR 9000/9001
WARNING
This is not a life support device and is
intended to be used on spontaneously
breathing adults.
NOTE
—Refer to Important Parts for part identification.
• Place unit on level, sturdy surface away from
heating vents, radiators, drapes and bedspreads
so that air intake is not restricted.
• Insert the appropriate power cord into the AC
power connector (
Figure 3).
• Plug the power cord into an appropriate wall
outlet. The display will show
Set Pres and CPAP
will increase to the prescribed pressure.
• Refer to
Figure 5 for LCD symbol definitions.
• Connect the 6-foot length of 22 mm diameter
tubing to the outlet port on the front of the unit
(
Figure 6). This is the port from which CPAP air
supply is provided.
• Connect the opposite end of the 22 mm tubing
to the mask and headgear assembly.
NOTE—Excess facial oils will deteriorate mask material.
To prolong mask life, wash face nightly before
wearing mask.
NOTE—Some tubing is prone to kinking. Flow can be
blocked causing apnea episodes to resume. Use
only 22 mm diameter smooth bore-type, kink-
resistant tubing.
• Position mask loosely on face. Adjust headgear
straps so mask is snug and comfortable (
Figure 7).
OPERATION OF THE 9000
CO
2
Rebreathing
CO
2
rebreathing is minimized during use by providing
3cmH
2
O minimum pressure, which creates airflow
through mask vent holes. It is important that mask
vent holes are not blocked.

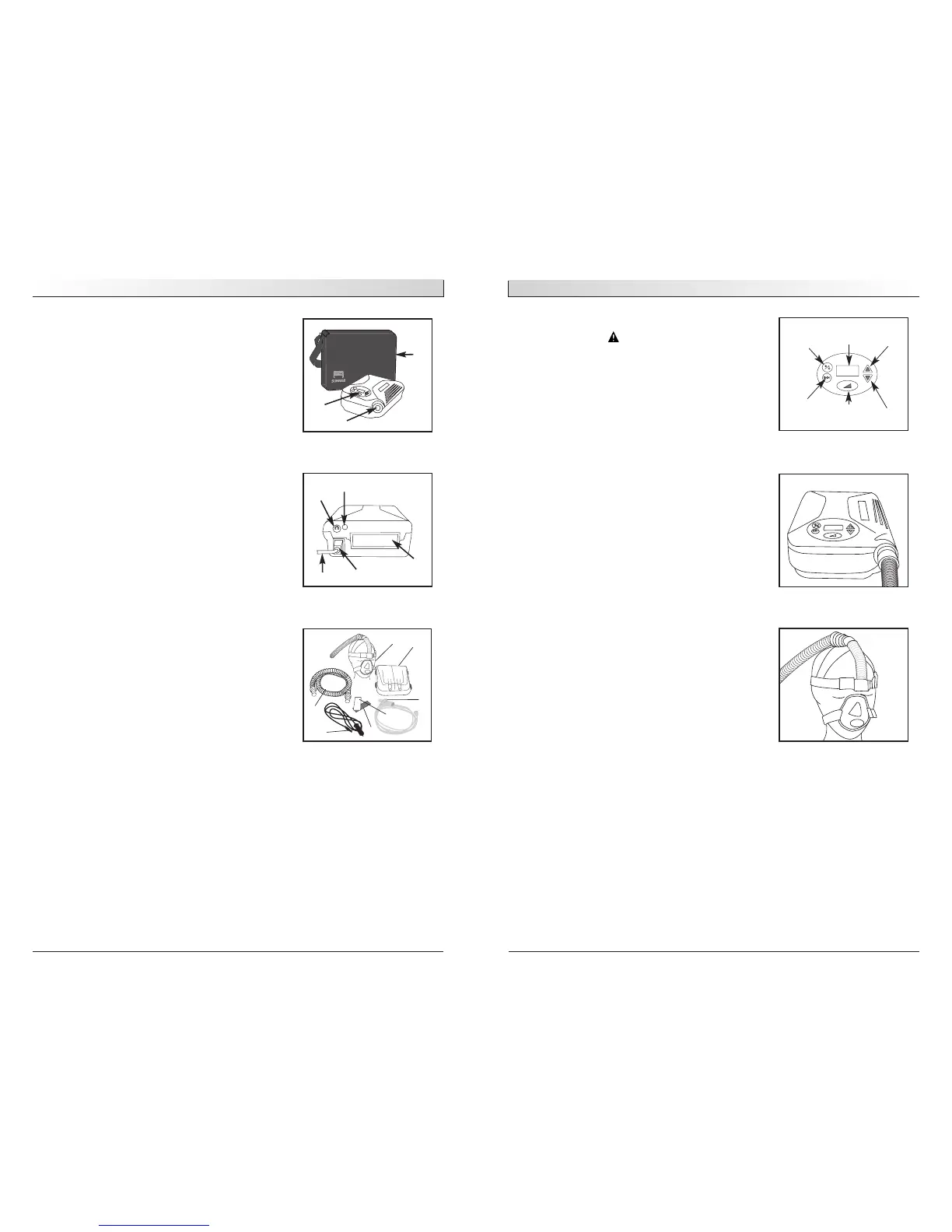

IMPORTANT PARTS - FIGURES 2 & 3
1. Keypad/LCD Display (refer to Figure 5 for LCD
symbol definition)
2. Outlet Port
3. Carrying Case
4. Air-Inlet Filter
5. DC input connector (model 9001 only)
6. AC Power Connector
7. DIN connector
8. Power Cord (assure proper configuration for outlet)
ACCESSORIES/REPLACEMENT ITEMS—FIGURE 4
1. CPAP Humidifier 9100D
F & P Humidifier
(not shown)
HC105
2. DeVilbiss Serenity™ Mask 9352D
(One size fits all. Includes headgear.)
Nasal CPAP Masks
(not shown)
Small 9351D-668
Medium 9351D-669
Medium/Small 9351D-667
Large 9351D-670
3. Air-Inlet Filter(4/pk) 8000D-602
4. Optional Fine Particle Filter 8000D-603
5. Oxygen Adapter 7353D-601
6. DeVilbiss Seal-Ring™ (4/pk)
(not shown)
Small 9351D-658
Medium or Medium/Small 9351D-659
Large 9351D-660
7. 6' 22 mm Tubing 7351D-616
8. Strap-Style Headgear
(not shown)
7351D-617
9. Cap-Style Headgear
(not shown)
7351D-627
10. Optional 12V DC power
cord (9001 only) 7304D-619
Ask your Sunrise Medical provider for information about
other DeVilbiss mask styles and sizes.
Figure 6
Figure 7
Figure 5
LCD Display
Window
ON/OFF
UP
Down
Delay
Button
Select
Forward
Figure 4
1
2
10
7
3
4
Figure 3
Figure 2
3
1
2
7
5
4
6
8
5
