DeVilbiss COBRA 3C - Setting Micrometer; Air Cap Indexing (Optional)

13 © 2014 Finishing Brands UK Ltd.

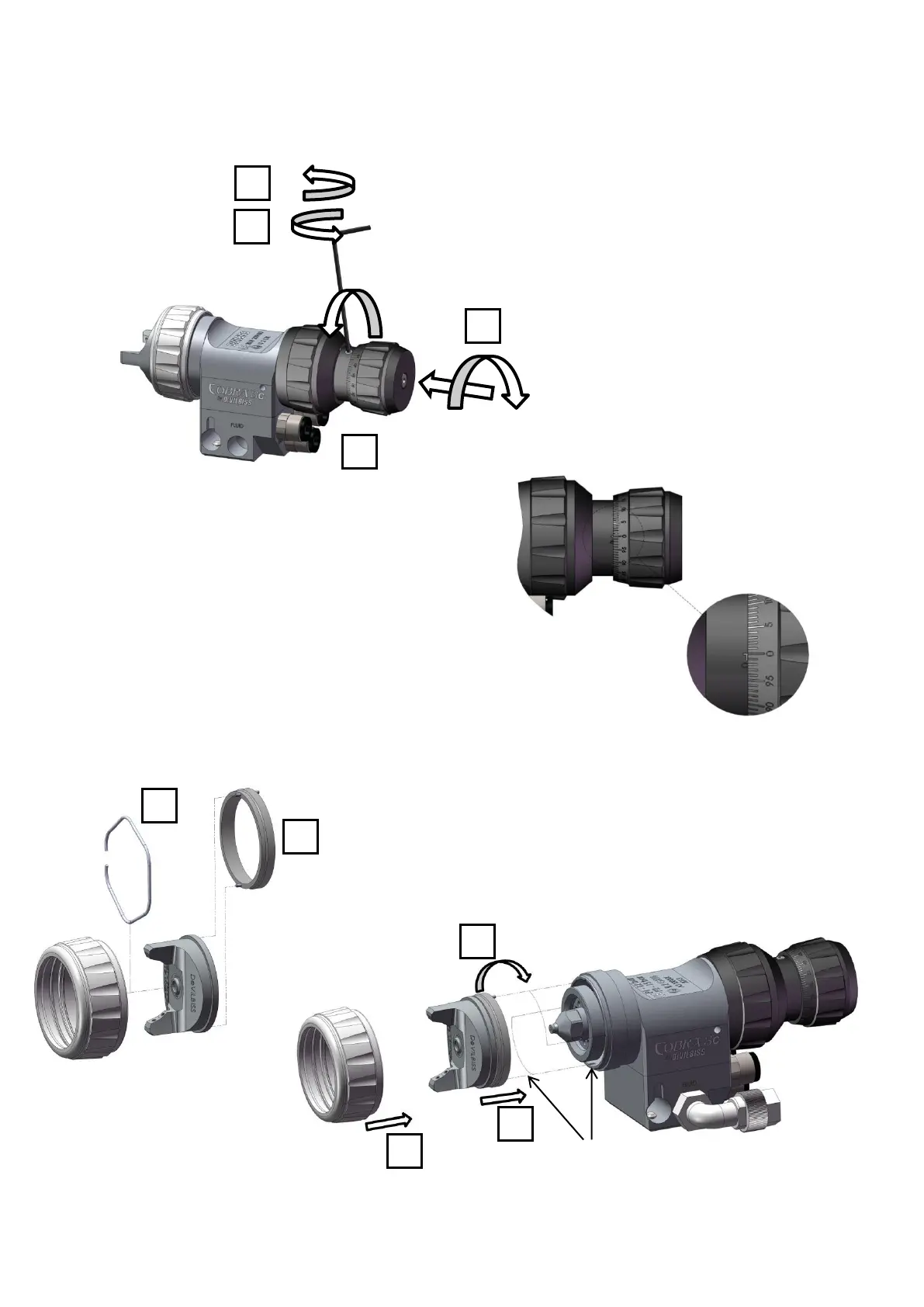

Setting Micrometer Zero (0mm Needle stroke)
Indexing Air Cap 90° (Optional)
1
3
2
4
Rotate barrel using
key as a lever until the
horizontal scale is in
line with “0” on the
knob. Re-tighten
screw.
Screw in knob until it
touches stop.
Note: Do not over
tighten.
1.5mm
3
5
4
Orientate Air Cap and
engage pins into
location holes in gun.
Remove Snap Ring holding Air Cap into
Retaining Ring with a small screwdriver
blade; assemble optional Indexing Ring
(SPA-112) onto the Air Cap by engaging
pins into the location holes.
1
2
