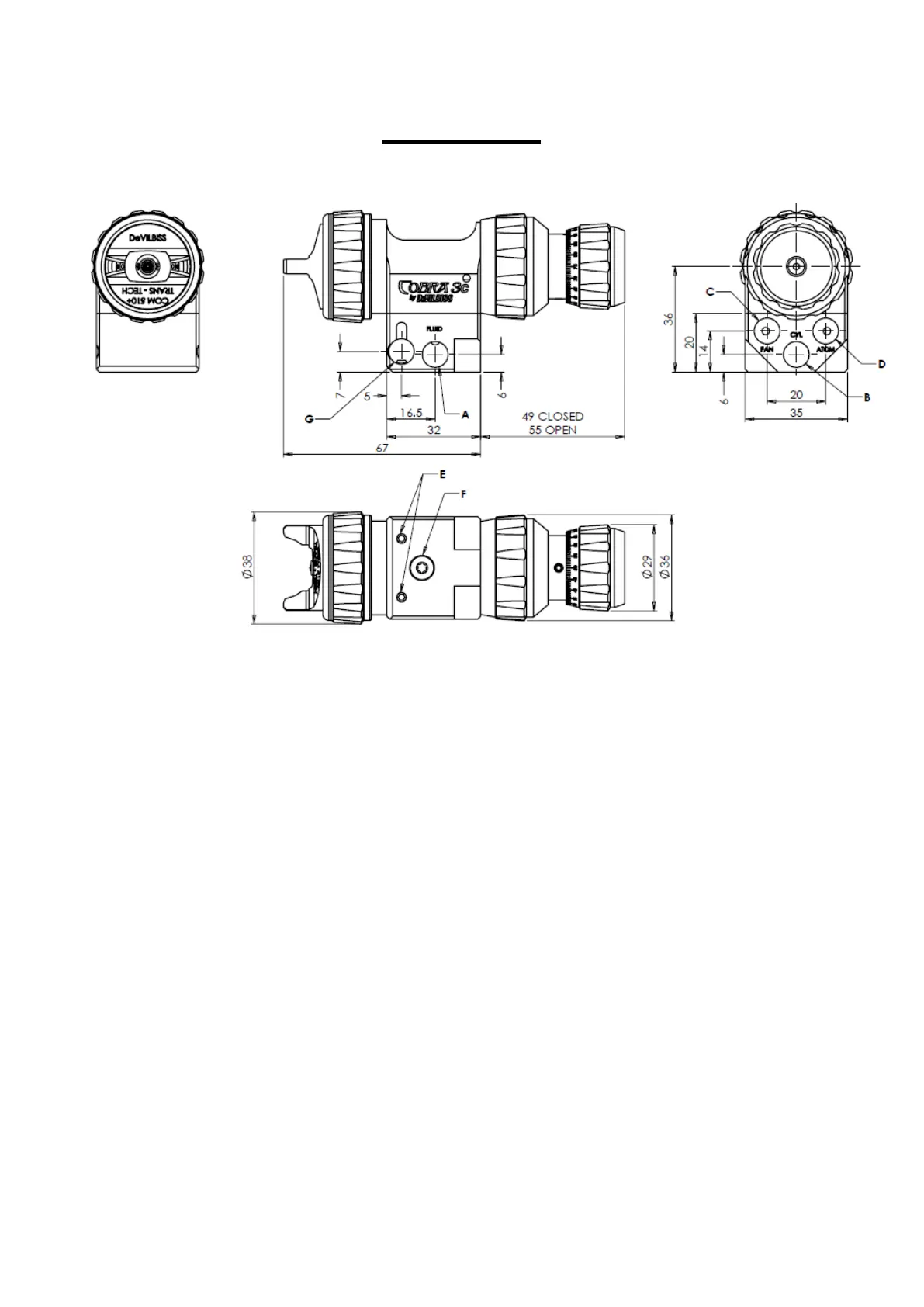

Dimensions
A - FLUID INLET (x2)
1
/
8
” BSP
B- TRIGGER / CYLINDER AIR INLET
1
/
8
” BSP
C- LENGTH AIR INLET
1
/
8
” BSP
D- PATTERN AIR INLET
1
/
8
” BSP
E- M6 MOUNTING HOLES (x2)
F- M4 BODY / MANIFOLD CONNECTION HOLE
