Air Connection
Maintenance
Key to Symbols

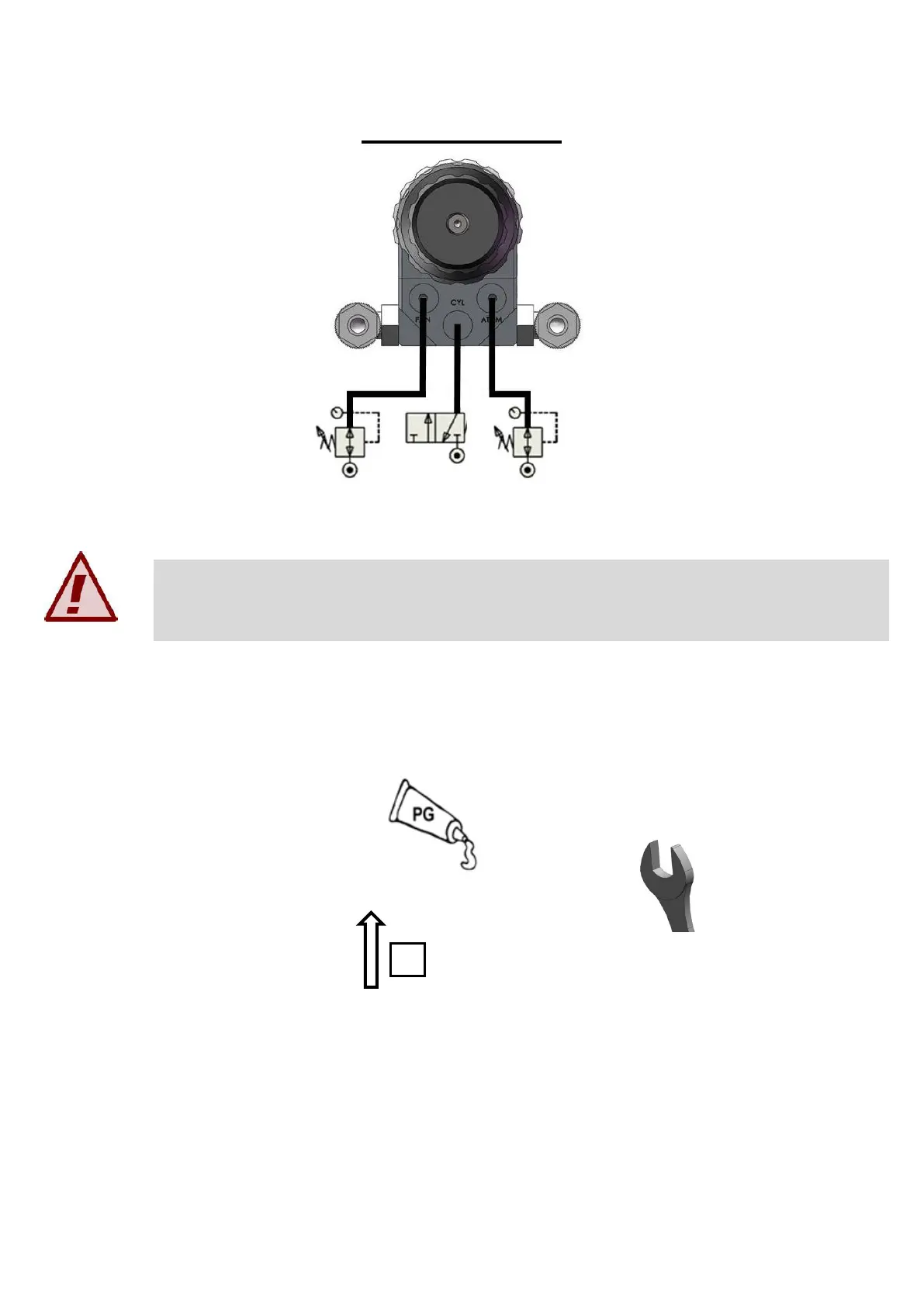

Fan air supply
Pressure regulator
0-1 Bar / 0-15 psi recommended
12 Bar / 174 psi maximum
Trigger / Cylinder Air
3/2 Valve
3.5-6 Bar / 51-87 psi
Atom air supply
Pressure regulator
0-1 Bar / 0-15 psi recommended
12 Bar / 174 psi maximum
Lubricate with Petroleum Grease
Tool type & size required
Component direction arrow
For dis-assembly and sequence
number. (Reverse sequence to
Re-assemble).
Important: The spray gun must be earthed to dissipate any electrostatic charges which may be
created by fluid or air flows. This can be achieved through the spray gun mounting, or conductive
air/fluid hoses. Electrical bond from the spray gun to earth should be checked with an Ohm meter.
A resistance of less than 10
6
Ohms is recommended
