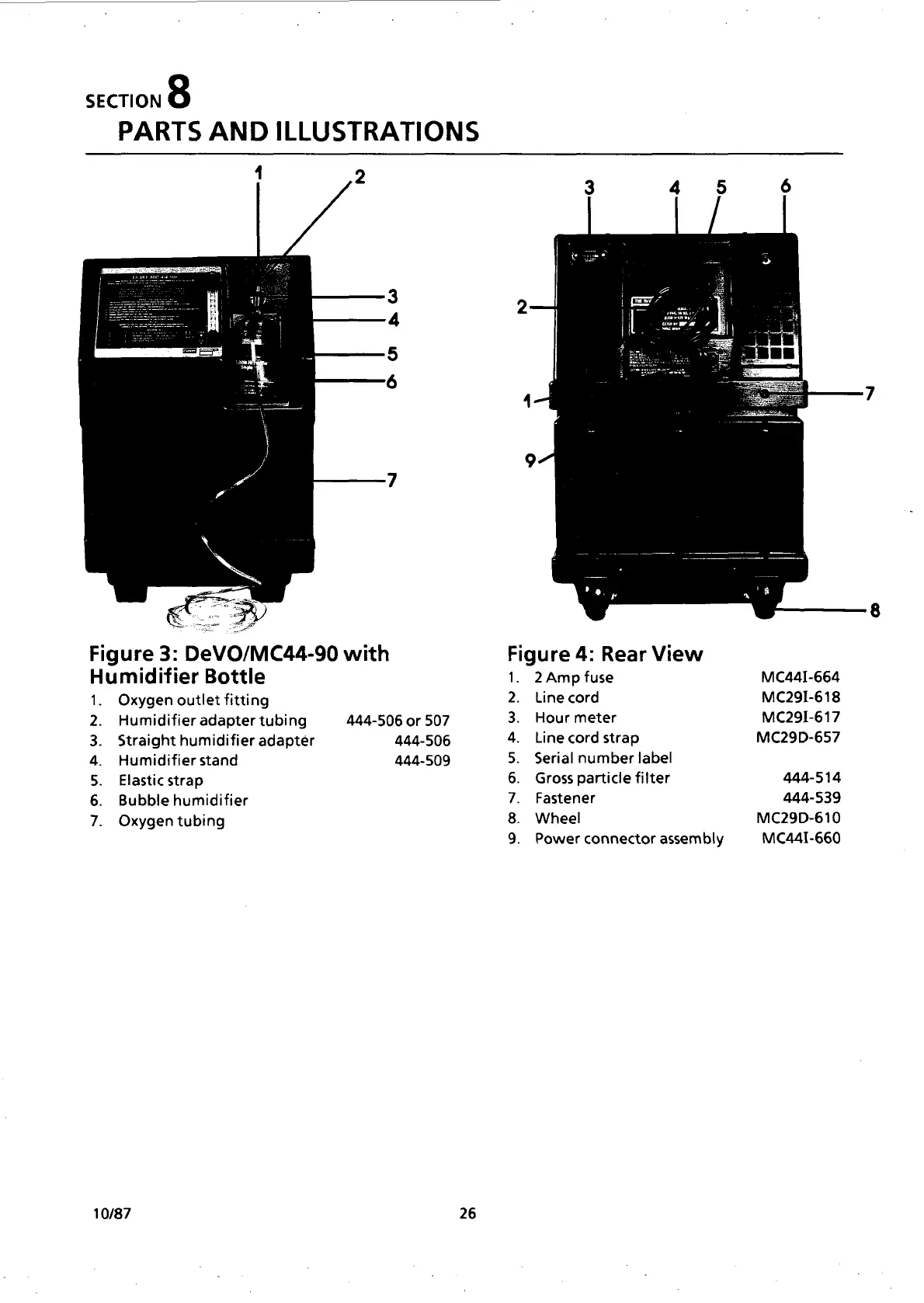

DeVilbiss DeVO/MC44-90 - Page 28

SECTION 8
PARTS AND ILLUSTRATIONS
1 2
3 2
4
5
6
4
9
7
Figure 3: DeVO/MC44-90 with Figure 4: Rear View
Humidifier Bottle 1. 2Amp fuse MC441-664
1. Oxygen outlet fitting 2. Line cord MC291-618
2. Humidifier adapter tubing 444-506 or 507 3. Hour meter MC291-617
3. Straight humidifier adapter 444-506 4. Line cord strap MC29D-657
4. Humidifier stand 444-509 5. Serial number label
5.
Elastic
strap
6.
Gross
particle
filter
444-514
6. Bubble humidifier 7. Fastener 444-539
7. Oxygen tubing 8. Wheel MC29D-610
9. Power connector assembly MC441-660
10/87 26
