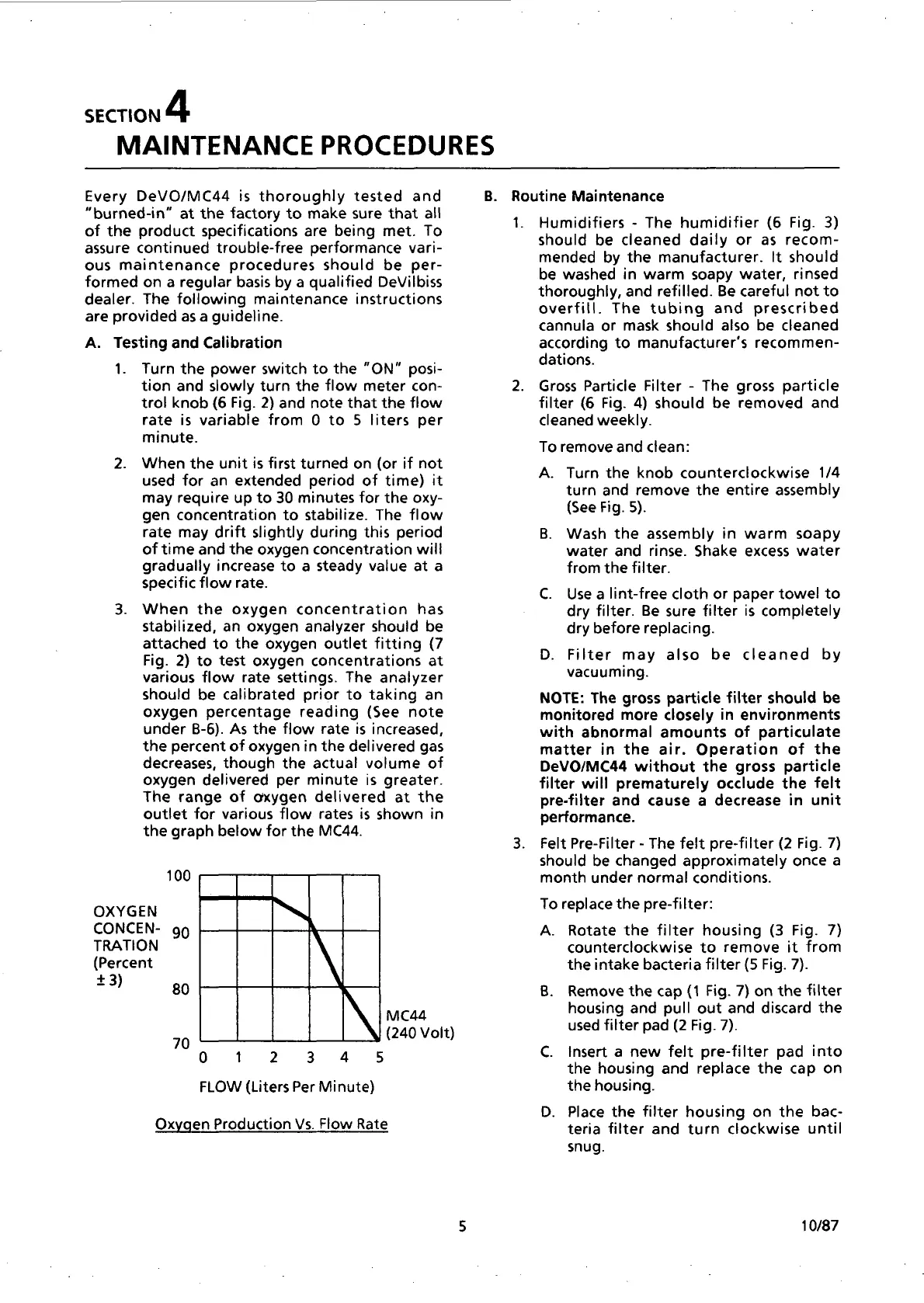

SECTION 4
MAINTENANCE PROCEDURES
Every DeVO/MC44 is thoroughly tested and
"burned-in“ at the factory to make sure that all
of the product specifications are being met. To
assure continued trouble-free performance vari-
ous maintenance procedures should be per-
formed on a regular basis by a qualified DeVilbiss
dealer. The following maintenance instructions
are provided as a guideline.
A. Testing and Calibration
1.
OXYGEN
CONCEN- 90
TRATION
(Percent
+3)
Turn the power switch to the “ON” posi-
tion and slowly turn the flow meter con-
trol knob (6 Fig. 2) and note that the flow
rate is variable from 0 to 5 liters per
minute.
When the unit is first turned on (or if not
used for an extended period of time) it
may require up to 30 minutes for the oxy-
gen concentration to stabilize. The flow
rate may drift slightly during this period
of time and the oxygen concentration will
gradually increase to a steady value at a
specific flow rate.
When the oxygen concentration has
stabilized, an oxygen analyzer should be
attached to the oxygen outlet fitting (7
Fig. 2) to test oxygen concentrations at
various flow rate settings. The analyzer
should be calibrated prior to taking an
oxygen percentage reading (See note
under B-6). As the flow rate is increased,
the percent of oxygen in the delivered gas
decreases, though the actual volume of
oxygen delivered per minute is greater.
The range of oxygen delivered at the
outlet for various flow rates is shown in
the graph below for the MC44.
100
80
MC44
(240 Volt)
70
ο 1 2 3 4 5
FLOW (Liters Per Minute)
Oxygen Production Vs. Flow Rate
B. Routine Maintenance
1.
Humidifiers - The humidifier (6 Fig. 3)
should be cleaned daily or as recom-
mended by the manufacturer. It should
be washed in warm soapy water, rinsed
thoroughly, and refilled. Be careful not to
overfill. The tubing and prescribed
cannula or mask should also be cleaned
according to manufacturer's recommen-
dations.
Gross Particle Filter - The gross particle
filter (6 Fig. 4) should be removed and
cleaned weekly.
To remove and clean:
A. Turn the knob counterclockwise 1/4
turn and remove the entire assembly
(See Fig. 5).
B. Wash the assembly in warm soapy
water and rinse. Shake excess water
from the filter.
C. Use a lint-free cloth or paper towel to
dry filter. Be sure filter is completely
dry before replacing.
D. Filter may also be cleaned by
vacuuming.
NOTE: The gross particle filter should be
monitored more closely in environments
with abnormal amounts of particulate
matter in the air. Operation of the
DeVO/MC44 without the gross particle
filter will prematurely occlude the felt
pre-filter and cause a decrease in unit
performance.
Felt Pre-Filter - The felt pre-filter (2 Fig. 7)
should be changed approximately once a
month under normal conditions.
To replace the pre-filter:
A. Rotate the filter housing (3 Fig. 7)
counterclockwise to remove it from
the intake bacteria filter (5 Fig. 7).
B. Remove the cap (1 Fig. 7) on the filter
housing and pull out and discard the
used filter pad (2 Fig. 7).
C. Insert a new felt pre-filter pad into
the housing and replace the cap on
the housing.
D. Place the filter housing on the bac-
teria filter and turn clockwise until
snug.
10/87
