SECTION 8
PARTS AND ILLUSTRATIONS

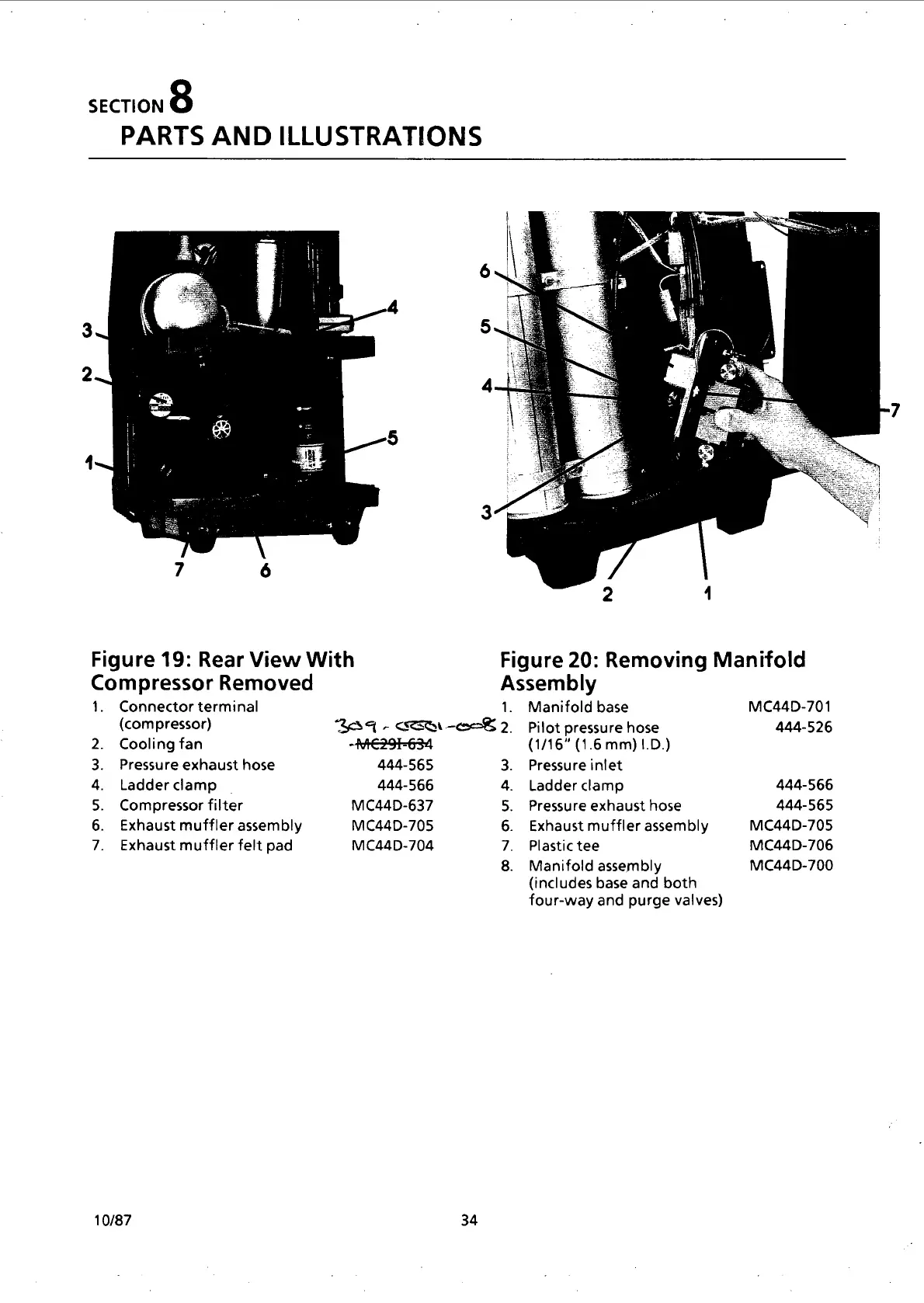

Figure 19: Rear View With
Compressor Removed
1.
NOUAWN
Connector terminal
(compressor)
Cooling fan
Pressure exhaust hose
Ladder clamp —
Compressor filter
Exhaust muffler assembly
Exhaust muffler felt pad
10/87
ME291634
444-565
444-566
MC44D-637
MC44D-705
MC44D-704
Figure 20: Removing Manifold
Assembly
1.
aq. ant 2.
ONAN
PW
Manifold base
Pilot pressure hose
(1/16" (1.6 mm) !.D.)
Pressure inlet
Ladder clamp
Pressure exhaust hose
Exhaust muffler assembly
Plastic tee
Manifold assembly
(includes base and both
four-way and purge valves)
MC44D-701
444-526
444-566
444-565
MC44D-705
MC44D-706
MC44D-700
