SECTION 8
PARTS AND ILLUSTRATIONS

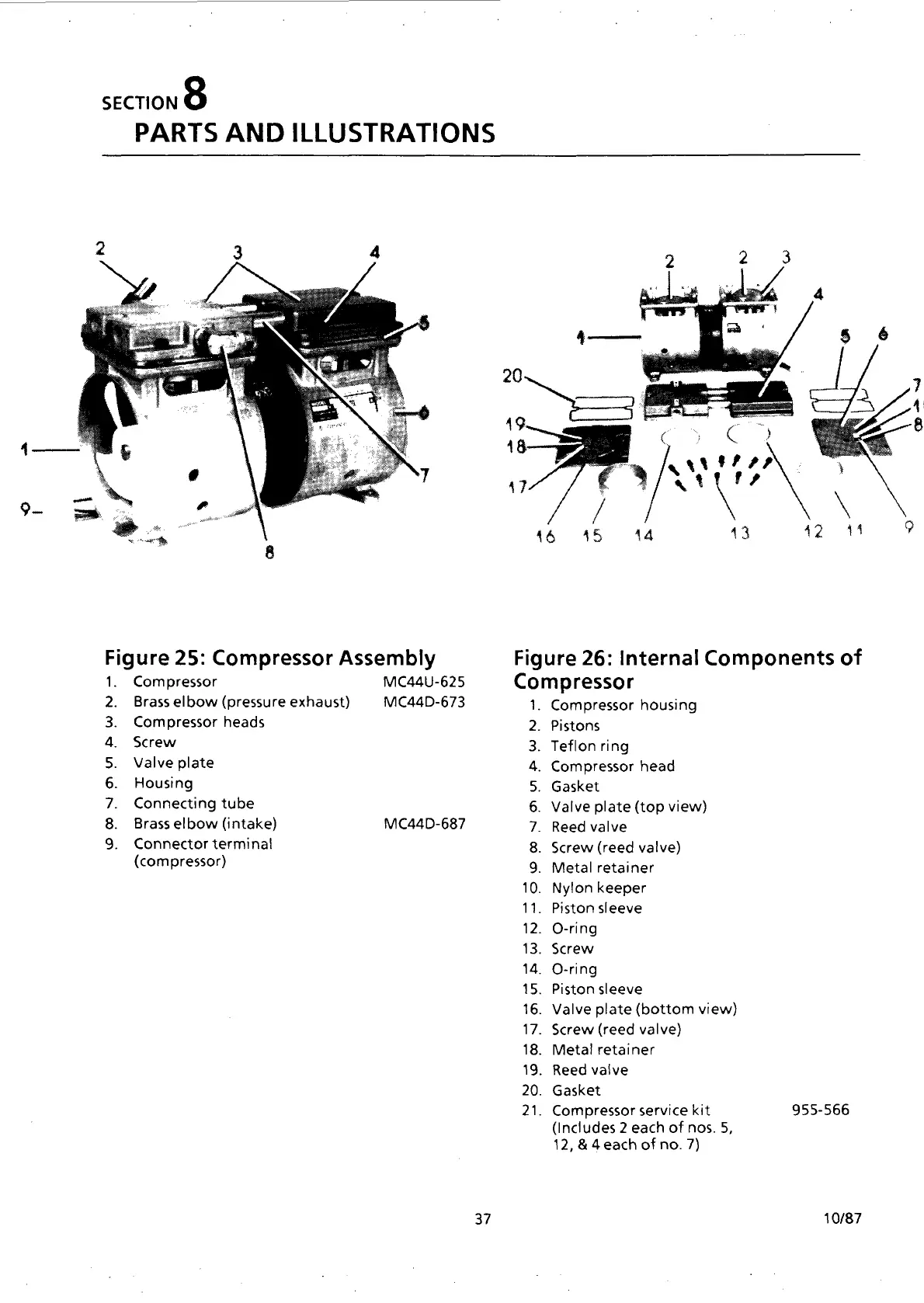

Figure 25: Compressor Assembly
Compressor
Brass elbow (pressure exhaust)
Compressor heads
Screw
Valve plate
Housing
Connecting tube
Brass elbow (intake)
Connector terminal
(compressor)
MC44U-625
MC44D-673
MC44D-687
DO
NAU
Bwin
37
Figure 26: Internal Components of
Compressor
Compressor housing
Pistons
Teflon ring
Compressor head
Gasket
Valve plate (top view)
Reed valve
Screw (reed valve)
Metal retainer
Nylon keeper
. Piston sleeve
O-ring
. Screw
. O-ring
Piston sleeve
. Valve plate (bottom view)
. Screw (reed valve)
Metal retainer
. Reed valve
. Gasket
. Compressor service kit
955-566
(Includes 2 each of nos. 5,
12, &4 each of no. 7)
10/87
