DeVilbiss DeVO/MC44-90 - Page 42

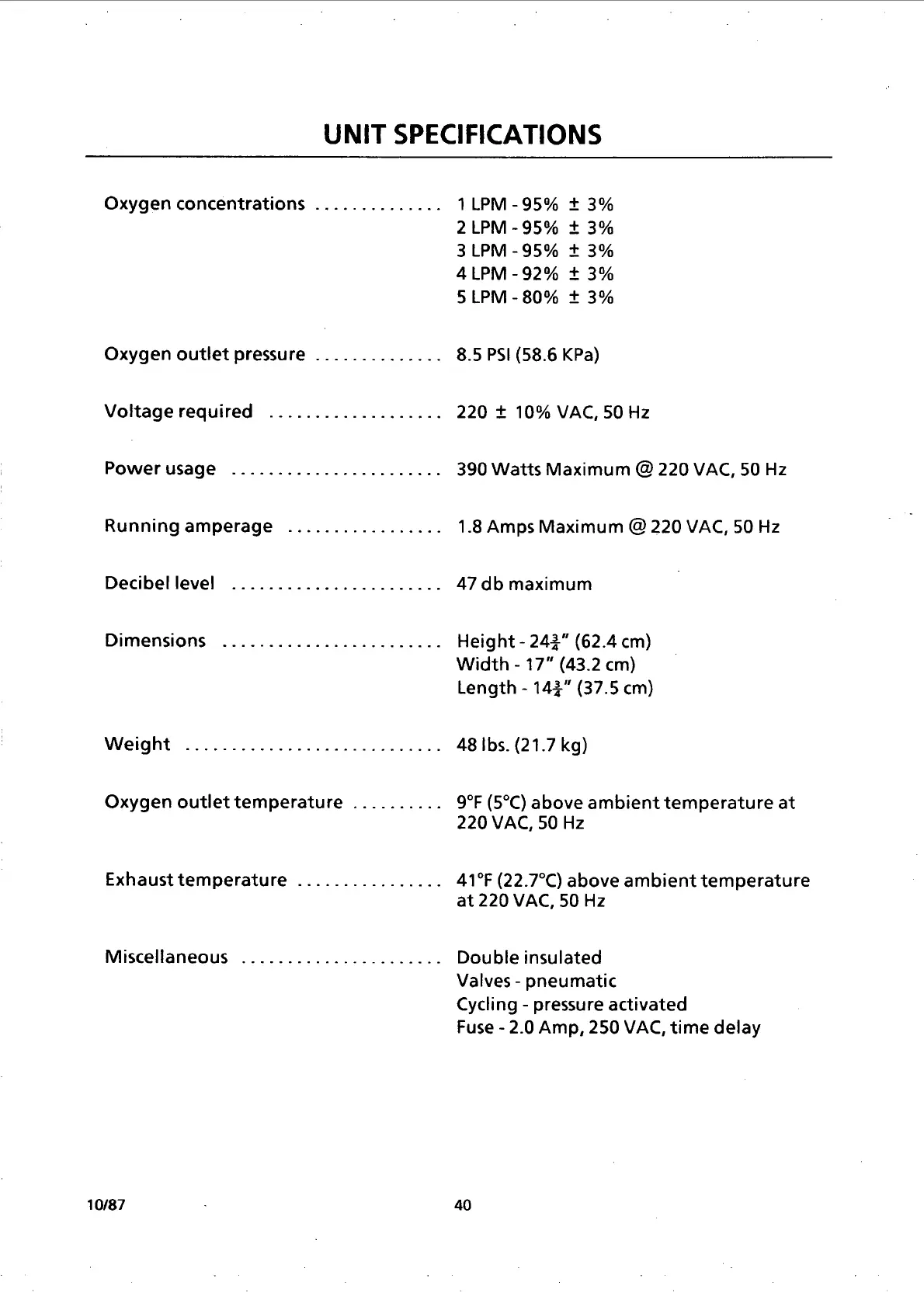

UNIT SPECIFICATIONS
Oxygen concentrations
Oxygen outlet pressure
Voltage required
Power usage
Running amperage
Decibel level
Dimensions
10/87
1 LPM - 95%
2 LPM - 95%
3 LPM - 95%
4 LPM -92%
5 LPM - 80%
+ 3%
+ 3%
+ 3%
+ 3%
+ 3%
8.5 PSI (58.6 KPa)
220 + 10% VAC, 50 Hz
390 Watts Maximum @ 220 VAC, 50 Hz
1.8 Amps Maximum @ 220 VAC, 50 Hz
47 db maximum
Height - 243” (62.4 cm)
Width - 17” (43.2 cm)
Length - 143" (37.5 cm)
48 Ibs. (21.7 kg)
9°F (5°C) above ambient temperature at
220 VAC, 50 Hz
41°F (22.7°C) above ambient temperature
at 220 VAC, 50 Hz
Double insulated
Valves - pneumatic
Cycling - pressure activated
Fuse - 2.0 Amp, 250 VAC, time delay
40
