seT up
Empty and dry the water chamber before transporting.
CAUTION– The height of the system must always be lower than the interface mask during use
to prevent water from getting into the CPAP mask.
SET UP
Unpacking The Contents
The following items are included in your Heated Humidifier
system:

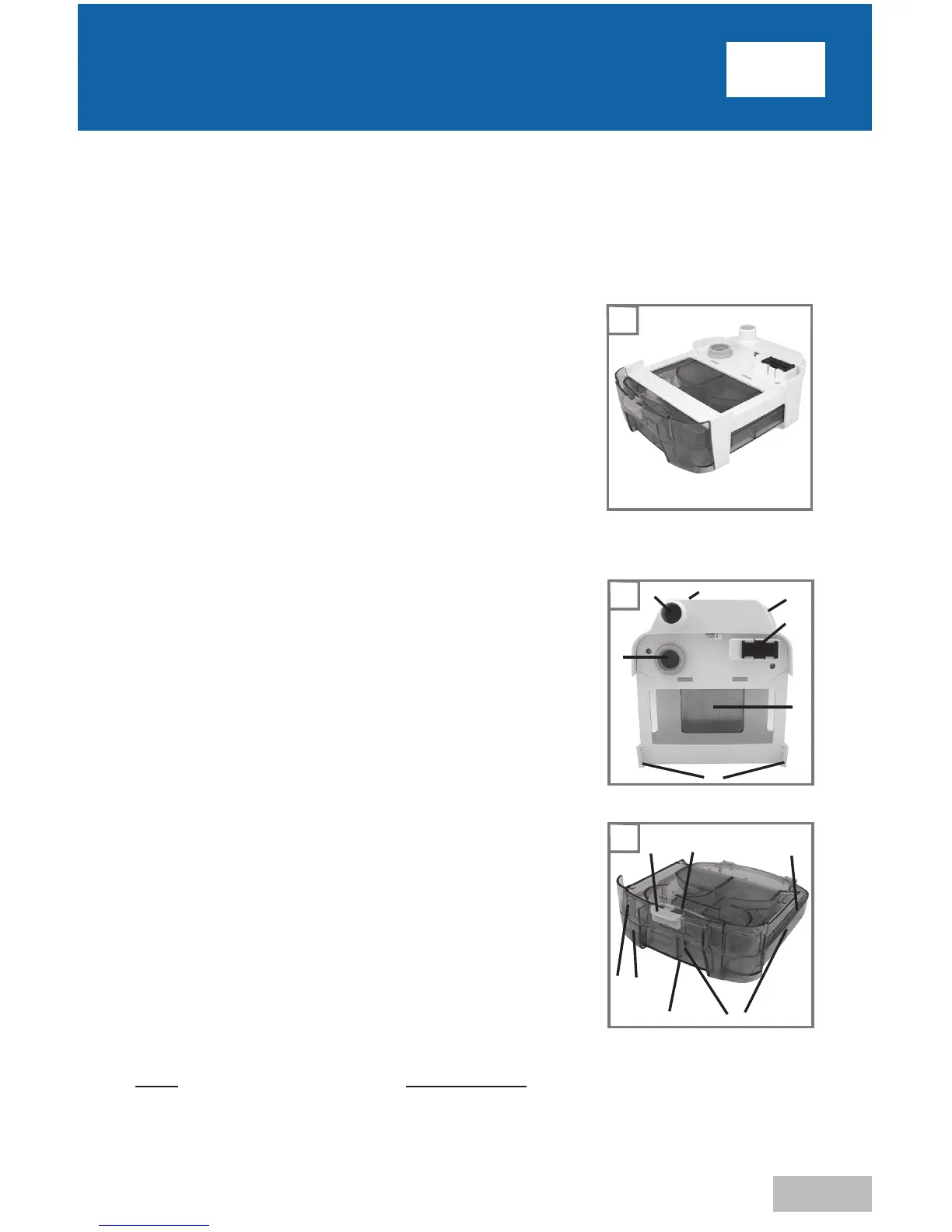

1. Humidifier Cradle with Water Chamber (Figure A)
2. User Manual
NOTE-
Please contact your home care provider if any of the above items
are missing.
Important Parts Of Your Integrated
Humidifier/Heater
Humidifier Cradle (Figure B)
1. Heater plate
2. Heater power connector
3. Storage compartment for heater power connector soft
cover (on bottom)
4. Air supply port inlet
5. Air supply port outlet
6. Flow generator release button
7. Flow generator locking tabs
Water Chamber (Figure C)
1. Chamber lid
2. Chamber base
3. Heat transfer plate (on bottom)
4. Sealing gasket
5. Water level indicators (front and sides)
6. Chamber release latch
7. Chamber disassembly lever
Replacement Items
Item Part Number
Humidification System ....................... DV5HH
Humidifier Chamber ......................... DV5C
Chamber Sealing Gasket ...................DV5C-614
A
B
2
3(bottom)
6
1
4
5
7
C
5
1
4
2
6
3(bottom)
7
