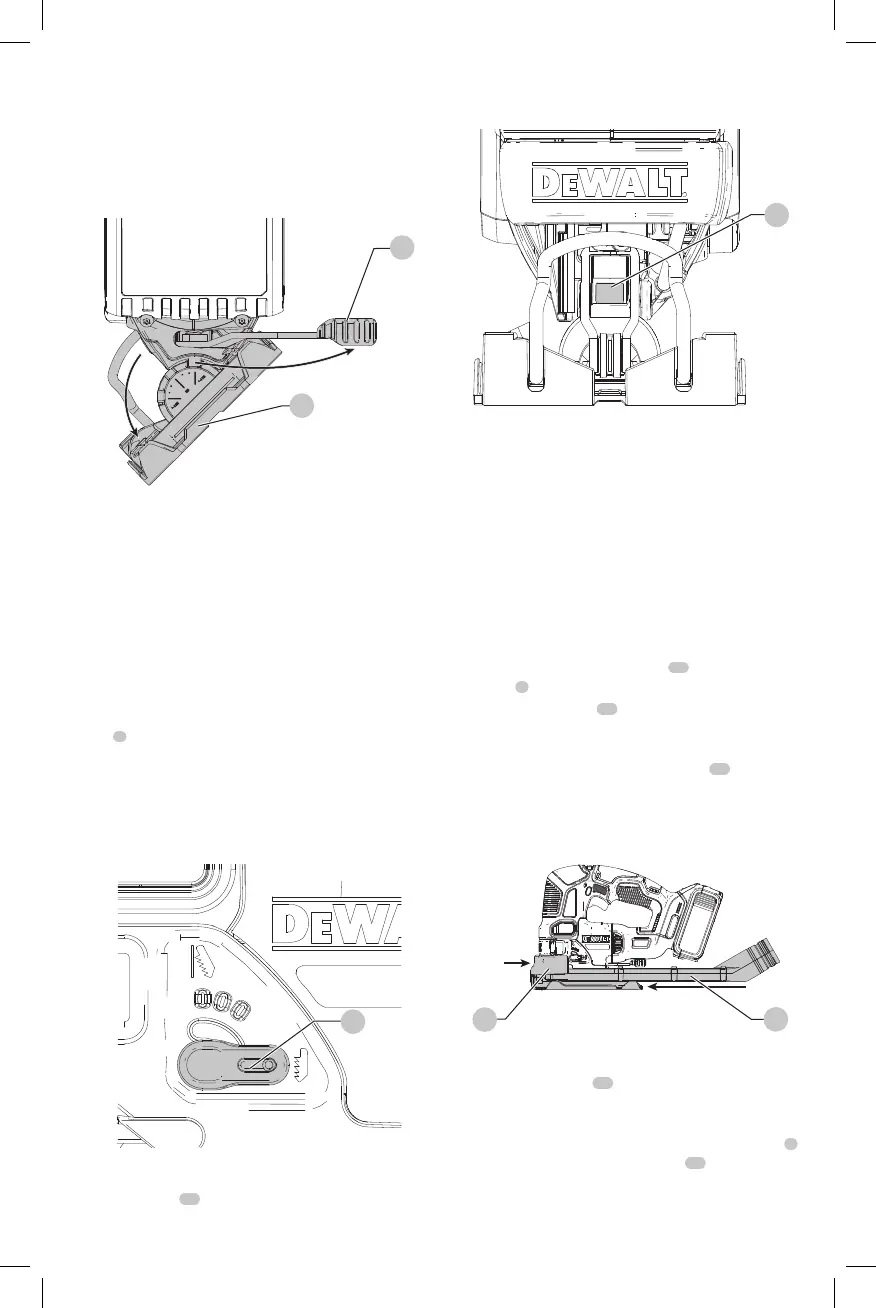

ENGLISH
9
a. For 0° and 45° bevel angles, slide the shoe back and
lock the shoe by moving the shoe bevel lever back
under the body of the jig saw.
b. For all angles between 0° and 45°, lock with bevel
leveronly.
Fig. E
8
7
Cutting Action—Orbital or Straight (Fig. F)
This jig saw is equipped with four cutting actions, three
orbital and one straight. Orbital action has a more
aggressive blade motion and is designed for cutting in soft
materials like wood or plastic. Orbital action provides a faster
cut, but with a less smooth cut across the material. In orbital
action, the blade moves forward during the cutting stroke in
addition to the up and downmotion.
NOTE: Metal or hardwoods should never be cut in
orbitalaction.
To adjust the cutting action, move the orbital action
lever
6
between the four cutting positions: 0, 1, 2, and 3.
Position 0 is straight cutting. Positions 1, 2, and 3 are orbital
cutting. The aggressiveness of the cut increases as the lever
is adjusted from one to three, with three being the most
aggressivecut.
6
Fig. F
Dust Blower (Fig. G)
The dust blower
18
helps clear the cutting area of debris
created from theblade.
Fig. G
18
Dust Extraction (Fig. A, H)
Optional Accessory
NOTE: Recommended accessories for use with your tool
are available at extra cost from an authorized
servicecenter.
The dust extraction chute in combination with the
dust extraction shroud helps extract dust from the
workpiece surface, when connected to a suitable dust
extractionsystem.
NOTE: The tool will not bevel if the dust extraction
accessories are attached to thetool.
1. Place the dust extraction shroud
14
onto the finger
guard
5
(Fig. A) until it clicks intoplace.
2. Slide the dust chute
15
from the back of the tool until
it snaps into the dust shroud. Be sure the adapter end
is facingup.
3. To connect a vacuum to the dust chute
15
, place a
quick connector (DWV9000), found on all full
size
vacuum hoses, over the dust collection
port, and twist the collar to lock it intoplace.
14
15
Fig. H
Removeable No-Mar Shoe Cover (Fig. I)
The no-mar shoe cover
16
should be used when cutting
surfaces that scratch easily, such as laminate, veneer
orpaint.
To attach no-mar shoe cover, place the front of the shoe
7
into the front of the no-mar shoe cover
16
and lower the
jig saw. The no-mar shoe will click securely onto the rear of
theshoe.
