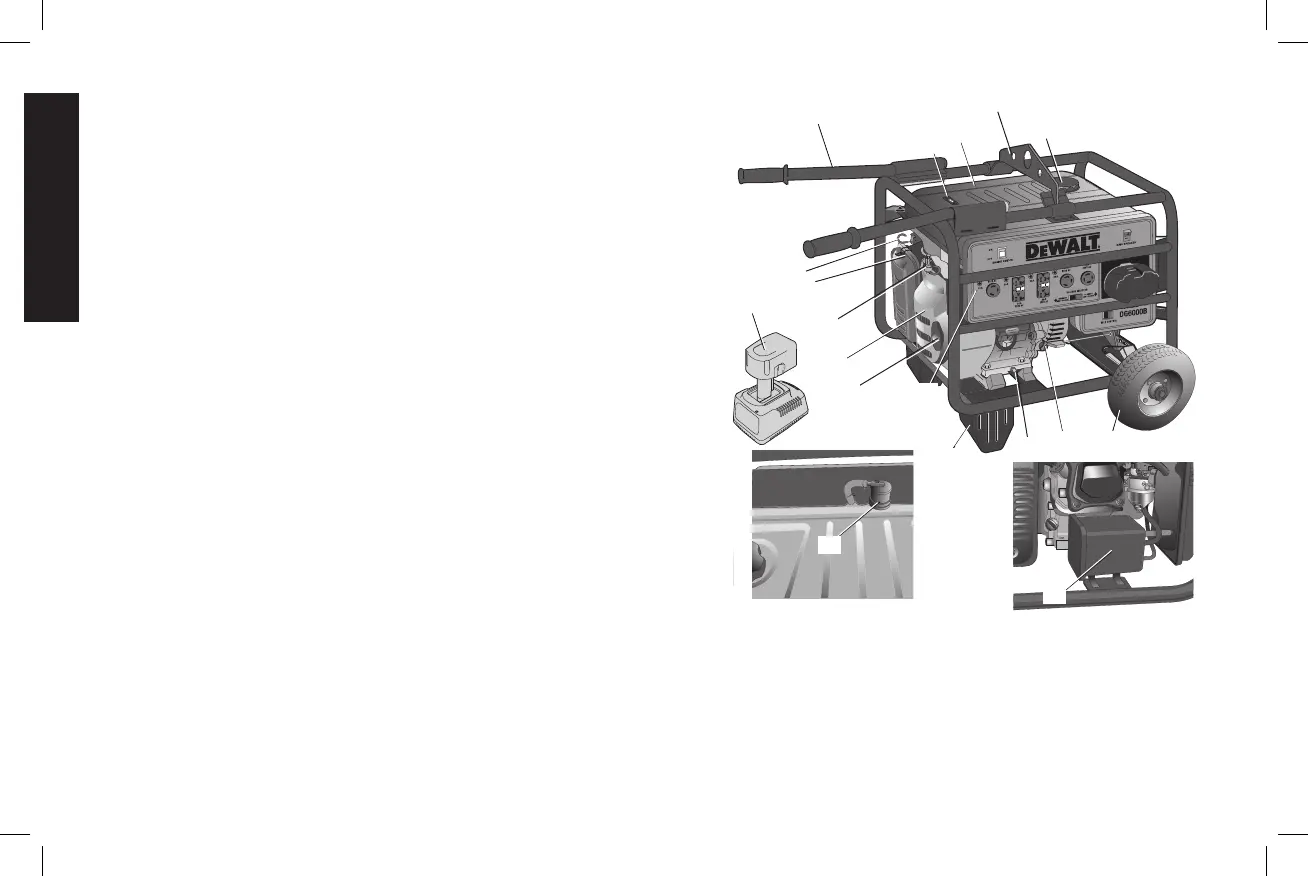

A. Wheel and handle kit (DG4400B, DG4400BC, DG6300B,
DG6300BC, DG7000B, DG7000BC)
B. D
eWALT engine
C. Lifting hook (included in A)
(DG4400B, DG4400BC, DG6300B, DG6300BC, DG7000B,
DG7000BC)
D. Control panel, see Fig. 2 for individual model's control panel
E. Air filter
F. 18V D
eWALT battery pack and charger
(DG4400B, DG4400BC, DG6300B, DG6300BC, DG7000B,
DG7000BC)
G. Fuel cap
H. Fuel tank
I. Fuel gauge
J. Choke control
K. Fuel shut-off valve
L. Recoil pull starter
M. Oil fill/dipstick
N. Oil drain plug
O. Carbon canister (if equipped)
P. Roll over valve (if equipped)
A
FIG. 1
C
D
E
B
F
G
H
I
J
K
L
A
A
M
N
O
P
